Raspberry Pi 3 Wide Camera

Raspberry Pi Camera 3 Wide

Raspberry Pi Camera 3 Introducing the latest member of the Raspberry Pi camera family, featuring a large new 12 megapixel Sony IMX708 image sensor, enhanced low light sensitivity, autofocus and HDR support! There is a 75° lens for a standard photo and video, but thanks to the 120° lens, it is also possible to take a wide-angle shot. It also offers multiple options for your project requests, especially for you. In this way, you will be able to make your project the way you think! The module has 4608 x 2592 pixel image and 4608 x 2592 @14 FPS/2304 x 1296 @56 FPS/1536x864 @120FPS video with 4608 x 2592 pixel image and 2304 x 1296 @ 30 FPS when downloaded when HDR is enabled. As with the previous generation, this camera is also available in a possessive-sensitive NoIR version for night photography.

If you want to use it with Raspberry Pi 5, you can choose the Raspberry Pi Camera Cable Standard - Mini - 200mm product.

Raspberry Pi Camera 3 Wide Compatible Accessories:



Raspberry Pi Camera 3 Wide, sensor part mechanically same as previous version V2. However, the new sensor is larger and may not fit all camera models from the previous version.



Raspberry Pi Camera 3 Wide Compatible Boards:

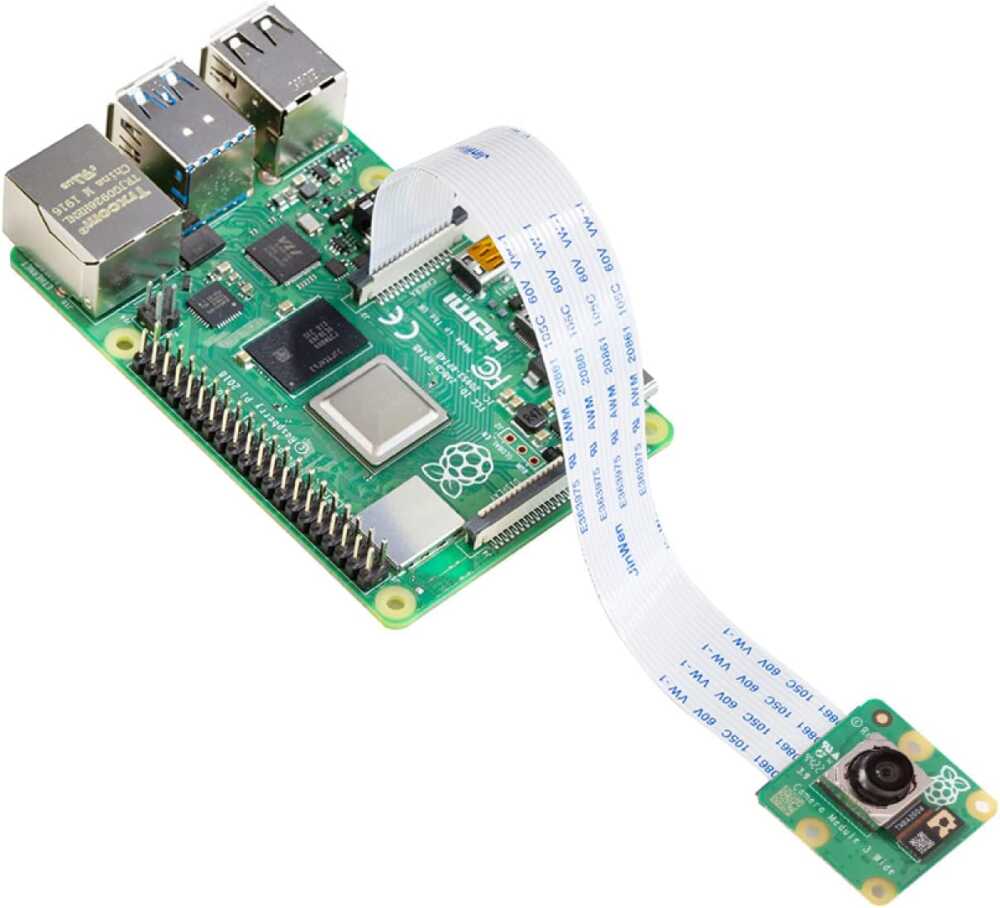

Raspberry Pi Camera 3 Wide is compatible with all Raspberry Pi boards with camera lane (CSI gateway).



Raspberry Pi Camera 3 Wide Compatible Software:



Raspberry Pi Camera 3 Wide can only be used with libcamera. You also need to update Raspberry Pi OS from a new driver and specific libcamera version.



Raspberry Pi Camera 3 Wide Technical Specifications:



• Image Sensor: Sony IMX708
• Megapixels: 12
• Resolution: 11.9 Megapixels
• High Signal to Aspect Ratio (SNR)
• Built-in 2D Dynamic Fine Pixel Correction (DPC)
• Fast Autofocus and Phase Detection Autofocus (PDAF)
• HDR Mode (Up to 3 Megapixel Output Advantage)
• CSI - 2 Serial Data Outputs
• 2-Wire Serial Communication (Supports 12C Fast Mode and Fast Mode Plus.)
• 2-Wire Series Control of Focus Mechanism
• Horizontal / Vertical Pixel Size: 4608 x 2592
• Common Video Modes: 1080p50 / 720p100 / 480p120
• Output: RAW10
• IR Cut Filter: Not Available (NoIR)
• Autofocus System: Phase Detection Autofocus
• Pixel Length: 1.4 x 1.4 um
• Sensor Size: 7.4mm
• Product Size: 25 x 24 x 11.5mm
• Ribbon Cable Length: 150 mm
• Cable Connector: 15 x 1 mm FPC



Raspberry Pi Camera 3 Wide Lens Features:



• Standard:
  • Effective Focal Length: 4.74 mm
  • Aperture: 1.8
  • Diagonal Field of View: 75°
  • 35mm focal length roughly 28mm (full width) / 30mm (3:2 detection)
  • Focus: 10 cm - infinity
• Wide:
  • Effective Focal Length: 2.75mm
  • Aperture: 2.2
  • Cross Field of View: 120°
  • 35mm focal length roughly 16mm (full width) / 18mm (3:2 detection)
  • Focus: 5 cm - infinity
