FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M-FB with Position Feedback

Brand
Robotistan
Product Code
19326
Motor Tipi
Servo Motor
Çalışma Voltajı
6-7.4V/DC
Çalışma Hızı
0.12 sn/60°
Ağrılık
180gr
Fiyat
: 1,196.60 TL + VAT
KDV Dahil Fiyat
: 1,435.92 TL

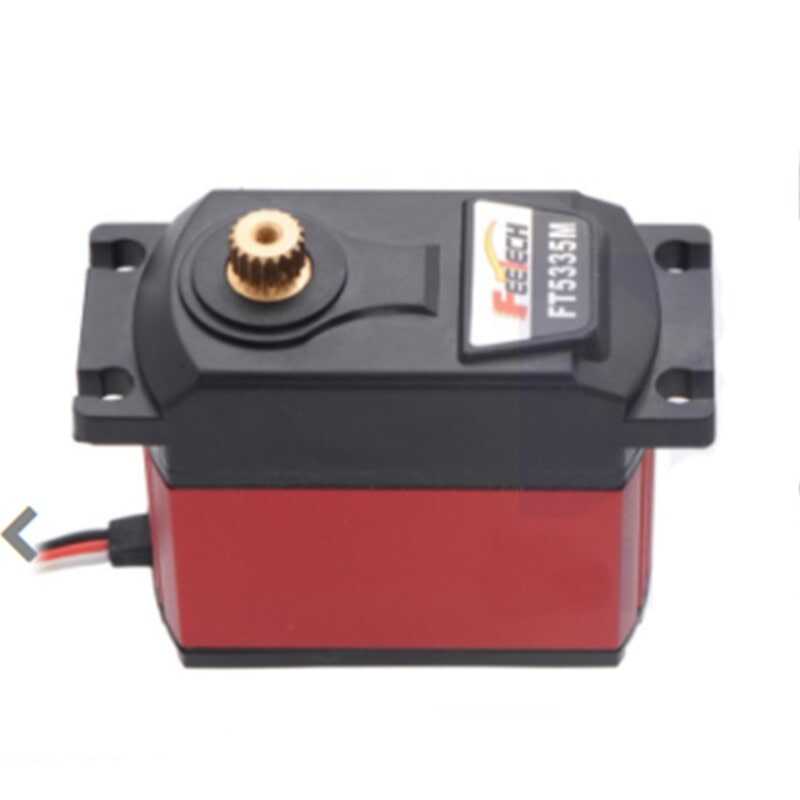

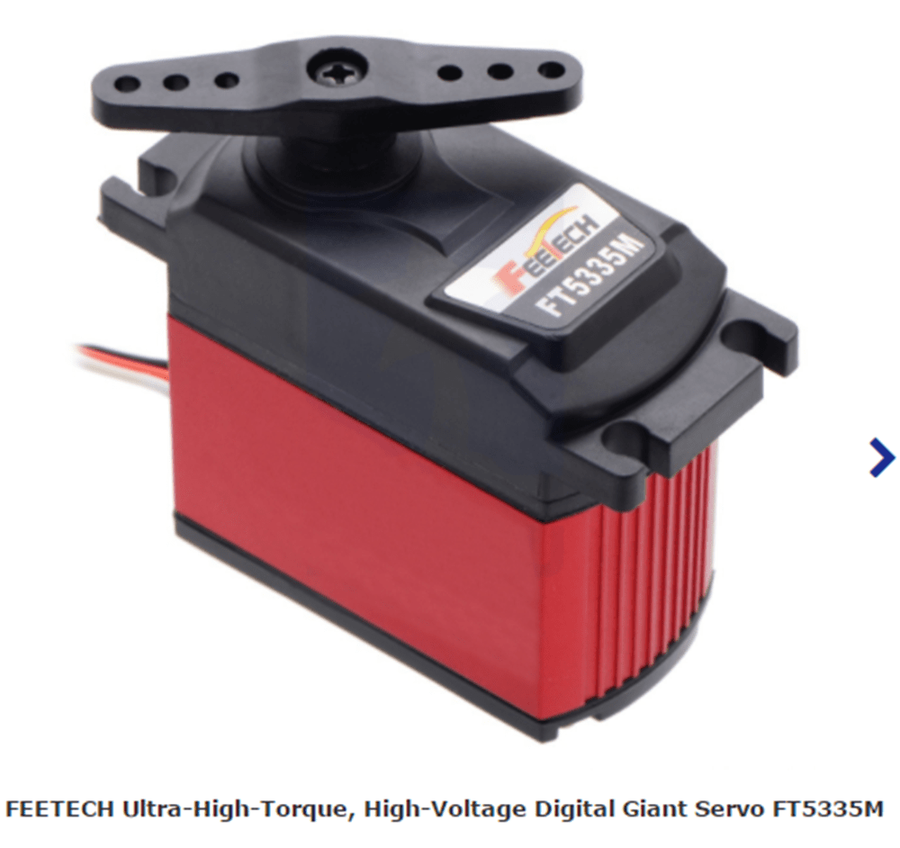

FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M-FB with Position Feedback

This giant-scale digital servo can deliver twice the torque of our strongest standard-size servo, offering up to 550 oz-in at 7.4V or 480 oz-in at 6 V. This torque requires significant power: the FT5335M can draw bursts of current over 9 A at 7.4 V, and unlike typical hobby servos, has an operating voltage range of 6 V to 7.4 V.

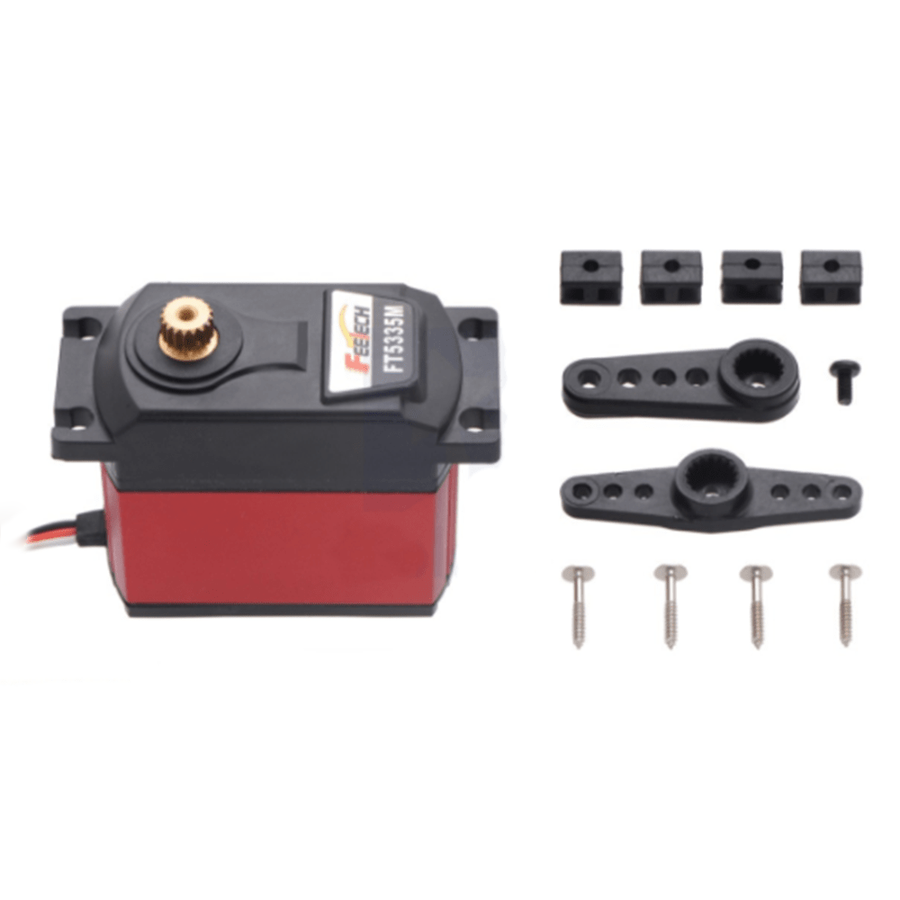

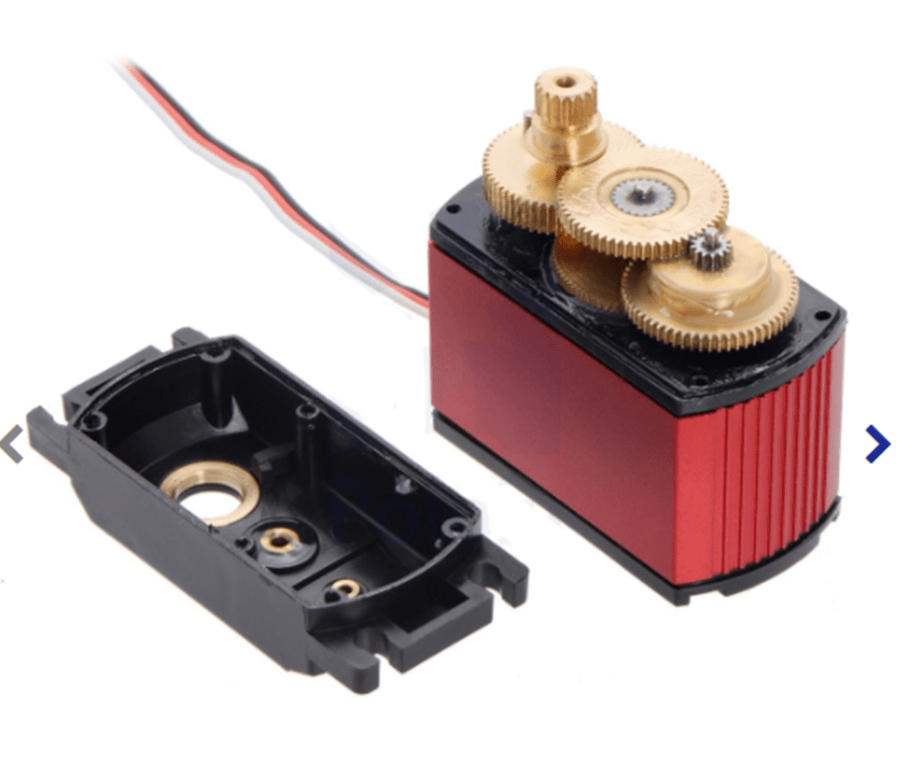

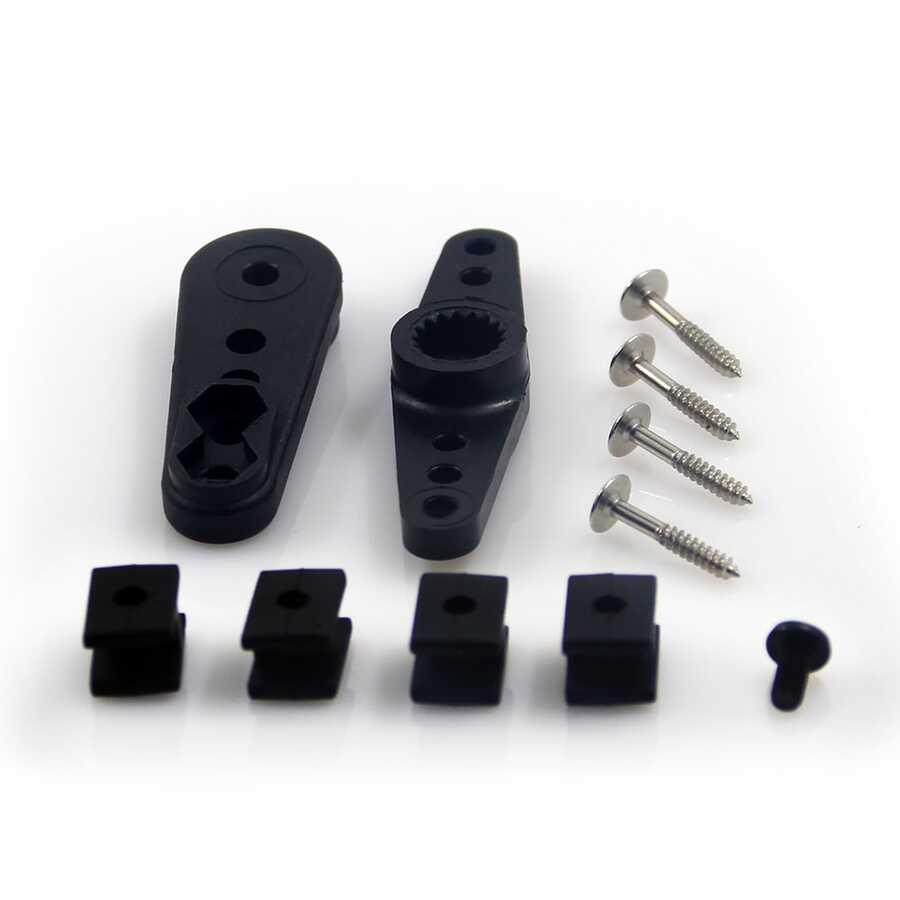

The FEETECH FT5335M servo is all about torque. This 1/4-scale digital servo can deliver an incredible 550 oz-in of torque at 7.4 V or 480 oz-in at 6 V thanks to its powerful motor and all-metal gear train. The FT5335M is a high-voltage servo, offering an operating voltage range of 6 V to 7.4 V. Servo horns and associated hardware are included.

Size: 62.8 × 32.5 × 55.9 mm
Weight: 180 g

General Specifications:

Digital: Y
Speed @ 6V: 0.20 sec/60°
Stall torque @ 6V: 35 kg·cm
Speed @ 7.4V: 0.18 sec/60°
Stall torque @ 7.4V: 40 kg·cm
Lead length: 12 in
Hardware included: Y

Features
Speed
> 0.12 sec/60°
Rotation
Standart
Operating Voltage
7.4V and above
Digital/Analog
Digital
Torque
16-50 kg/cm
Gear Type
Metal
