RepRap Ramps 1.4 Compatible 128x64 Full Graphic Smart

This RepRap Ramps compatible 128x64 pixel graphic LCD display kit is a smart controller board to pick the file that is going to be printed and to do calibrations by requiring no computers. You can do calibrations as well as choose the file to be printed. This means you can use your 3D printer independently from your computer.

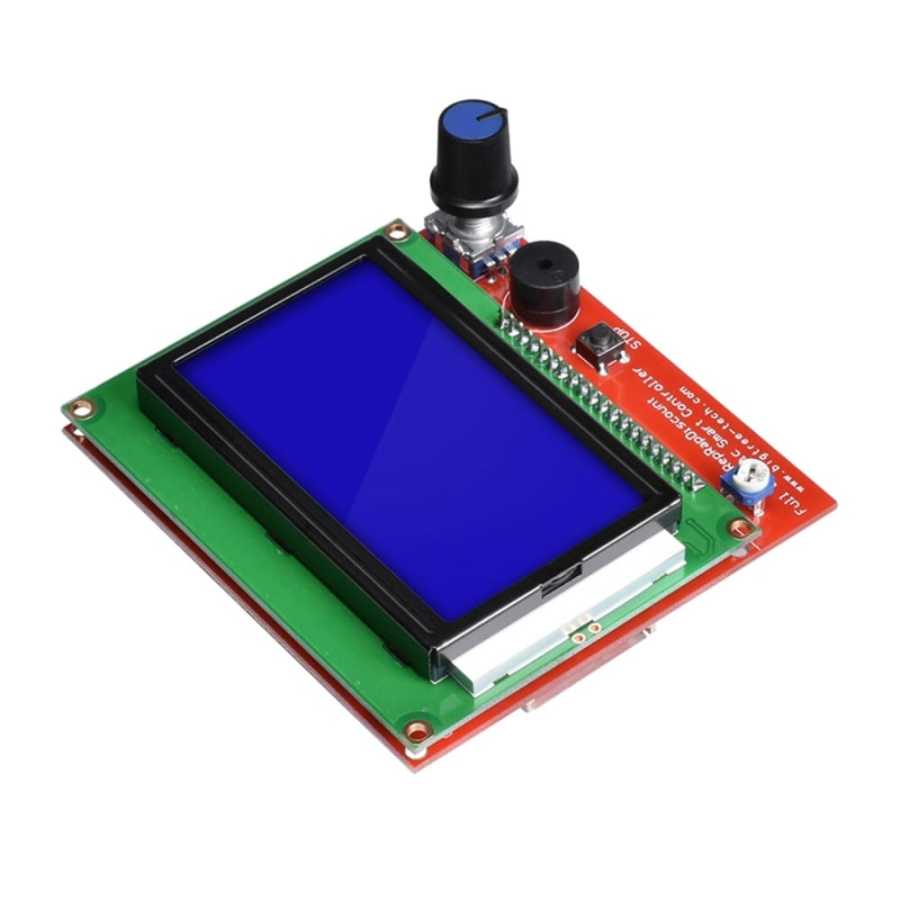

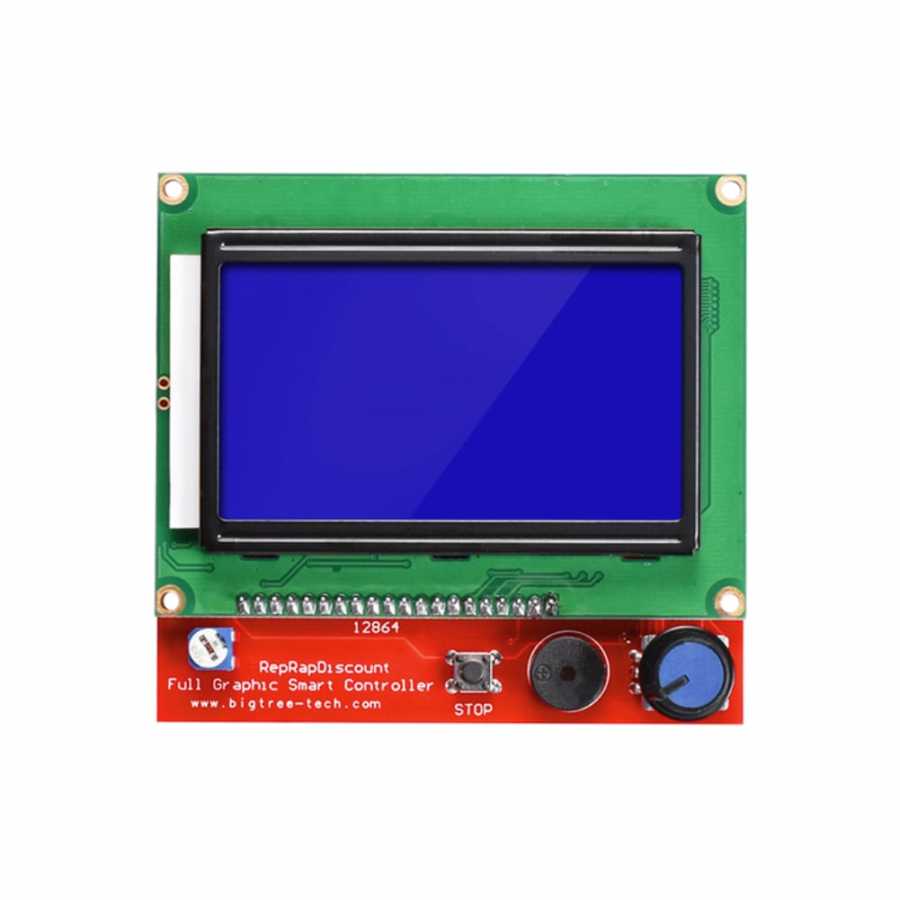

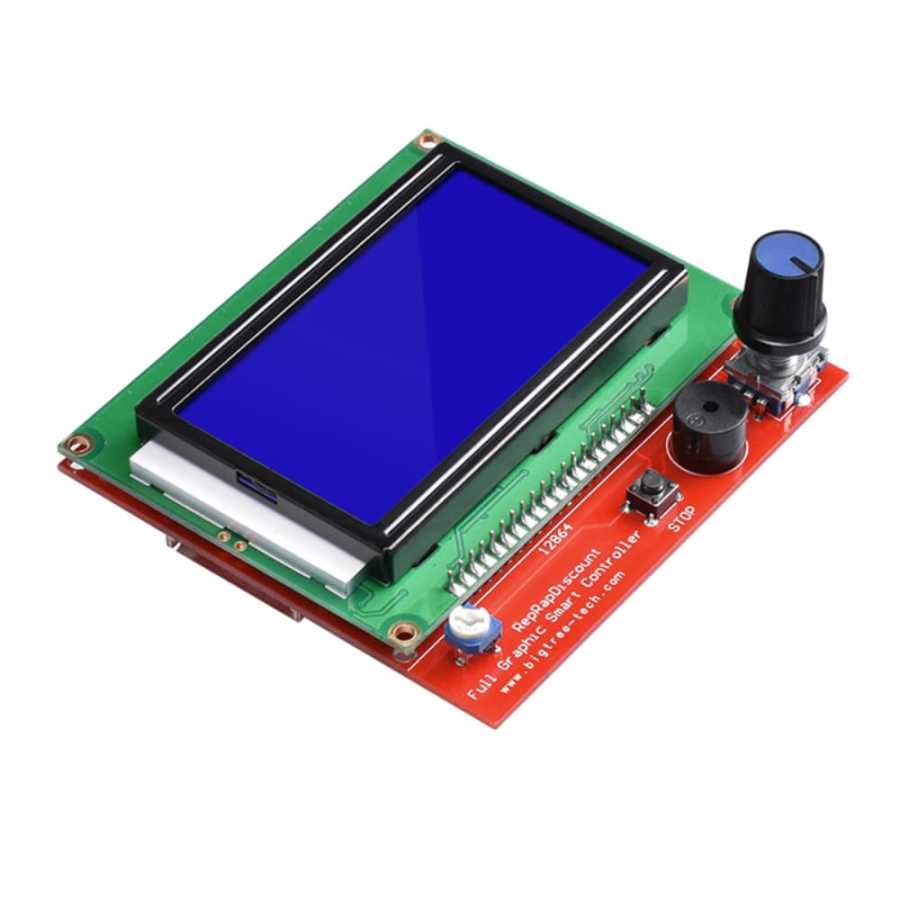

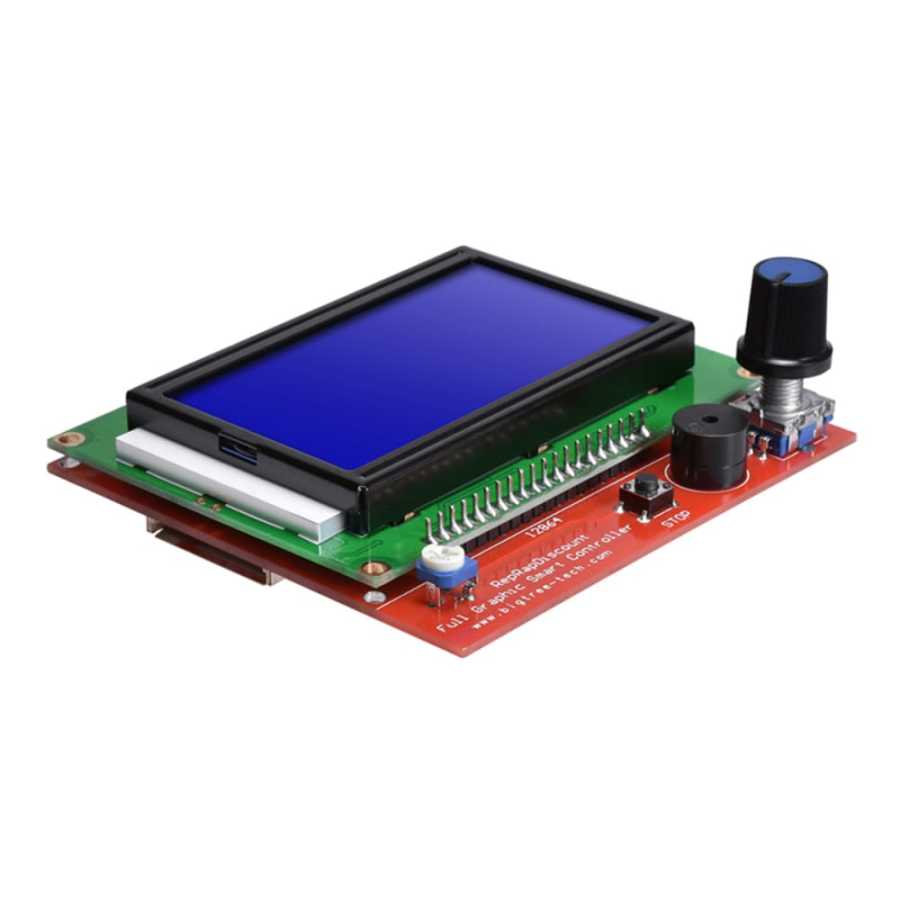

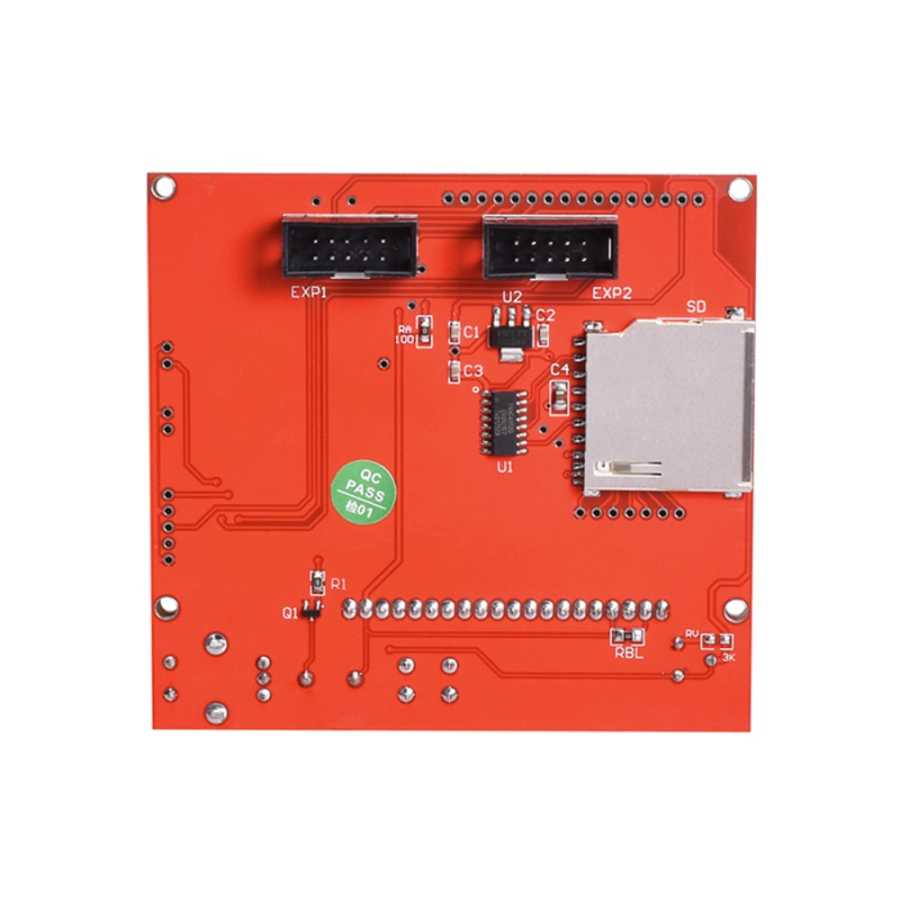

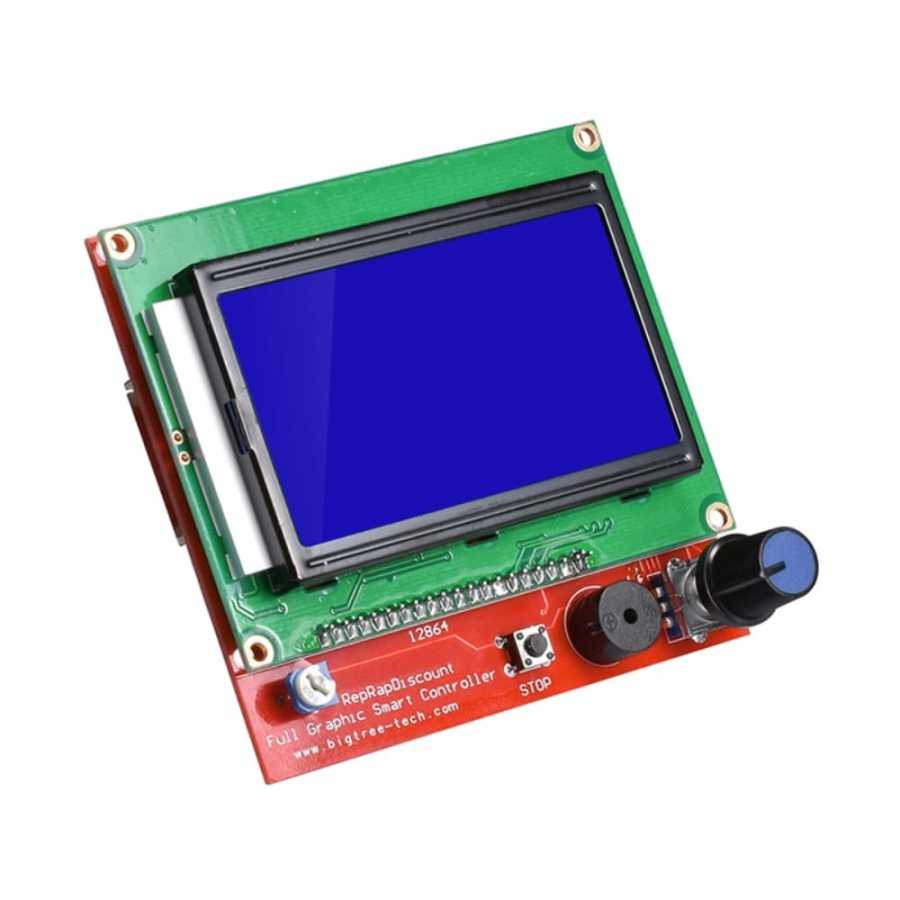

There is a 128x64 character (white characters on a blue basement) LCD screen, a potentiometer to switch the menu (it is also used as a button), a button to stop, buzzer for warning, a trimpot to adjust the contrast of the LCD screen and an SD card plug on the board.

The Interconnection Module and the interconnect cable are required to connect this LCD Board to the Ramps 1.4 Board.

The video is on introductory basis. Properties and kit includes of the product are specified on the product page.

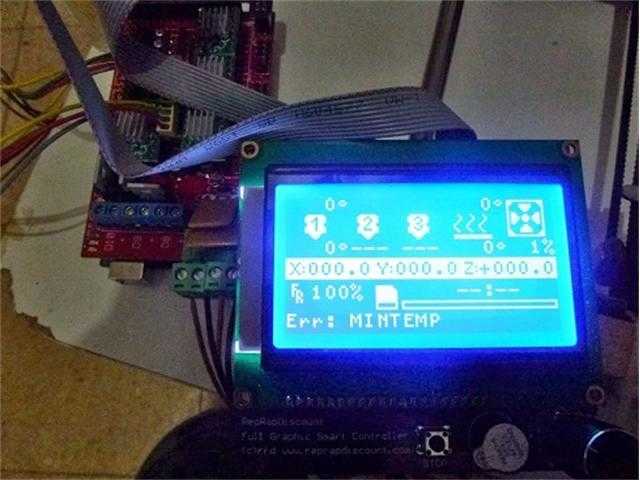

You can use this board to do all the calibrations and 3D printings from SD card in g-code requiring no computers.

Kit includes:

• 1 x Smart Controller (128x64 graphic LCD board)

The product does not include SD card and Ramps 1.4.

Documents:

• Click here to find a detailed information about the board, example applications and codes.
