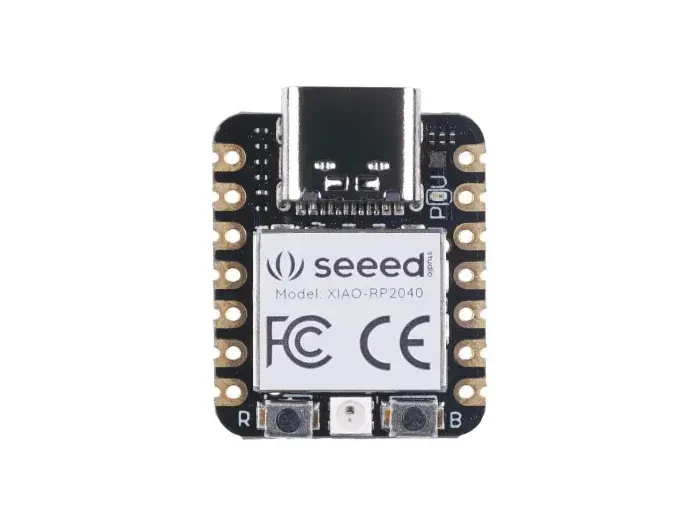

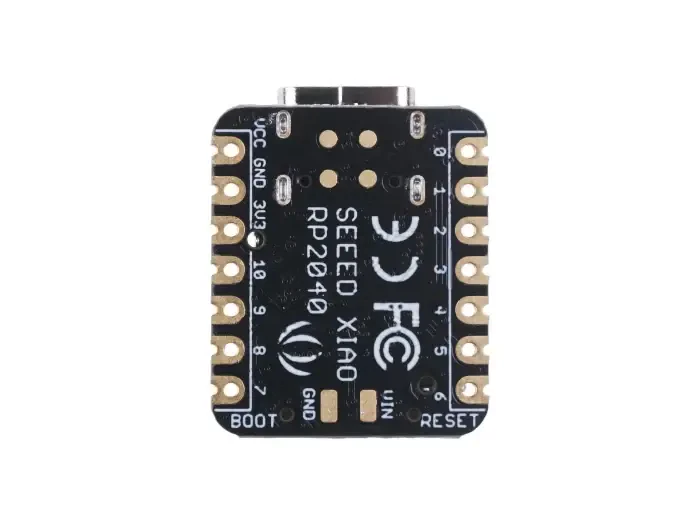

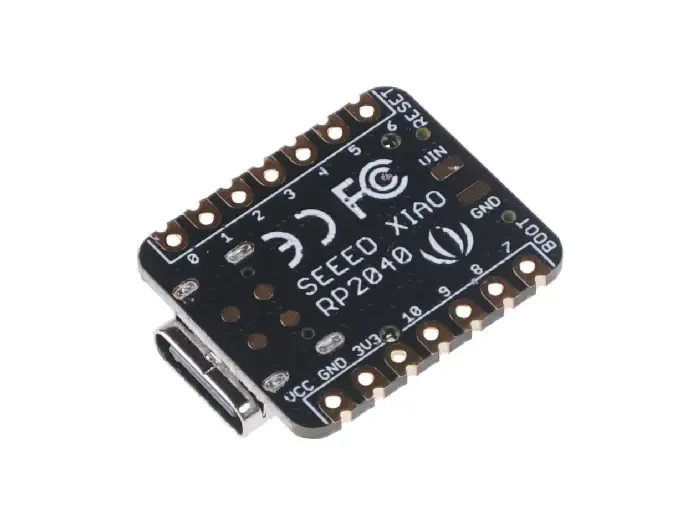

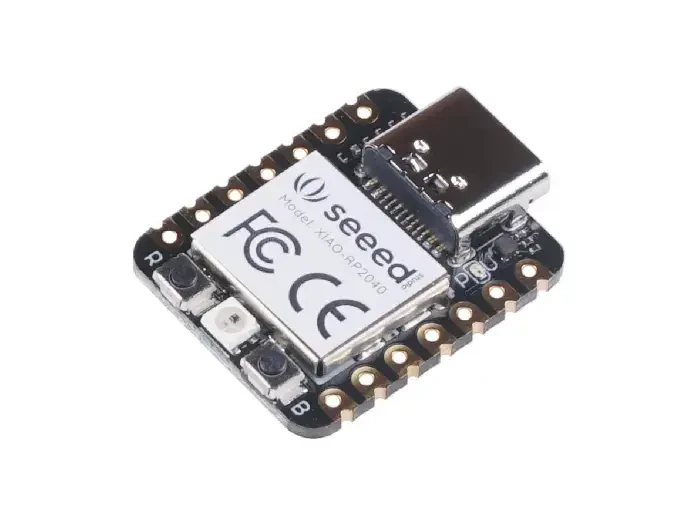

Seeed Studio XIAO RP2040 Development Board
The Seeed Studio XIAO Series are tiny development boards that share a similar hardware structure, literally the size of a finger. The codename "XIAO" here represents half of the "Tiny" feature and the other half will be "Puissant". Seeed Studio XIAO RP2040 is compatible with the Raspberry Pi RP2040 ecosystem as they share the same RP2040 chip. It supports many languages, including C / MicroPython / CircuitPython. This will be a great tool to get you started with MicroPython.
Seed Studio XIAO RP2040 Development Board Technical Specifications:
|
CPU |
Dual core ARM Cortex M0+ processor, flexible clock up to 133 MHz |
|
Storage |
264KB SRAM and 2MB onboard Flash memory |
|
I/O PINs |
11 digital pins, 4 analog pins, 11 PWM Pins
|
|
Interface |
1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface |
Power Supply & Loading Interface
|
USB Type-C interface |
|
LEDs: |
1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED |
|
Button |
1 RESET button, 1 BOOT button |
Power Pads
|
Battery for Power Supply
|
Software Compatibility
|
Micropython / Arduino / CircuitPython Destei |
|
Cover |
Projection cover to protect the circuit
|

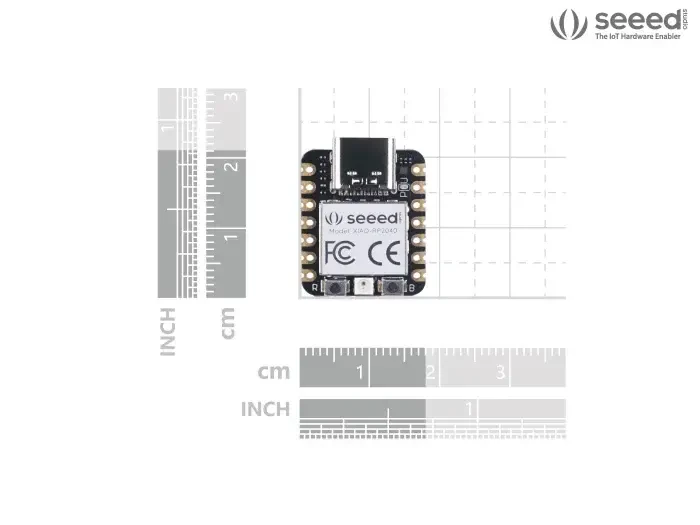

Dimension
|
21x17.5 mm |
