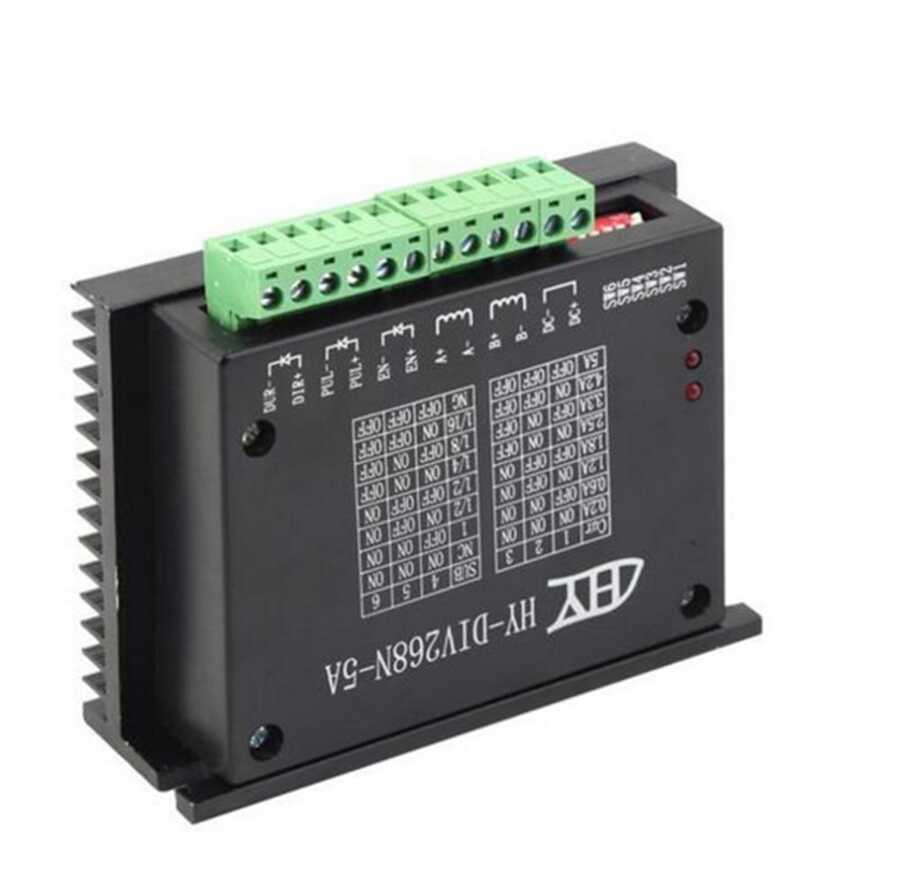

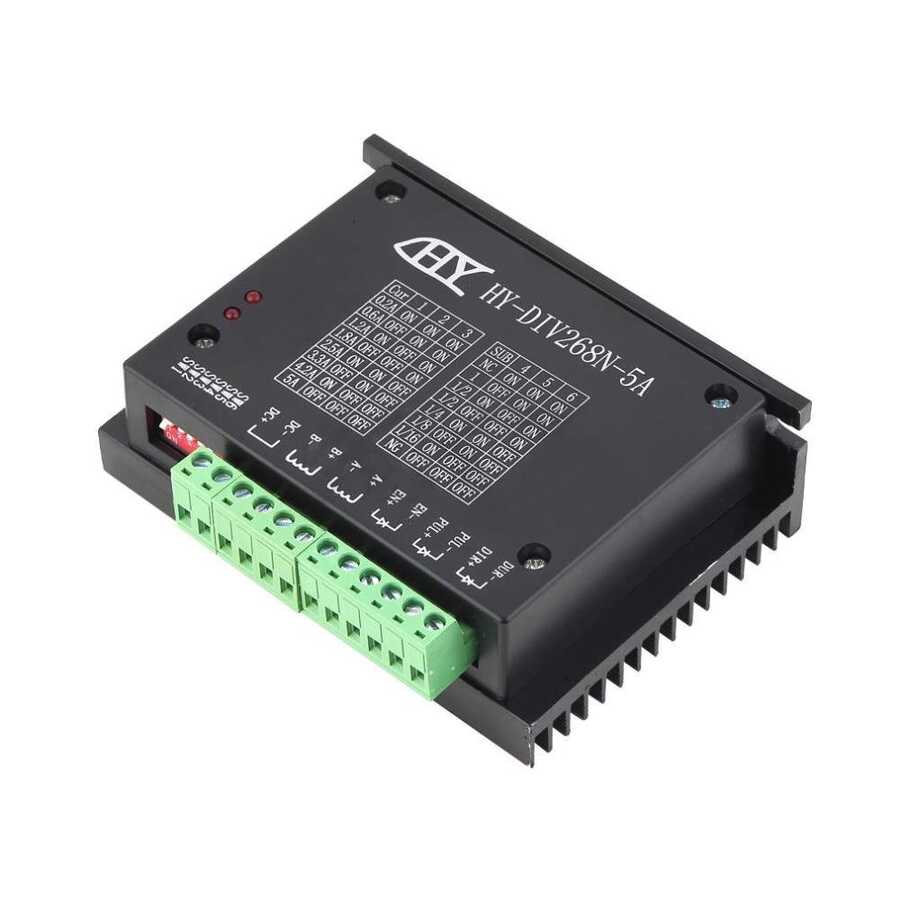

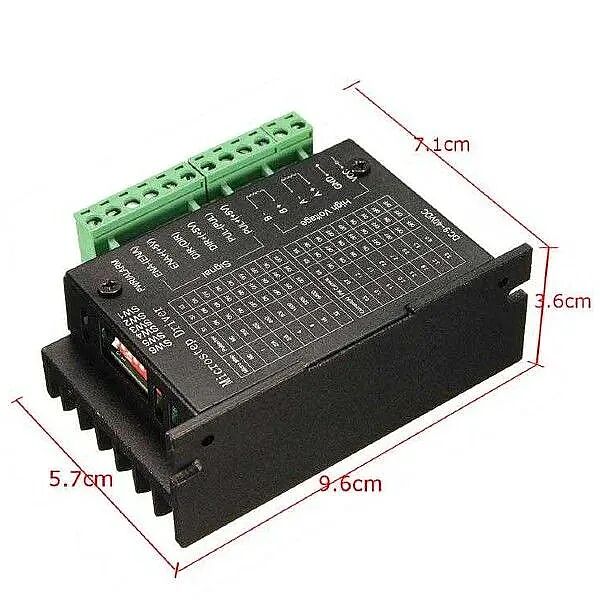

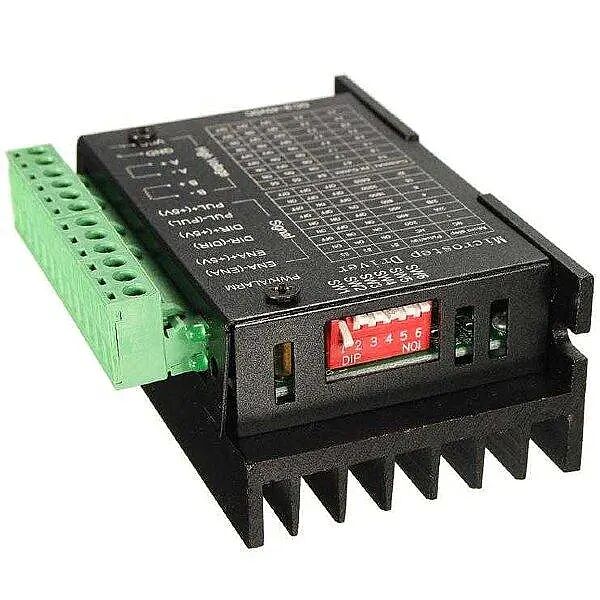

TB6600 0.2-5A CNC Controller ,Stepper Motor Driver Nema 17/23

TB6600 0.2-5A CNC Controller - Stepper Motor Driver Nema 17/23

TB6600 Step Motor Driver Card that you can use in your projects that require various step motors.

Package Included:

• 1 pcs  TB6600 stepper motor driver

Product Specifications:

• Automatic idle-current reduction
• Supply voltage up to 50V DC
• Output current up to 4.0A.
• Suitable for 2-phase and 4-phase motors.
• High speed optoelectronic isolation signal input.
• Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency.

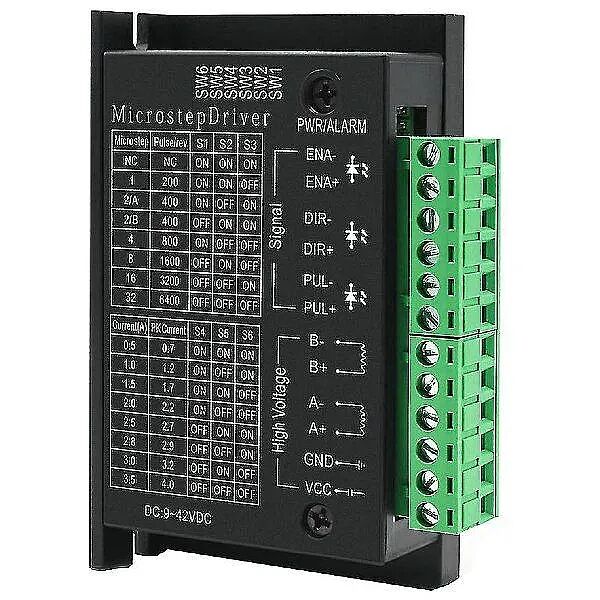

• 1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.
• Equipped with the 3rd generation of breakout board, display panel and control pad to control the motor manually.
• Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.

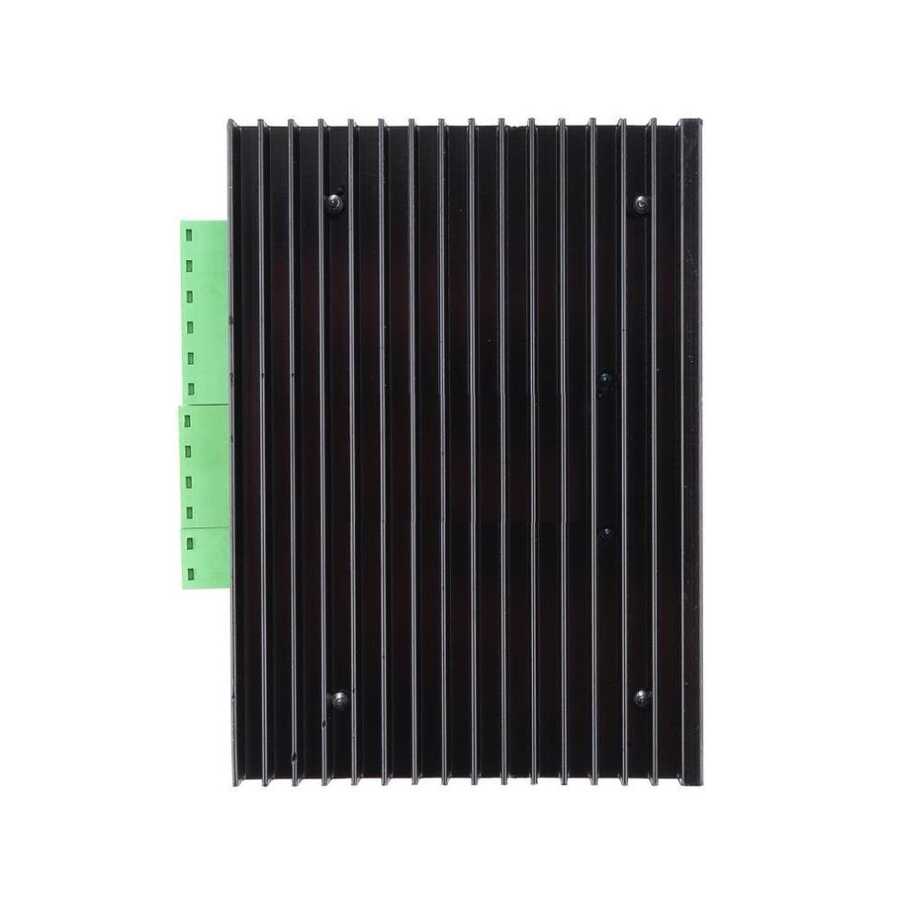

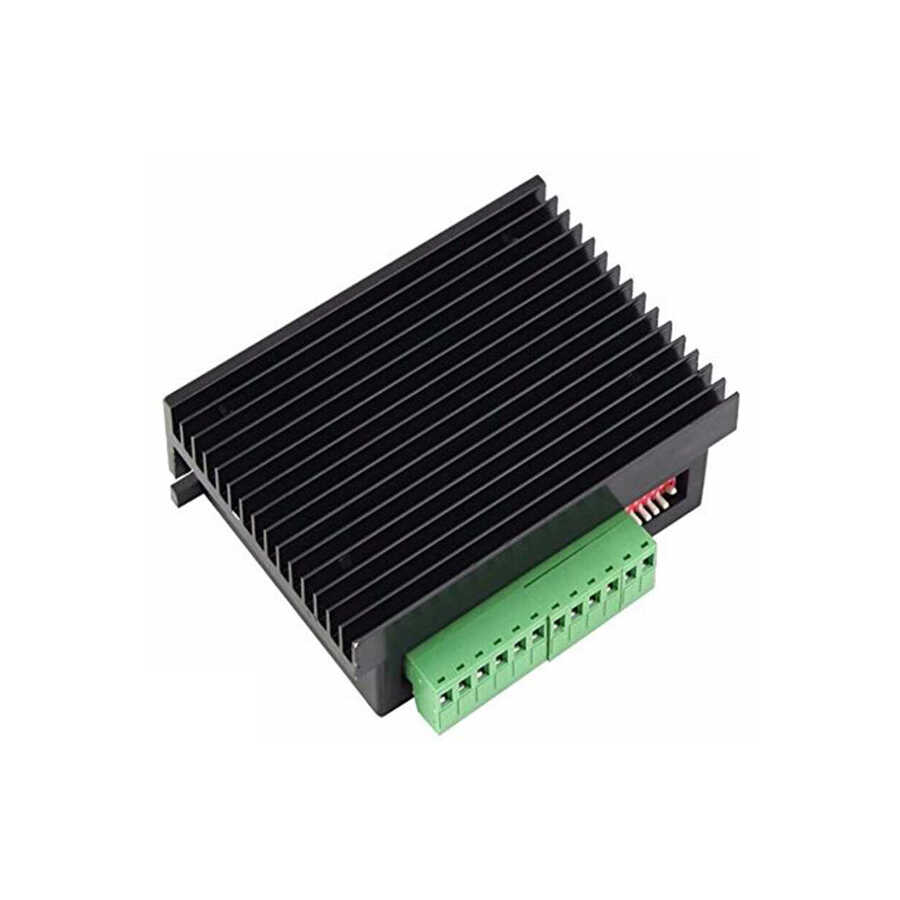

• Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.
• The TB1H is a high performance microstepping driver based on the latest original for TOSHIBA high-efficiency TB6600HG for IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency.
• Moreover, the brand new design with BiCD0.13 (50V) process technology on the chipset also ensures maximum 5.0A output current
• and 50V output withstand voltage.
• Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23,
• Nema24 and Nema34 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.
• Applications:
• For processing various pattern mould.
• For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc..
• For carving portrait, scenery, handwriting, sealing, etc..
• Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters,
• engraving machines, and pick-place devices.
• Color:black
