Sim800C GSM / GPRS Module
You will be able to realize your wireless communication projects thanks to the Sim800C GSM / GPRS Module, which you can use with development boards such as Arduino and Raspberry Pi. Sim800C GSM / GPRS Module, which can transfer data up to 85.6 kbps, is an LCC type quad-band GSM / GPRS module.
Technical Specifications:
- Frequency Bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 11/10

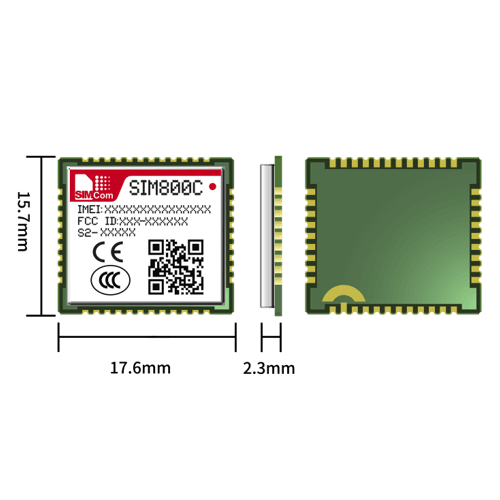

- Dimensions: 17.6*15.7*2.3mm
- Weight: 1.3±0.1g
- Supply voltage: 3.4 ~ 4.4V
- Operation temperature:-40℃ ~85℃
- Compliant GSM phase 2/2+: Class 4 (2W @ 850/900MHz)
- Compliant GSM phase 2/2+: Class 1 (1W @ 1800/1900MHz)
- Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)
- Low power consumption
- GPRS mobile station class B
