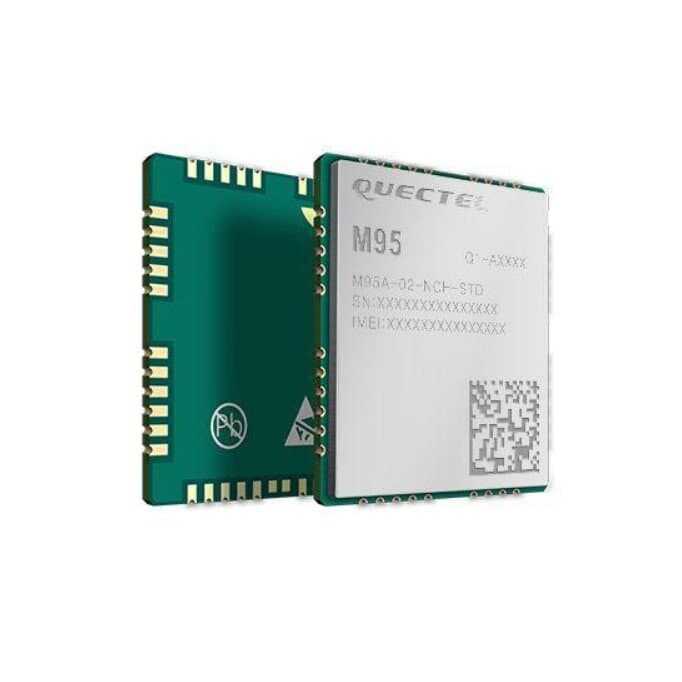

Quectel M95FA-03-STD GSM/GPRS Module

M95 is one of the most small four band GSM/GPRS modules which is produced by Quectel. It has LCC caged sheath and its dimensions are 19.9 × 23.6 × 2.65mm. This module has low power consumption and it can work in wide temperature ranges.

Due to low profile, it can be integrated easily into applications that have problems about lack of place. Because of internal QuecFOTA^TM technology, it has remote firmware update feature. Also SMS via GSM/GPRS, auido and data transmission can be performed easily and safely because of internal TCP/IP protocol support, serial multiplexer and advanced AT commands support. It can be used in many M2M (machine-to-machine) applications such as VTS, industrial PDA, presonal tracking, wireless POS and smart measuring.

Features:

• One of the smallest GSM/GPRS modules
• Easy soldering due to LCC sheath
• Internal A-B class aöp circuit
• Low power consumption (need low current up to 1.3mA)
• Embedded powerful internet service protocols, multi socket and IP addresses
• eCall / ERA-GLONASS support (use only specific firmware)
• QuecFOTA^TM
• Jammer detection
• DTMF decoding



Technical Features:

• Quad-band: 850/ 900/ 1800/ 1900MHz
• GPRS Multi-slot Class 12, 1~12 adjustable
• GPRS Mobile Station Class B
• Compatible with GSM Phase 2/2+ : Class 4 (2W @ 850/ 900 MHz), Class 1(1W @ 1800/1900MHz)
• Supply Voltage: 3.3~4.6V 4.0V nominal
• Low power consumption: 1.3mA @ DRX=5, 1.2mA @ DRX=9
• Operating temperature: in the range of -40 °C and +85 °C
• Dimensions: 19.9 × 23.6 × 2.65mm
• Weight (nearly): 3gr
• Supporting GSM 07.07 ,07.05 and other advanced AT commands
