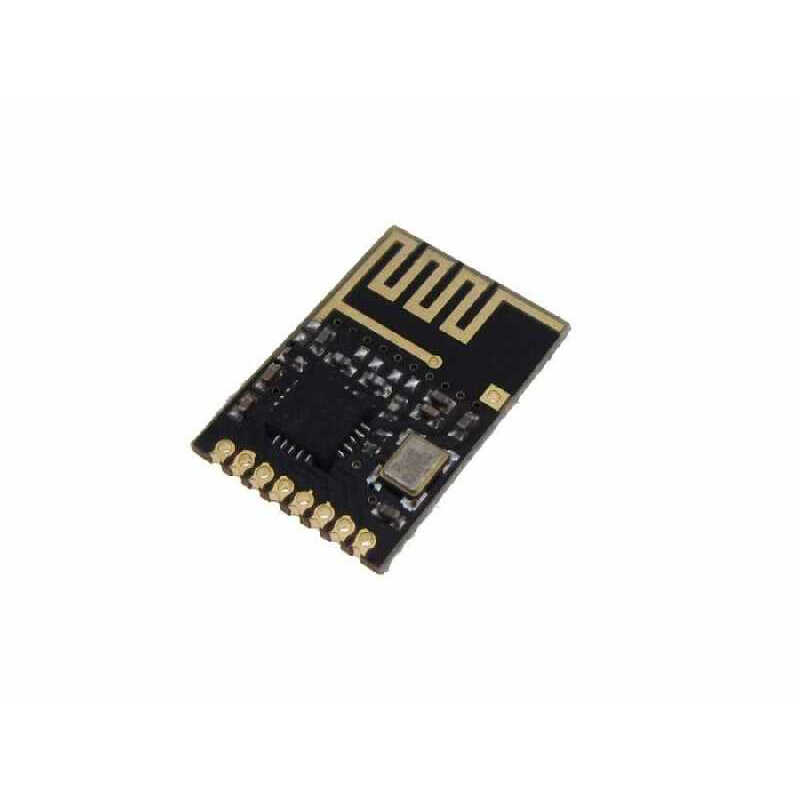

SMD NRF24L01 module
NRF24L01 wireless module which is deveopped by Nordic firm, is a module with low power consumption which gives you possibility to do wireless communication on 2.4GHz frequency.
It has 2MBps communication speed which can be used often in various hobby, robotic and industrial projects and it supports SPI interface.
This boards only difference from the one in this link is that its dimesions and it comes in SMD package. Therefore you can add it to your projects which you have difficulties with placement easily.SMD NRF24L01 Module Technical Specs:
- Broadcast can be done on 2.4GHz rate.
- Communication speed can be selected as 250KBps, 1MBps and 2MBps or such speeds like them.
- Supports Enhanced ShockBurst™ acceleration protocol.
- Ultra low power consumption
- Operating Voltage: 1.9-3.6V
- IO Ports' Operating Voltage:0-3.3V/5V
- Transmitter Signal Power: +7 dB
- Receiver Sensitivity ≤ 90dB
- Communication Distance: 250m in Open Field
- Dimensions: 12x18mm
