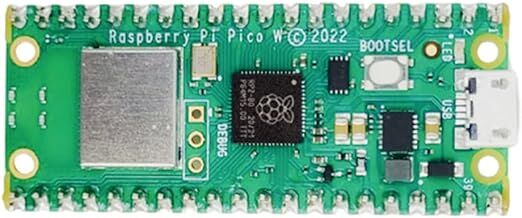

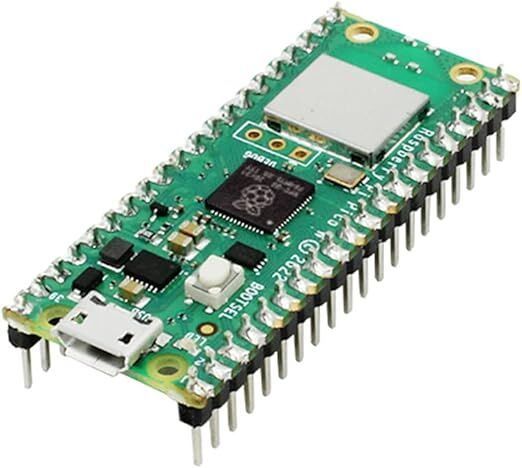

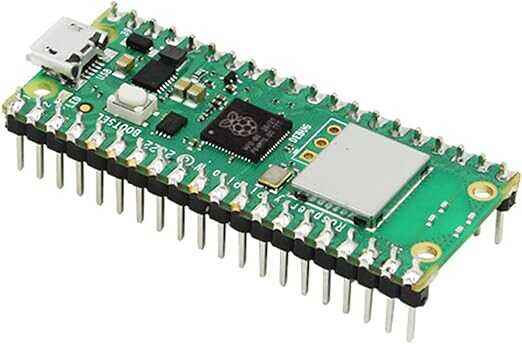

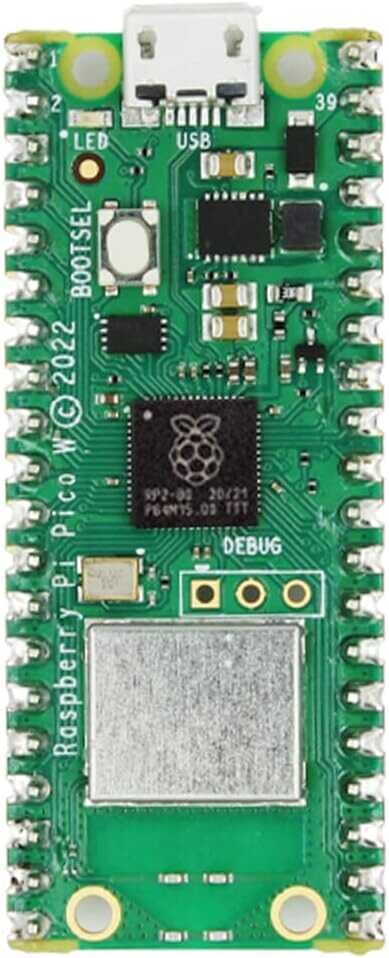

Soldered Raspberry Pi Pico W

Raspberry Pi Pico W - Soldered

Raspberry Pi Pico is a microcontroller that you can use in embedded system projects and prototyping. Powered by the RP2040 microcontroller, Raspberry Pi Pico has a dual-core ARM Cortex M0+ processor. The low-cost Raspberry Pi Pico stands out with its low power consumption and high performance. Programmable with both C/C++ and MicroPython, Raspberry Pi Pico appeals to users of all ages.

Raspberry Pi Pico Specifications:

• Dual-core ARM Cortex M0 + 133 MHz processor

• 264KB SRAM and 2MB onboard Flash memory

• USB 1.1

• Low power consumption and sleep mode

• 26 GPIO pins

• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

• Onboard timer and clock module

• Onboard temperature sensor

• 8 × Programmable I/O (PIO) for custom peripheral support

Faydalı Linkler:

• Raspberry Pi Pico W Datasheet
• Raspberry Pi Pico W Pinout
• RP2040 Datasheet

• Raspberry Pi Pico C/C++ SDK I Raspberry Pi Pico Python SDK
