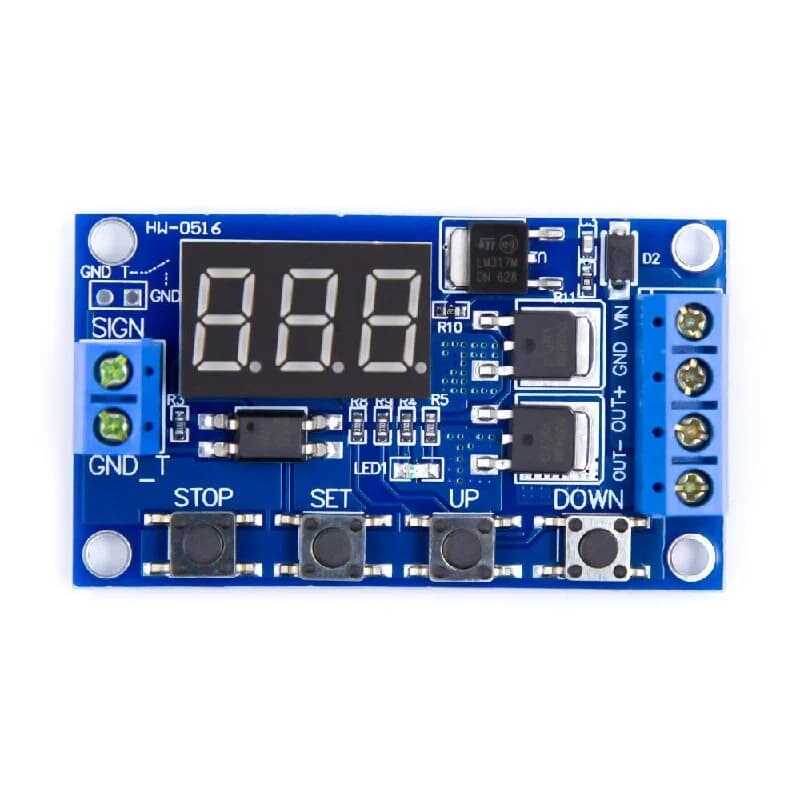

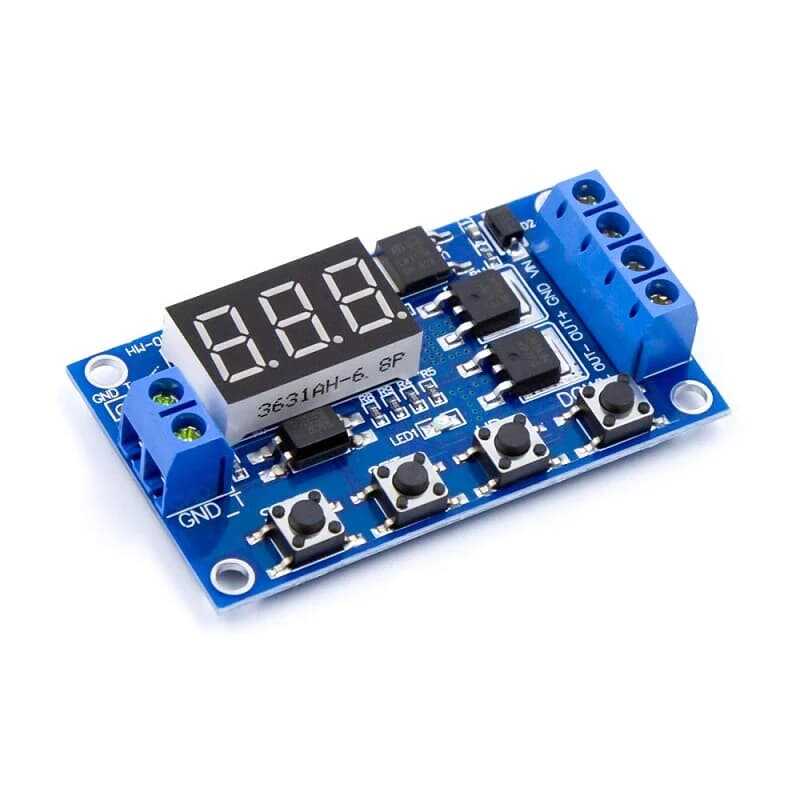

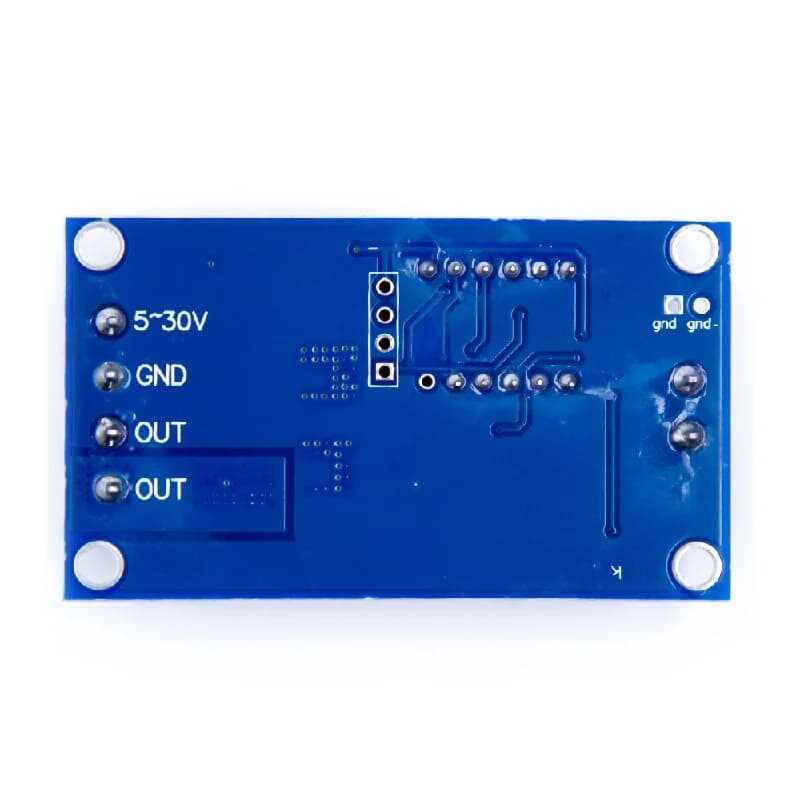

Timed Switching Board - With Mosfet

Timed Switching Card is a driver module that you can use just like a relay card in your projects where you need high current and high speed switching. With this card, which has a very wide operating range, you can control DC voltages up to 15A and 400W. Unlike the relay card, it also provides step-by-step control by connecting from the PWM output of your microcontroller. MOSFET, which is the trigger element in this card, provides faster, more stable and long-lasting use compared to relay cards, since it does not contain any mechanical parts.


Timed Switching Board Technical Specifications:

  • Operating Voltage: 5-36V/DC
  • Working Current: 50mA (Max.)
  • Output Power: 400W (Max)
  • Emergency "STOP" Key: YES
  • Sleep Mode: YES
  • Width: 60mm
  • Length: 35mm
  • Height: 13mm
