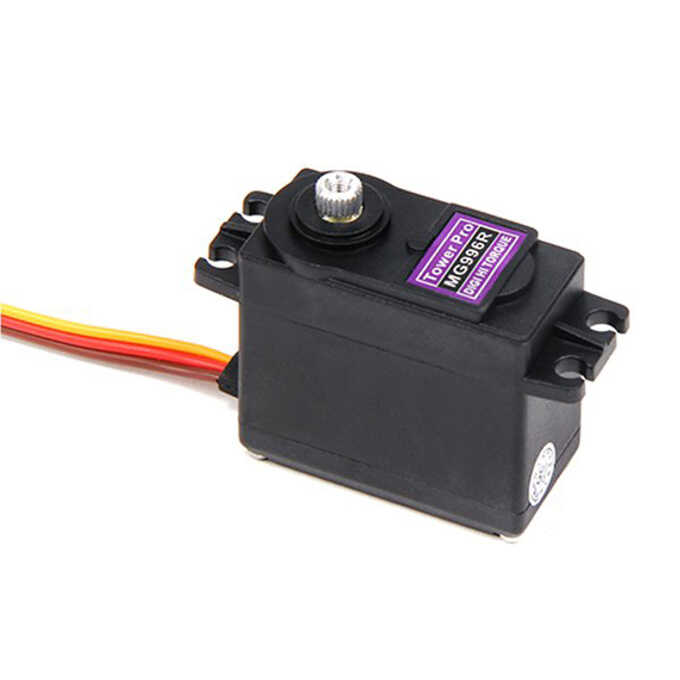

Tower Pro MG996R High Torque Servo - Motor 13KG 180 Degree

Tower Pro MG996R High Torque Servo - Motor 13KG 180 Degree

Servo is defined as a drive system that performs angular-linear position, speed and acceleration control in mechanisms without error. In other words, it is a motion control mechanism. Servo motors are the most used motor type in robot technologies, but they are also used in RC (Radio Control) applications. RC Servo Motors were first used in remote control model vehicles. Servos are designed to take the desired position and not change their position unless a new command comes. Servo motors can be used for many different purposes. There are models in different sizes and different torque powers. You can click here to find the most suitable servo motor type for your project.

Tower Pro MG996R High Torque Servo Motor Technical Specifications:

• Model: MG996R
• Control System: +Pulse Width Control
• (RX) Required Pulse: 3.0 ~ 5V Peak-to-Peak Square Wave
• Operating Voltage: 4.8 ~ 7.2V/DC
• Carrying Capacity: 13KG
• Rotation Angle: 180 Degree
• Gear Type: Metal Gear
• Case Material: Sturdy Plastic
• Programmable: NO
• Connector Type: JR
• Connector Cable Length: 32.0cm
• Weight: 50gr
