VESA Aluminum Case（Black)

VESA Aluminum Case （Black)

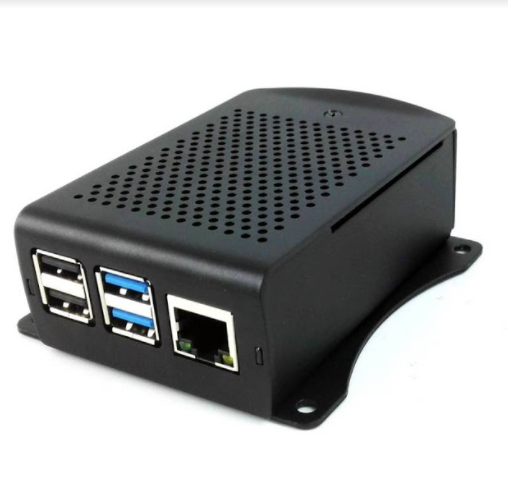

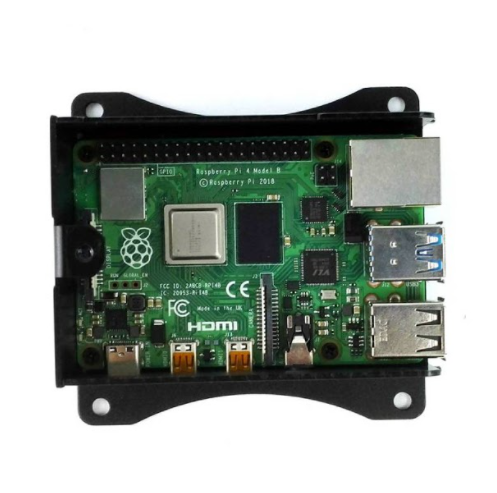

Case designed for Raspberry Pi 4B , it comes in two main Aluminum alloy parts: the base and the top cover with a lot of air ventilation holes and can also be used to mount the cooling fan. There are only two main parts, simply unscrew the top screw and detach the top cover, place the Raspberry Pi 4B into the base case, align it with 4 standoffs and secure it with 4 small screw provided to make sure your SBC does not drop off when you move it. Ther eare two more brackets to make it VESA 75×75 compatible,secure it if you need to mount this case to an LCD monitors the bracket is optional. The cooling system needed for most of Raspberry Pi 4 B applications and it should be mounted onto the bottom side of the top case.

Features:

• Two main parts only, base and top

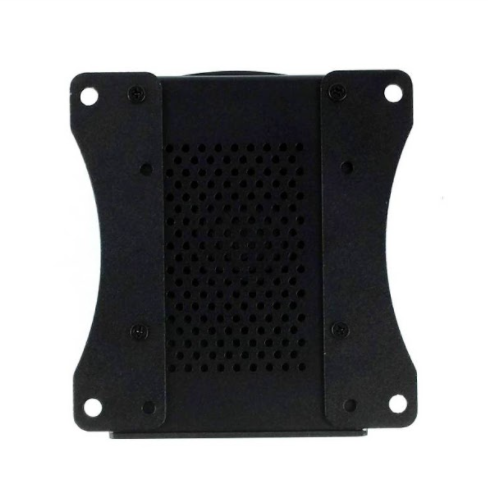

• Two additional brackets to make this case VESA 75×75 compatible
• Exhaust hole surface can reach perfect heat dissipation. Add hanging bracket for easy mounting.
• Designed for:
• Raspberry Pi 4 B 1 GB
• Rapberry Pi 4 B 2GB
• Raspbery Pi 4 B 4GB
• Dimension:95mm(length)×85mm(width)×35mm(height)

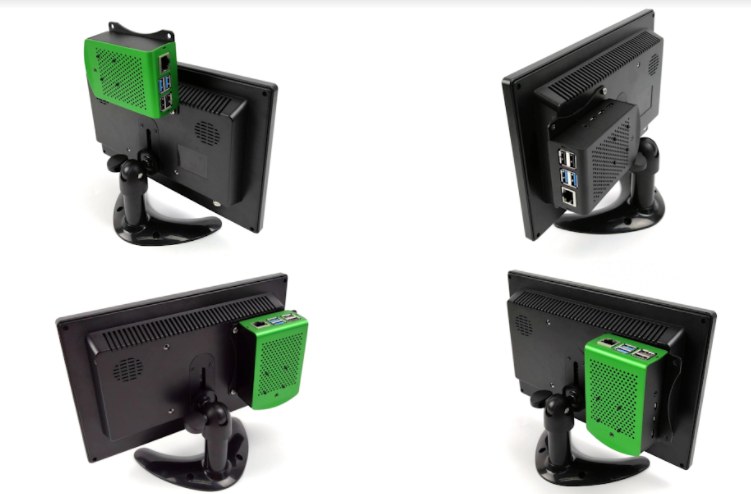

• Suitable for mounting on walls and other flat surfaces
• Protects the components from dust and impacts
• Simple installation using a few screws
• Material: aluminum
• Color: black

Package includes:

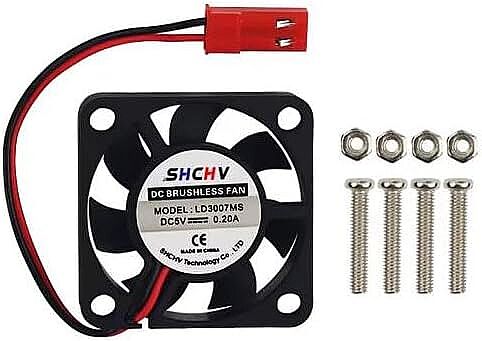

• 1 x Aluminum RPi4 Case with FAN
• 2 x Aluminum Bracket to make it VESA 75x75 compatible
• 8 x Screw

The case reserves the space for:

• 40-pin GPIO
• Cooling fan and mounting holes
• microSD card slot
• USB Type C port for power
• 2 x Micro HDMI port
• Audio/Video Composite Jack
• 2 x USB 2.0 Port
• 2 x USB 3.0 Port
• 1 x Ethernet Port
• Processor Heatsink
• Ethernet & USB Hub IC Heatsink

Notes:

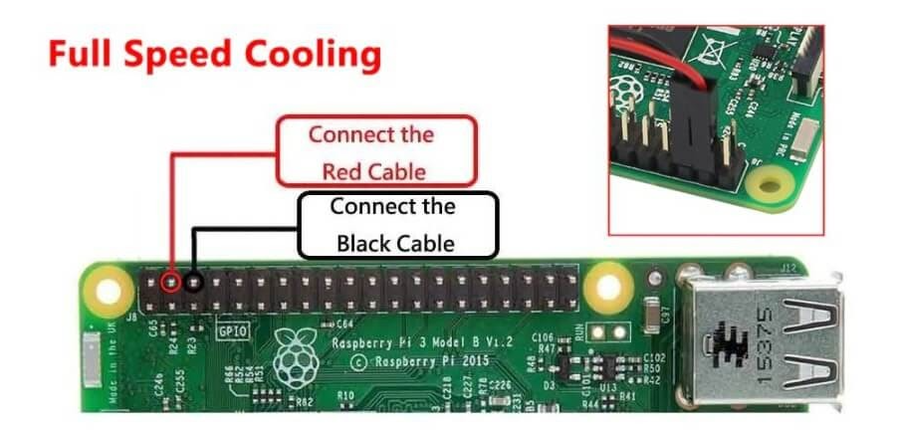

The power for the fan should be connected to GPIO, Pin 4 (5V OR Red) and Pin 6 (Gnd or black)
