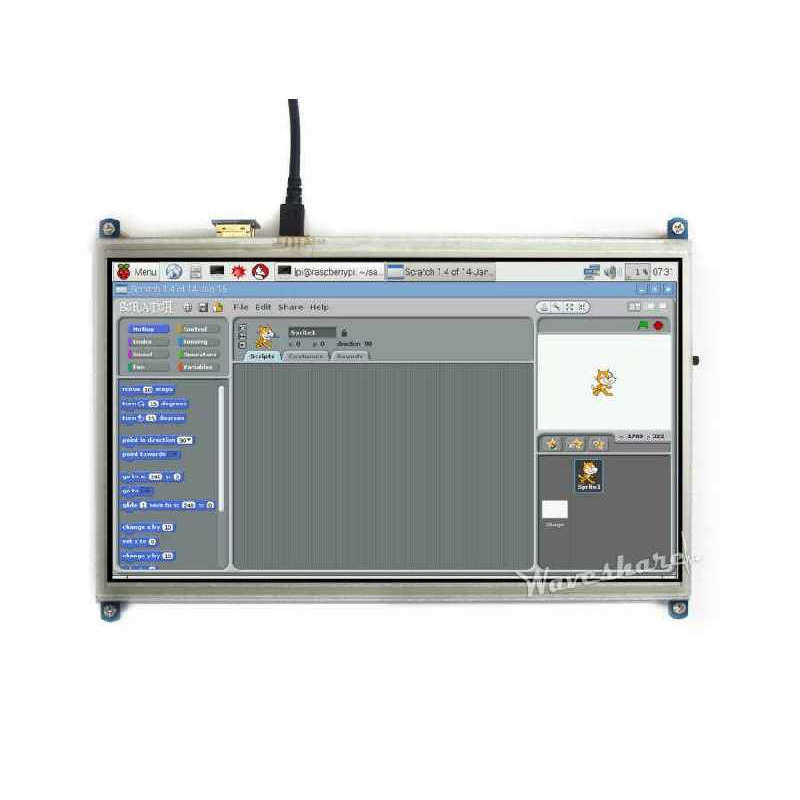

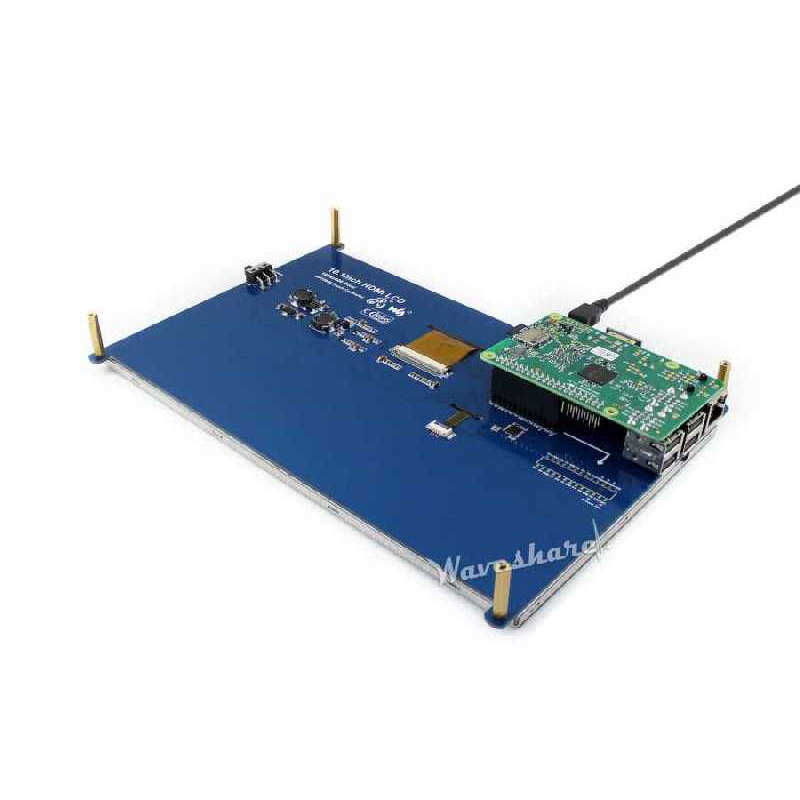

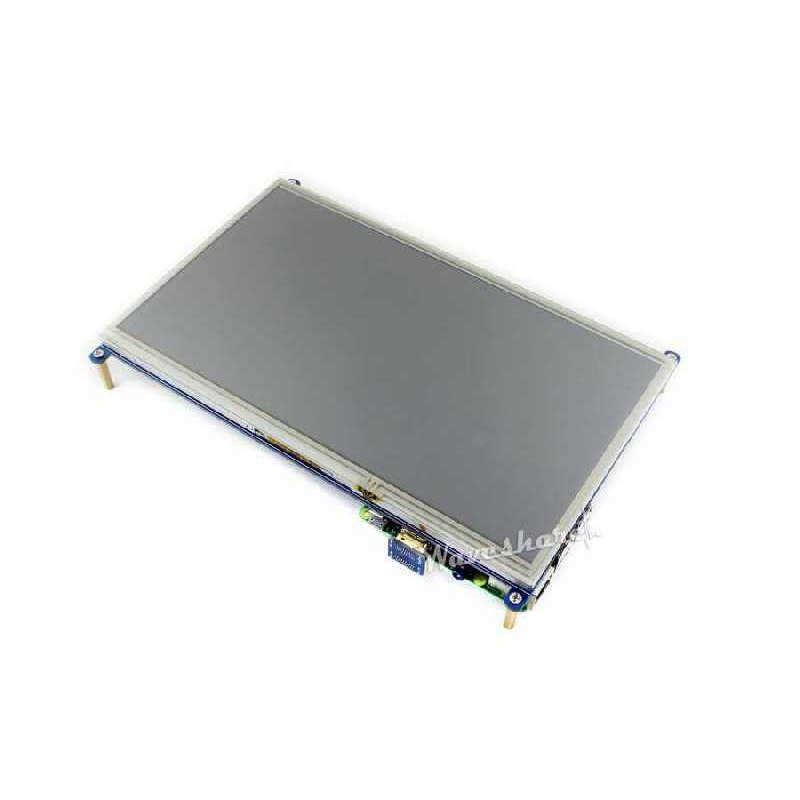

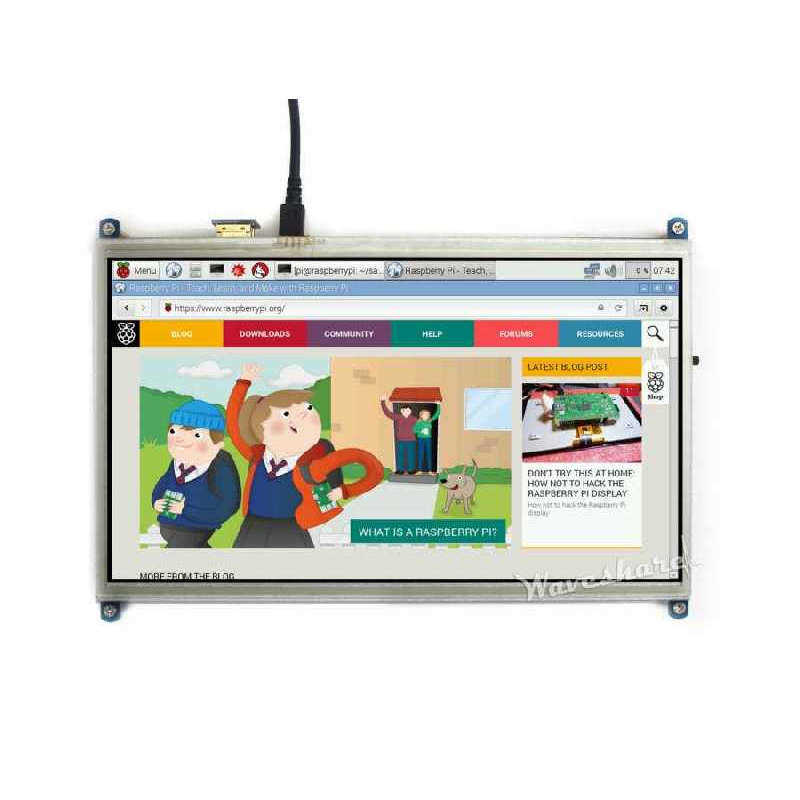

You can use this 10.1" display with your single board computers like Raspberry Pi or even with your PCs. The touch screen connects via the GPIO header of the Raspberry Pi. When using this screen externally via HDMI, the touch screen will not work as the connections neccessary for the touchscreen is on the GPIO pins.

Specifications:

  • 1024×600 high resolution
  • Resistive touch control
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
    Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required)
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Back light control to lower power consumption

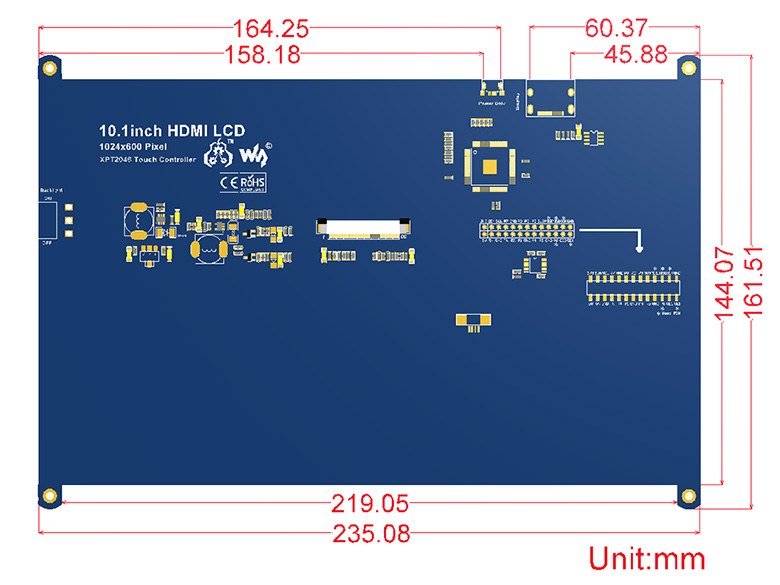

Dimensions:

For detailed information and pre-made images, you can visit the wiki page.


Features
Size
5.0 inches and above
16630
WaveShare 10.1 inch HDMI Resistive Touch LCD - 1024x600
WaveShare 10.1 inch HDMI Resistive Touch LCD - 1024x600
:
2,679.38 TL + VAT
:
3,215.26 TL
