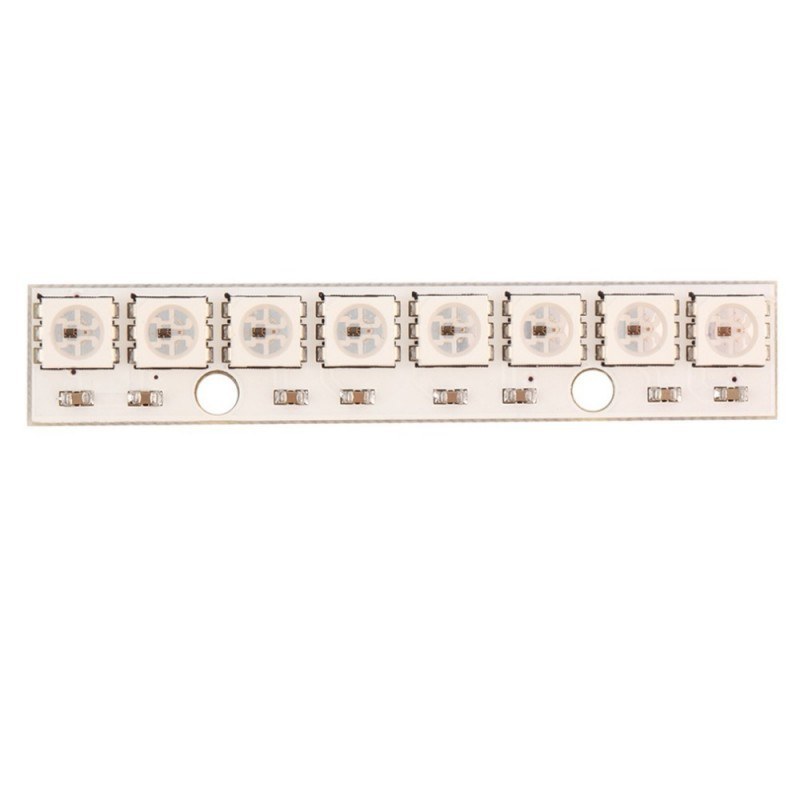

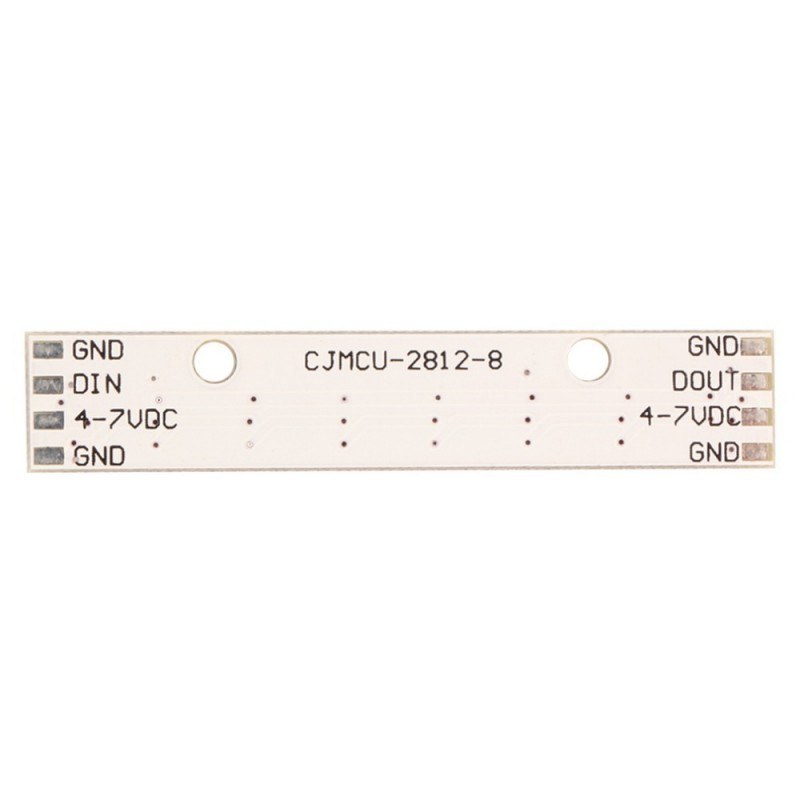

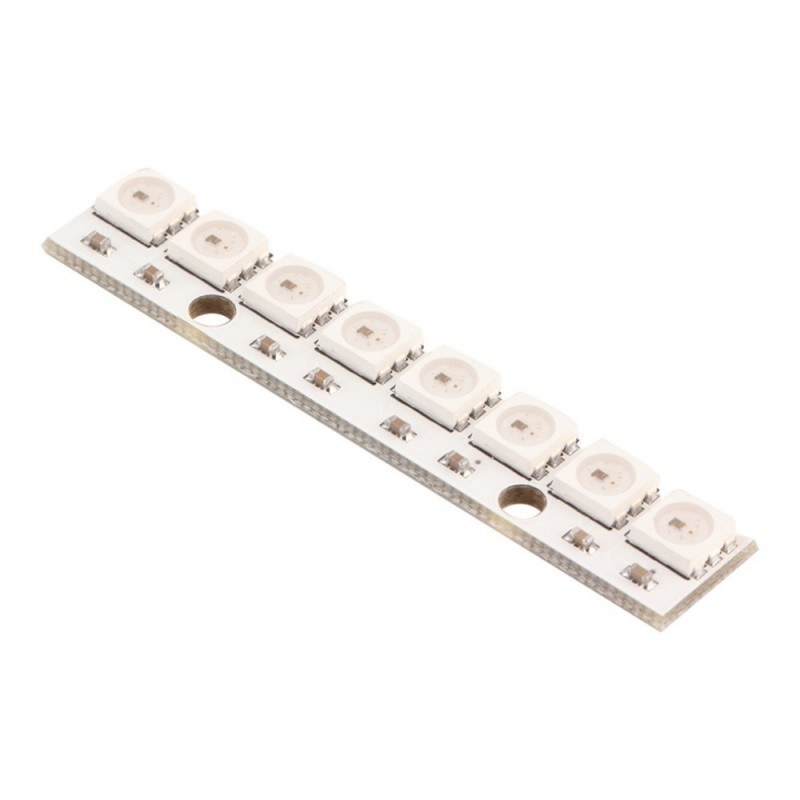

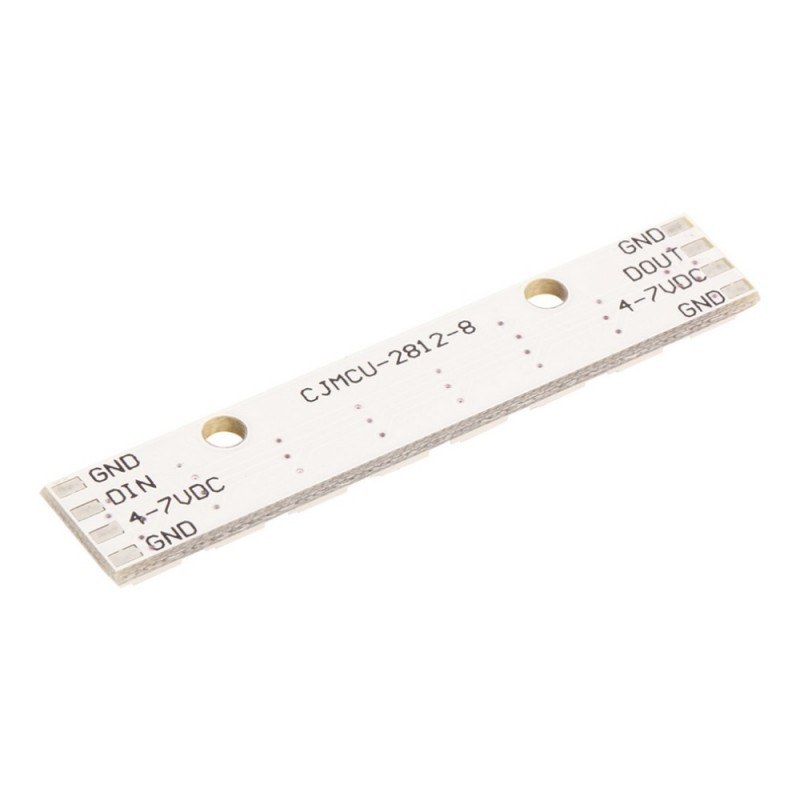

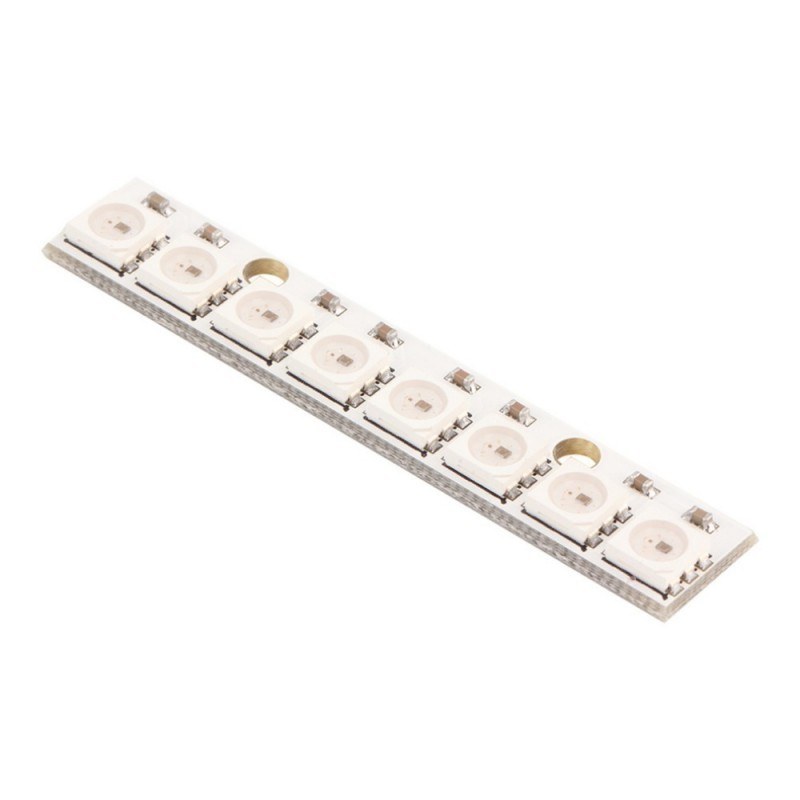

NeoPixel is a RGB LED that you can connect them togheter for multiple using, can be controlled by using only one microcontroller pin. This stick contains 8 Neopixel chained. Also you can extend these sticks by chaining them together.

The stick has 5 mm x 5 mm sized 8 NeoPixel LEDs on it. They need 20mA of current per pixel. They are drived by a constant value of current so even if your battery goes low, your NeoPixel's brightness level never reduces. You can drive NeoPixels up to 500 of them, in 30FPS rate by using Arduino. Arduino's process capability and memory sizes will not allow you to drive NeoPixel more than 500.

Dimensions:

  • 51.10 mm x 10.22 mm x 3.19 mm
  • Weight: 2.57 gr


Example code and Arduino library


16074
WS2812 8-Piece RGB LED Stick
WS2812 8-Piece RGB LED Stick
:
62.64 TL + VAT
:
75.17 TL
