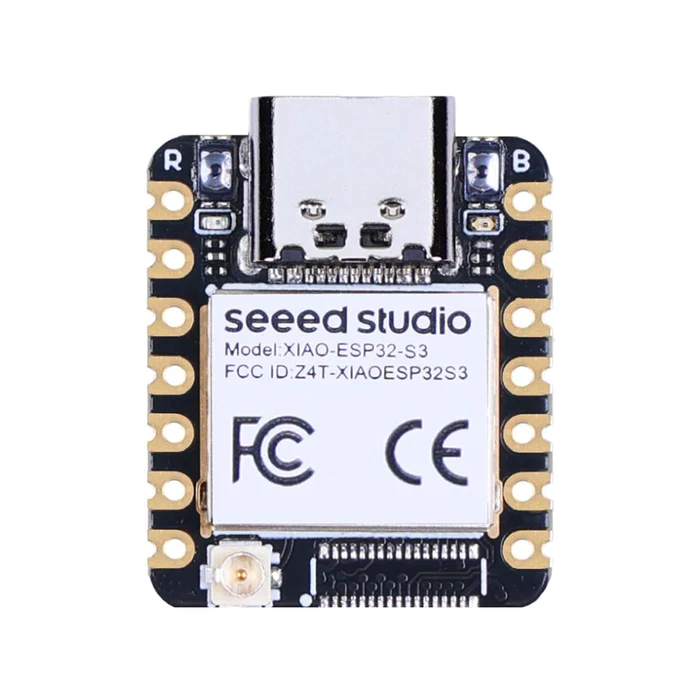

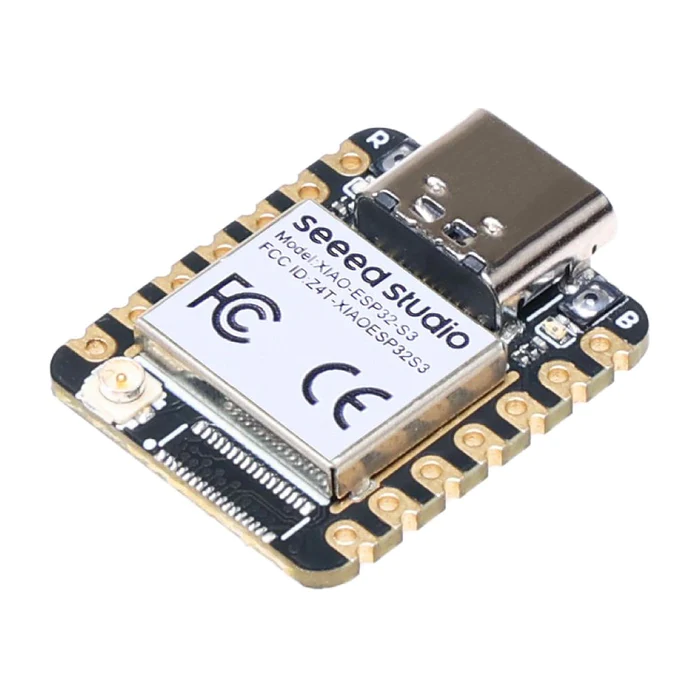

XIAO ESP32S3 Development Board

                                                      XIAO ESP32S3 Development Board
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant". Seeed Studio XIAO ESP32S3 leverages 240MHz Xtensa 32-bit LX7 dual-core processor, supporting both WiFi and BLE 5.0 wireless connectivities, allows for deep sleep mode with power consumption as low as 14μA while supporting lithium battery charging management. Ideal for the Internet of Things, Smart Homes, Wireless wearable devices, Robotics, etc

XIAO ESP32S3 Development Board Specifications:

• Connectivity:
  • 2.4GHz Wi-Fi (~100 mA)
  • BLE 5.0 (~85 mA)

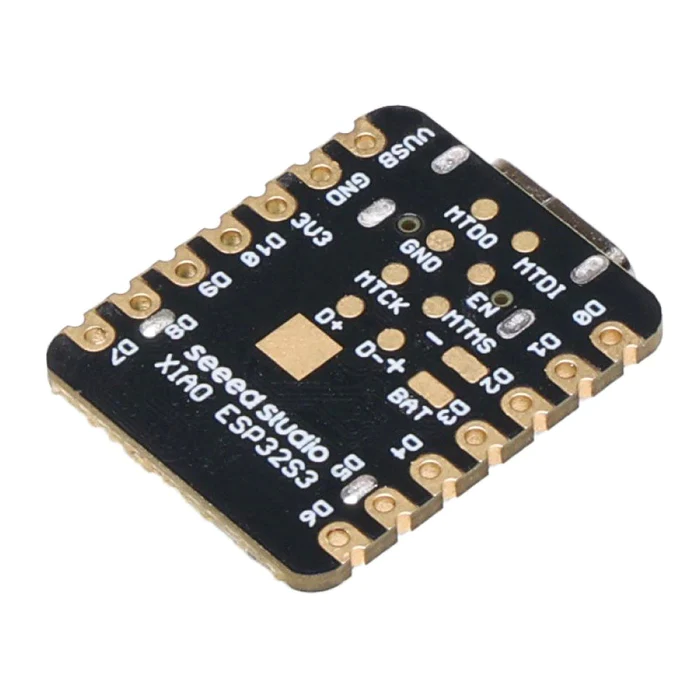

• I/O Interfaces:
  • 11x GPIOs
  • 1x 5V pin, 1x 3.3V pin, 1x GND
  • 1x User LED

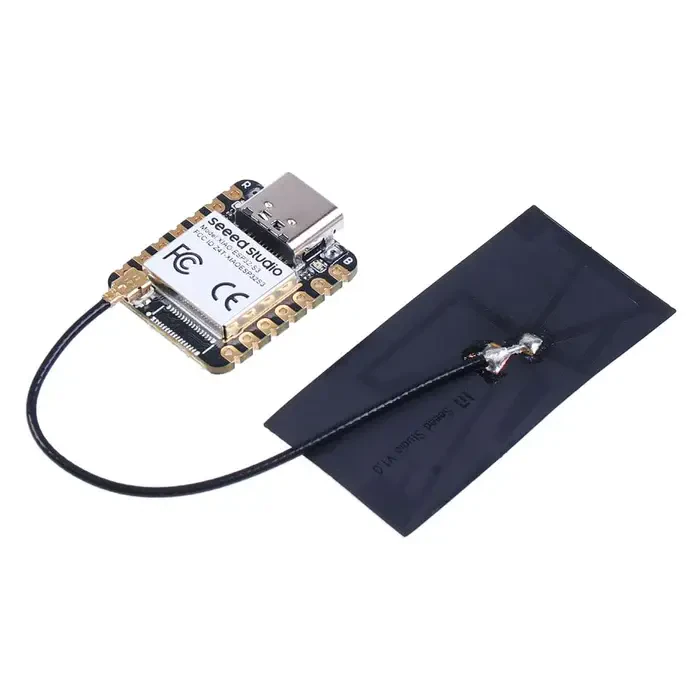

  • 1x Wi-Fi/BT Antenna connector
• USB:
  • 1x USB Type-C
• Other Features:
  • 1x Boot button
  • 1x Reset button
  • 1x Charge LED
• Power:
  • 5V DC (via USB Type-C)
  • 4.2V Battery Input (50mA charging current)

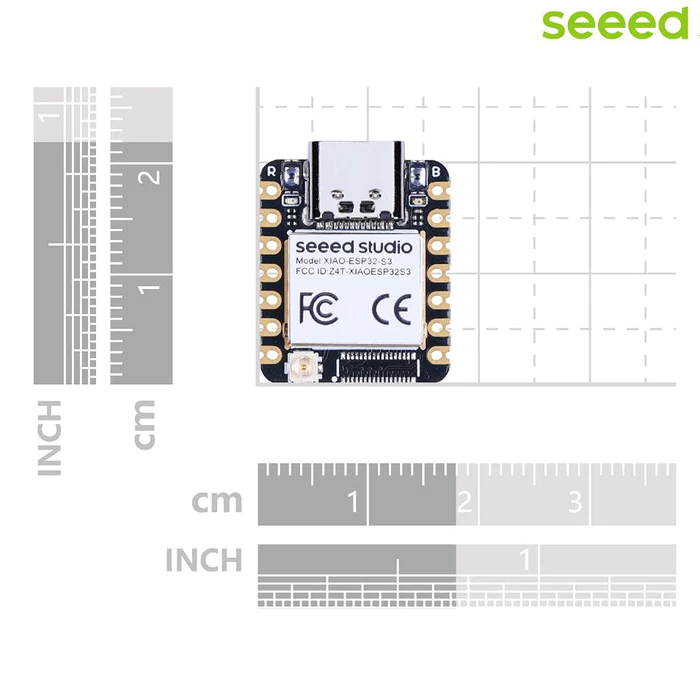

• Mechanical:
  • 21 x 17.5mm

Useful Links / Documents:

• XIAO ESP32S3 Development Board Datasheet
