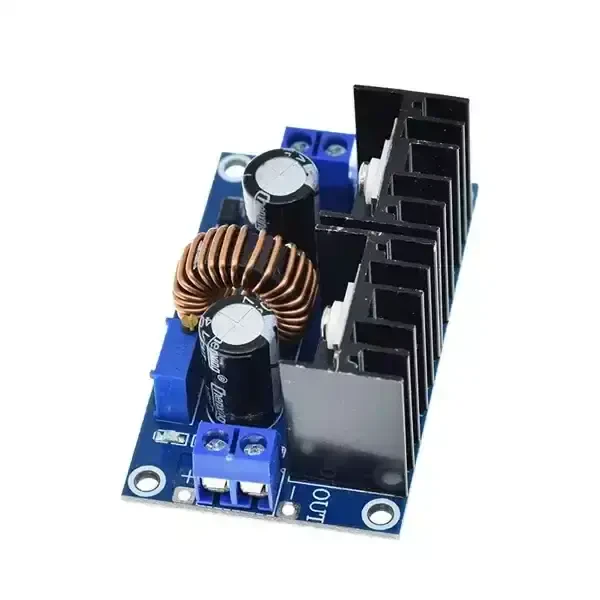

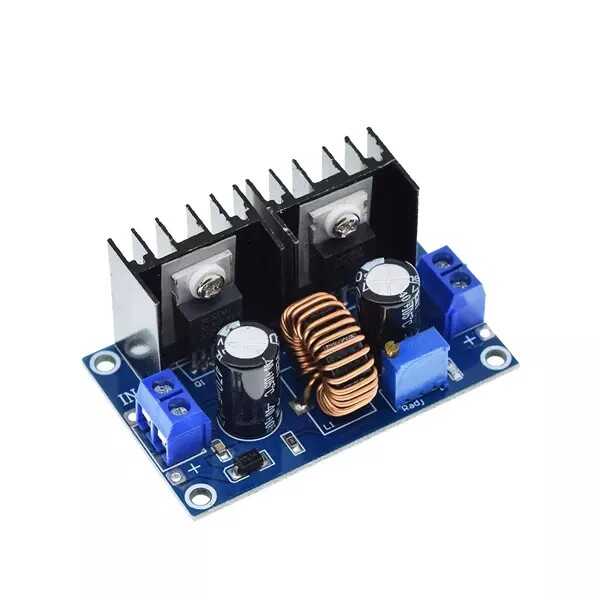

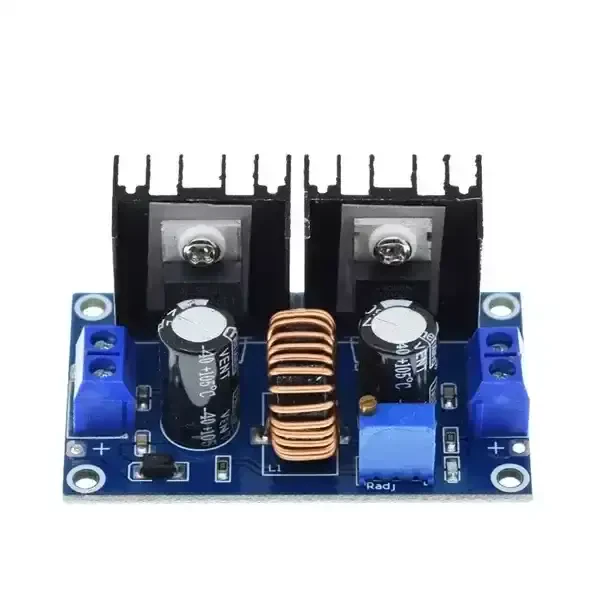

XL4016 200W 5A Adjustable Step Regulator with shield

XL4016 200W 5A Adjustable Step Regulator with shield

The XL4016 200W 5A is a Step Down/Downloader voltage regulator with a maximum output power of 200W, together with a DC-DC voltage regulator. In addition, thanks to the voltmeter on the module, it has the ability to reduce voltages from 7-40V to 1.25-35V. It is an ideal product for projects that require a higher current regulated power supply or battery operated projects.

XL4016 200W 5A Technical Specifications:

• Size: 70mm x 47mm x 29mm
• Input Voltage: DC 4 - 40V
• Output Range: DC1.25 - 35V(Adjustable)
• Maximum Current: 5A
• Maximum Power: 200W
• Conversion Efficiency: 94%
• Switching Frequency: 180KHz
