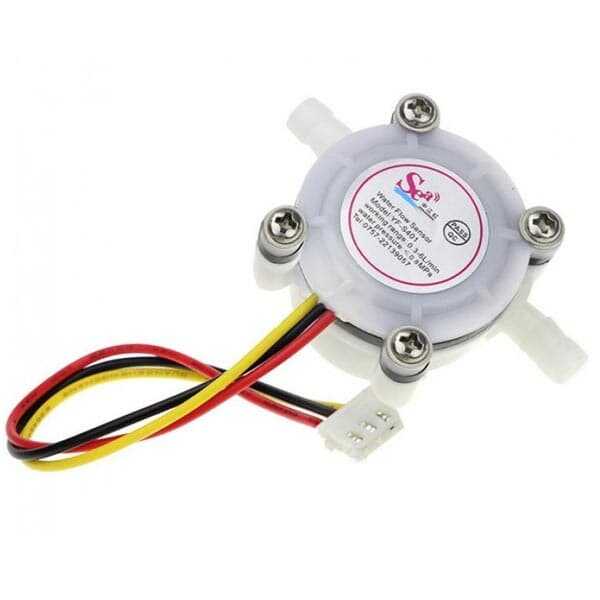

Water Flow Sensor YF-S401 Flowmeter 0.3-6L/Min 2mm - White

The Water Flow Sensor is a sensing and measuring electronic sensor with a rigid plastic body, an internal rotor and a hall effect sensor. The rotor inside the sensor moves when the liquid starts to flow with the help of the propeller mounted on it and the hall effect sensor is warned.

Hall effect sensor is a sensor used to detect and measure the changing magnetic effect. As a result of this motion, motion is detected and converted into electrical signals to be used in operations. These values ​​can be read digitally from the cables on the water flow sensor. These values ​​can be used in Arduino and all similar microcontrollers.



Water Flow Sensor (Marine) YF-S401 Flowmeter Technical Specifications:

  • Model: YF-S401
  • Operating Voltage: 5-12V/DC
  • Working Current: 15mA (5V/DC)
  • Working Range: 0.3-6L/min
  • Water Pressure: <= 0.8MPa
  • Water Passway Diameter: 2mm
  • Output Type: Digital
  • Tight
