12V 25mm with RPM 1360

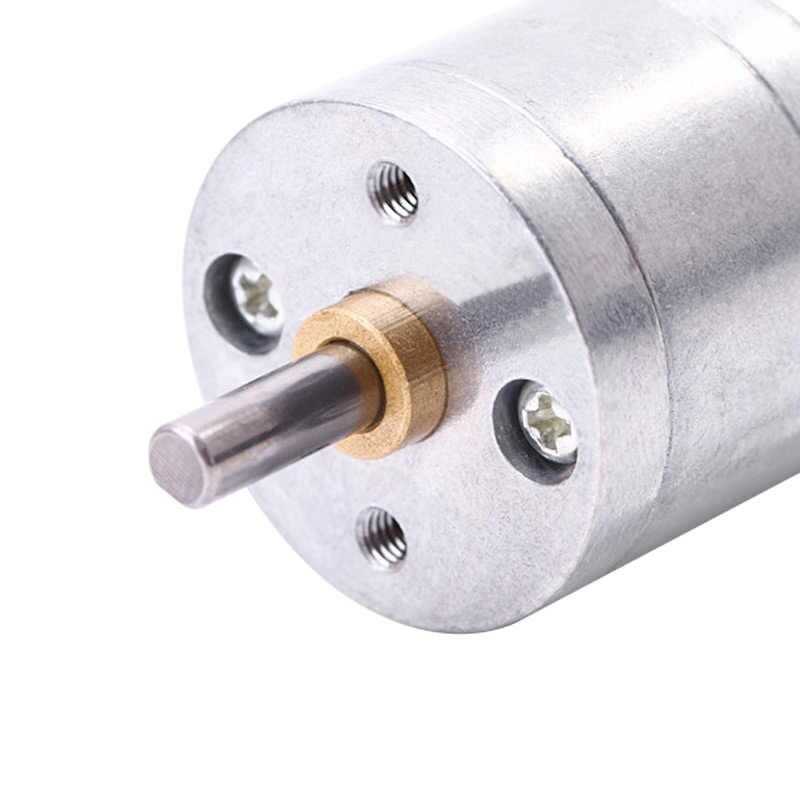

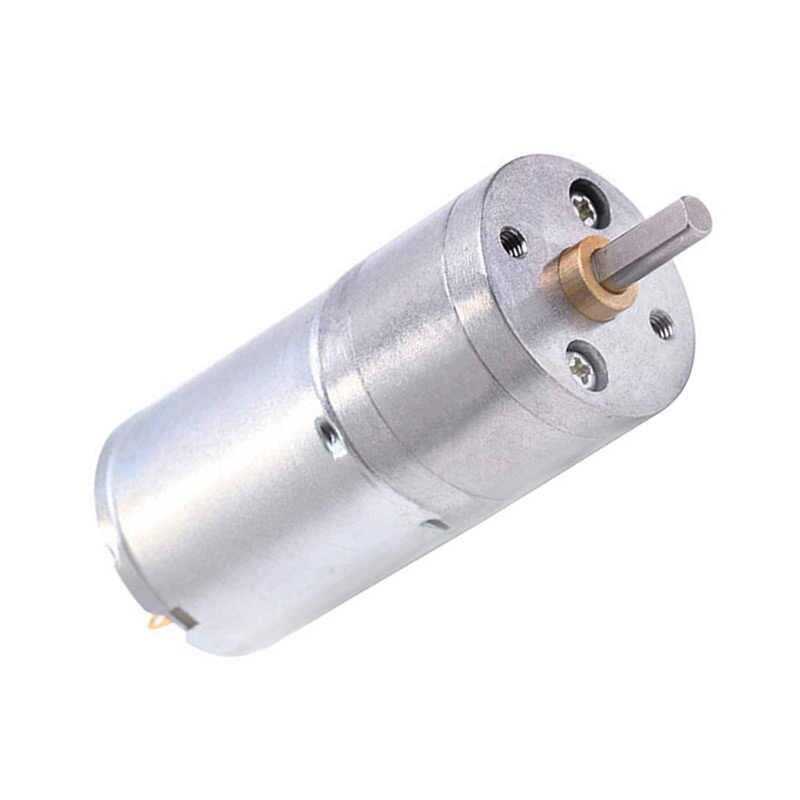

12V 25mm 1360 RPM Geared DC Motor

Thanks to its geared structure, this motor provides a high-torque output suitable for various applications. Its metal housing ensures durability, long service life, and stable operation. The two-wire connection allows direction control, and PWM signals can be used for speed control. This makes it suitable for robotic projects, automation systems, and DIY applications where flexible motor control is required. With a compact 25 mm diameter, it can be easily integrated into space-limited projects. The product is also available in different RPM options. Click here to explore.

Specifications:

• Operating Voltage: 12V
• Speed: 1360 RPM
• Motor Diameter: 25 mm
• Shaft Type: 4 mm D Shaft
• Shaft Length: 10 mm
• Motor Length (Excluding Shaft): 48 mm
• No-load Current: 120 ± 50 mA
• Stall Current: 1.5 A
• Nominal Torque: ~0.1 kg·cm (≈0.01 N·m)
• Maximum (Stall) Torque: ~0.4 kg·cm (≈0.04 N·m)

Package Contents:

• 12V 25 mm 1360 RPM Geared DC Motor
