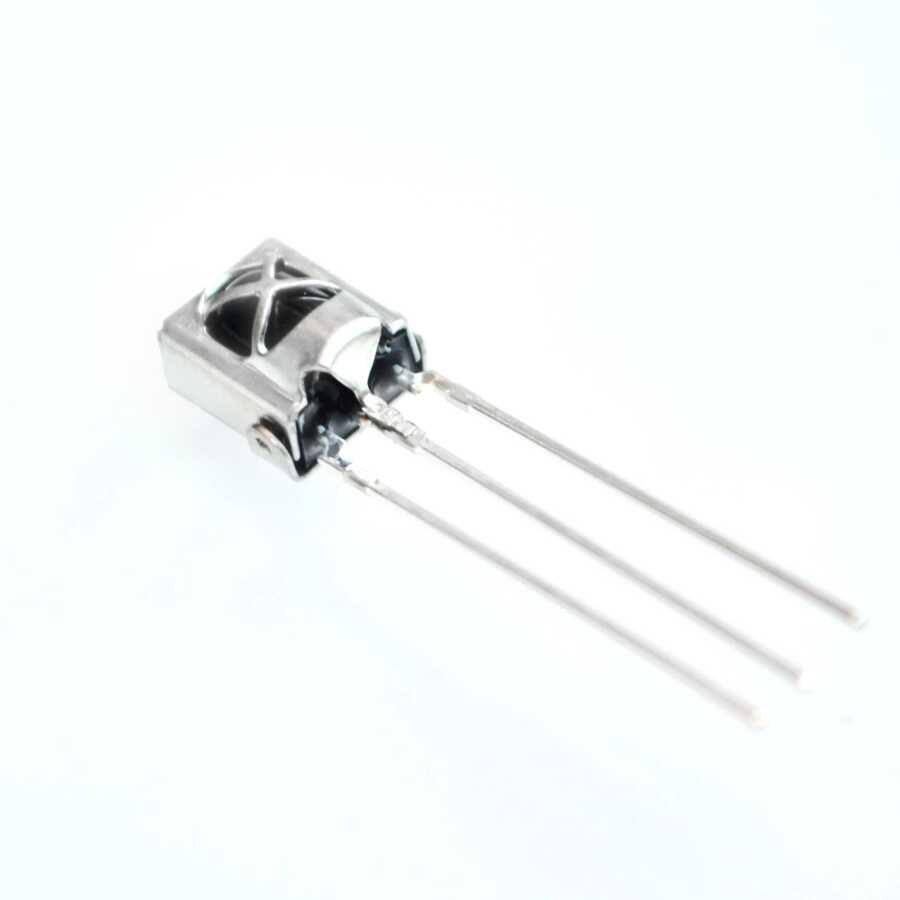

Universal IR Infrared Receiver TL1838 VS1838B 1838 38Khz

Universal IR Infrared Receiver TL1838 VS1838B 1838 38Khz

It is an infrared control receiver sensor. It is located on an 1838 type ir receiver. It works at 38Khz frequency. It can work up to 18 meters. It is not affected by light and electromagnetic noises. With this sensor operating at 38 KHz frequency, it can be used with protocols such as NEC and RC5. You can perform various control applications by using your remote controls. It can be used with boards such as Arduino Raspberry and circuits made with different mcular. It is widely used in television, satellite receiver, cd reader, air conditioner, remote control toy-like devices.

38Khz Universal IR Infrared Receiver Technical Specifications:

• Working voltage: DC 2.7V / 5.5V
• IR frequency: 38kHz 1838 NEC Code
• Compatible communication standard: NEC code, RC5 code
• Angle: 45 Degree
• High gain internal amplifier circuit
• High speed
• high sensitivity
• It is less affected by ambient light.
• Low interference protection
• Metal sheath construction for protection from electric field
• TTL and CMOS compatibility
• Universal receiver: 38kHz
• Wavelength: 940Nm
• Detection distance: 18 Meter
• Foot pitch distance: 2.54mm
• Foot length: 20mm
• Dimensions: 5mm x 7,5mm x 6.7mm
• Weight: 0.5gr

Package Included:

• 1 Piece VS1838B 38KHZ IR Receiver Sensor
