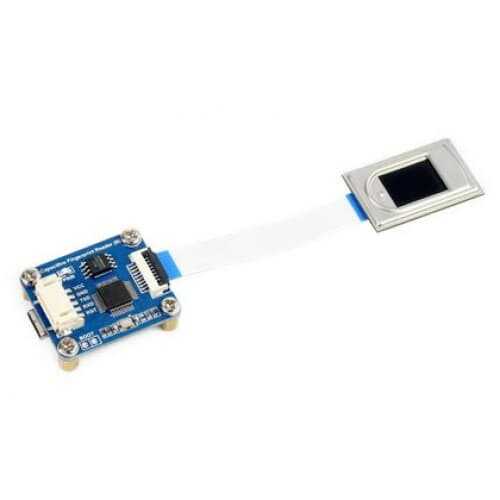

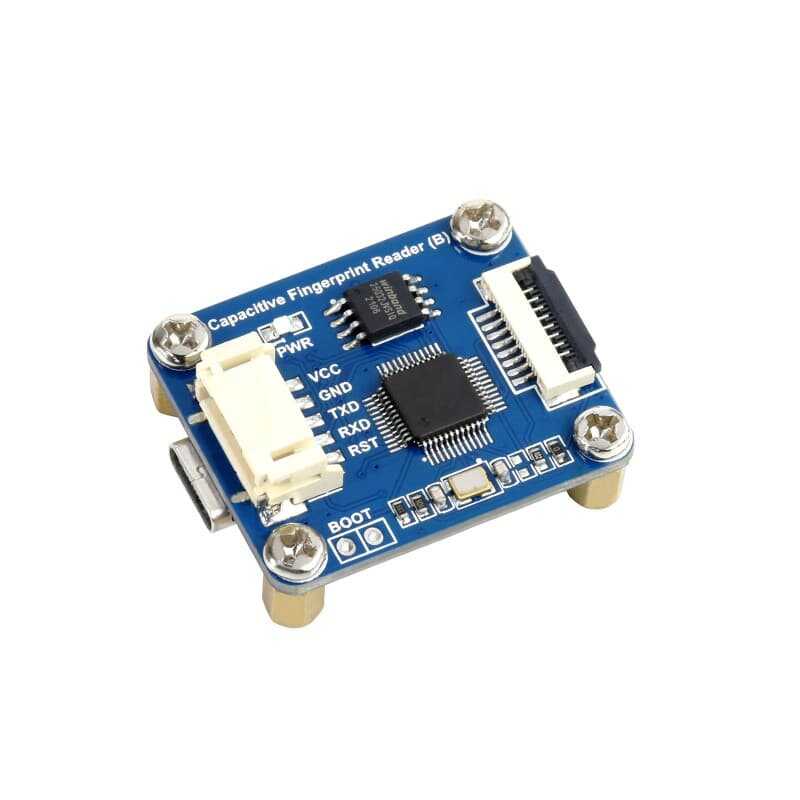

Waveshare High Sensitivity Capacitive Fingerprint Reader (B), UART/USB Dual Port

Waveshare High Sensitivity Capacitive Fingerprint Reader (B), UART/USB Dual Port

Fingerprints, which have become indispensable in today's phones, will now show their comfort everywhere. Thanks to the sensor inside the fingerprint readers, it has the feature of recognizing the person in a short time like 1 second. With this High-sensitivity Capacitive Fingerprint Reader produced by Waveshare brand, you can add a different atmosphere to your project by using features such as fingerprint lock, fingerprint safe, access control system, person ID, authorization management.

Waveshare High Sensitivity Capacitive Fingerprint Reader Technical Specifications:

• Input Voltage: 5V/DC
• Current: <40mA
• Input Ports: USB – UART
• Image Resolution: 208x288
• Fingerprint Capacity: 3000 Pieces
• Baud (communication Rate): 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps 115200bps
• ESD (Electrostatic Discharge): SD IEC 61000-4-2 LEVEL 4 positive/negative 15KV air discharge
• Pairing Time: 0.5s
• Refresh Rate: 20fps
• Encryption Key: 64-bit
• Security Level: 1-5 configurable, 3 defaults to higher value, lower FAR (False
• Acceptance Rate), but higher FRR (False Reject Rate)

Waveshare High Sensitivity Capacitive Fingerprint Reader Dimensions:
