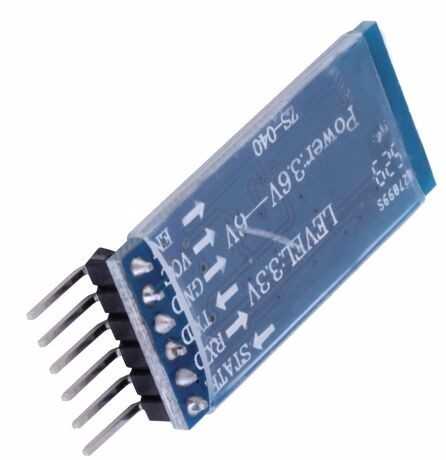

CC2541 is a bluetooth module that supports Bluetooth 4.0 protocol. It has low power consumption feature and it has male headers soldered on it's pins, which allows breadboard using.

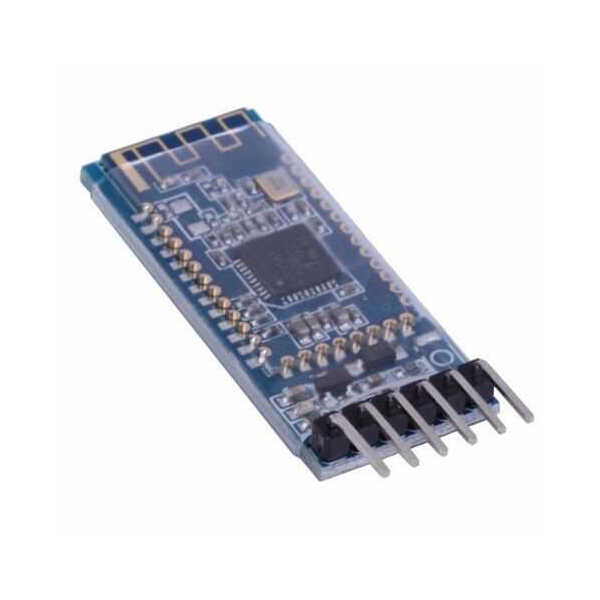

The board contains TI's CC2541 Bluetooth 4.0 chip on it. The module's operating voltage is 5V. RX,TX, AT and RESET pins can be accessed through headers.
This module, which you can control via Arduino or other microcontroller boards, can be used with a bluetooth receiver, a computer, an Android device or an IOS device.
This module can communicate in 2.4GHz frequency and it has a 10m communication range.
It can be used in hobby, robotic or academic projects.
Features:
- Bluetooth Protocol: Bluetooth 4.0
- 2.4GHz Communication Frequency
- Precision: ≤-93 dBm
- Output Power: ≤3 dBm
- Asynchronus Speed: 2.1 MBps/160 KBps
- Synchronus Speed: 1 MBps/1 MBps
- Security: Identity Validation and Encryption
- Opareting Voltage: 5V DC
- Current: 50 mA
- Dimensions: 40x18x7mm
