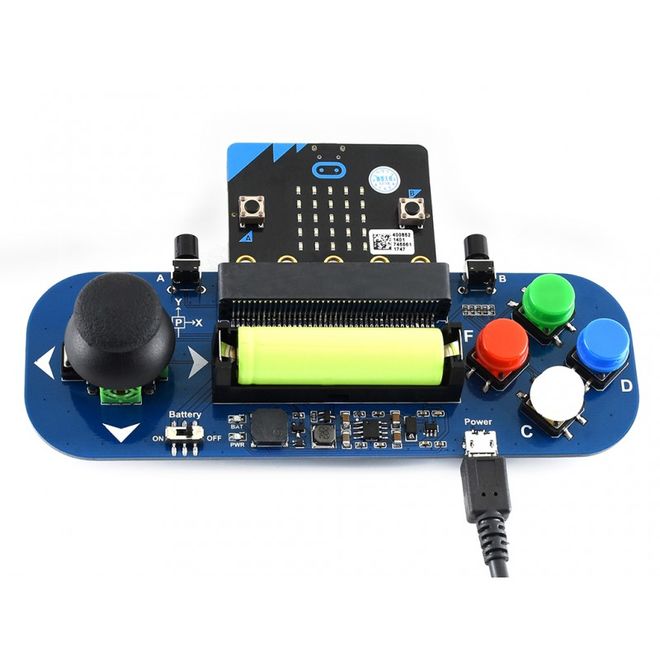

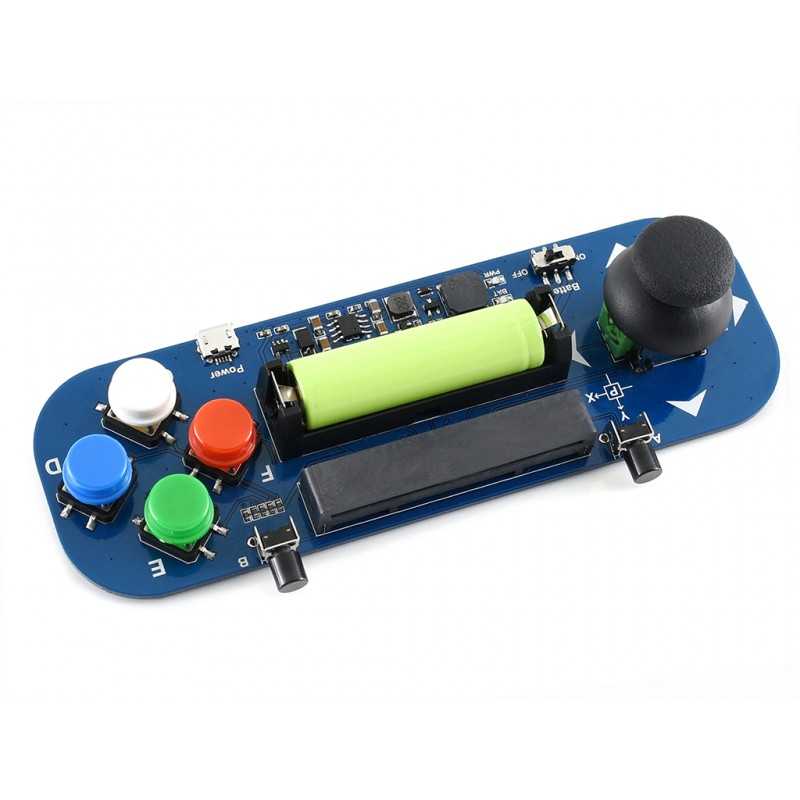

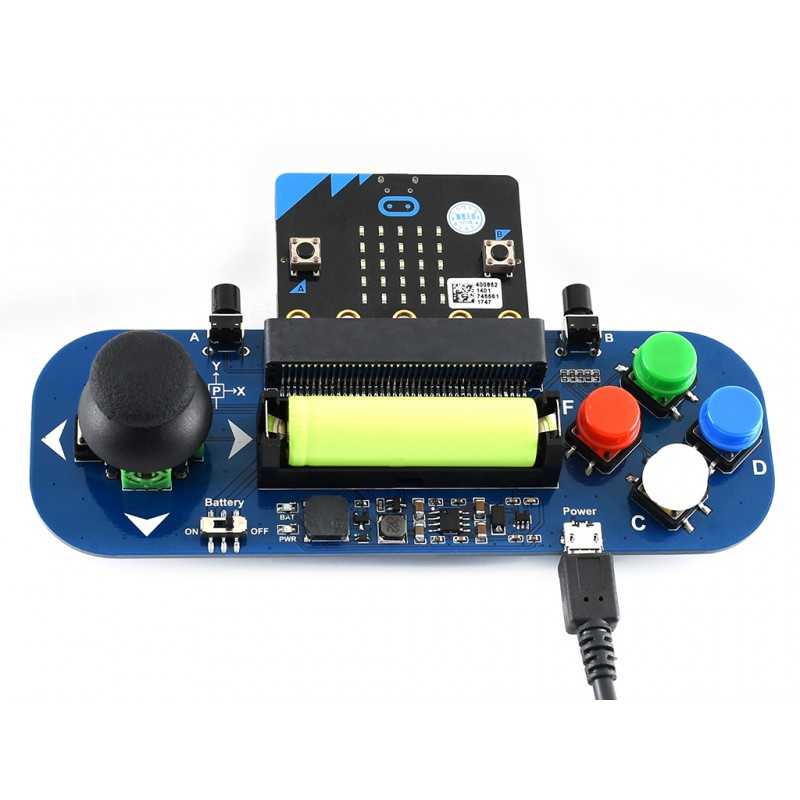

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features:
- micro:bit edge connector, directly pluggable
- High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
- Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
- Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
- 4x colorful buttons
- 2x side buttons, related to the A/B buttons of micro:bit, easy to use
- Buzzer for playing music and game background effect
- Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications:
- Operating voltage: 5V
- Battery type: 14500 Li-ion
- Dimension: 150mm x 50mm

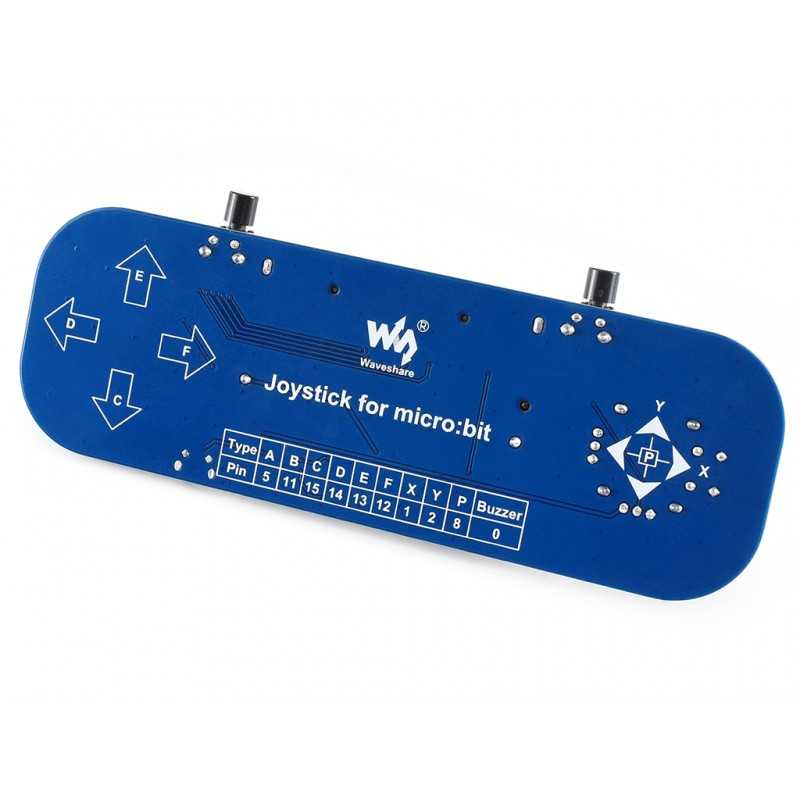

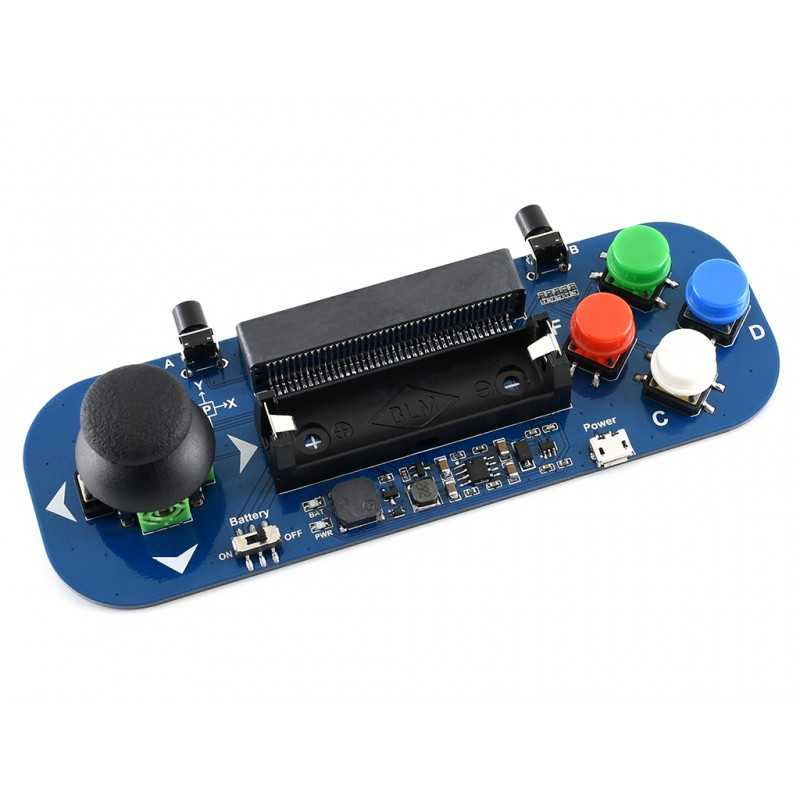

Pinouts:
SYMBOL |
PIN |
DESCRIPTION |
A |
5 |
Button A |
B |
11 |
Button B |
C |
15 |
Button C |
D |
14 |
Button D |
E |
13 |
Button E |
F |
12 |
Button F |
X |
1 |
Joystick X axis |
Y |
2 |
Joystick Y axis |
P |
8 |
Joystick press |
Buzzer |
0 |
Buzzer |
