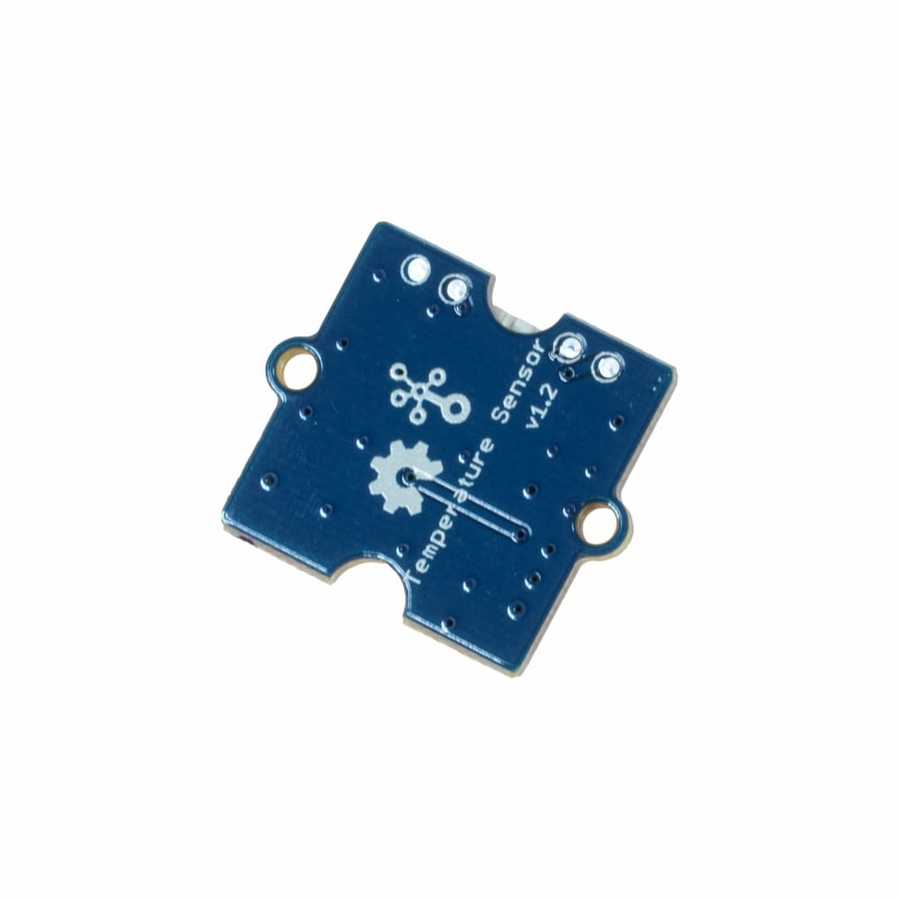

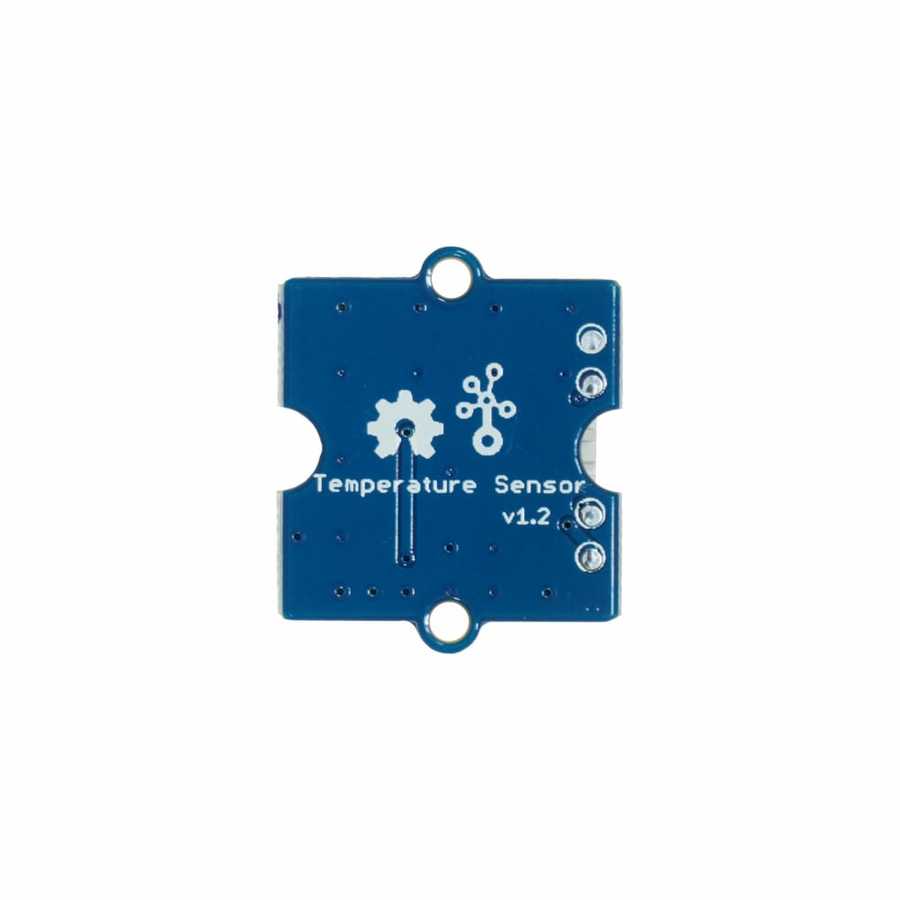

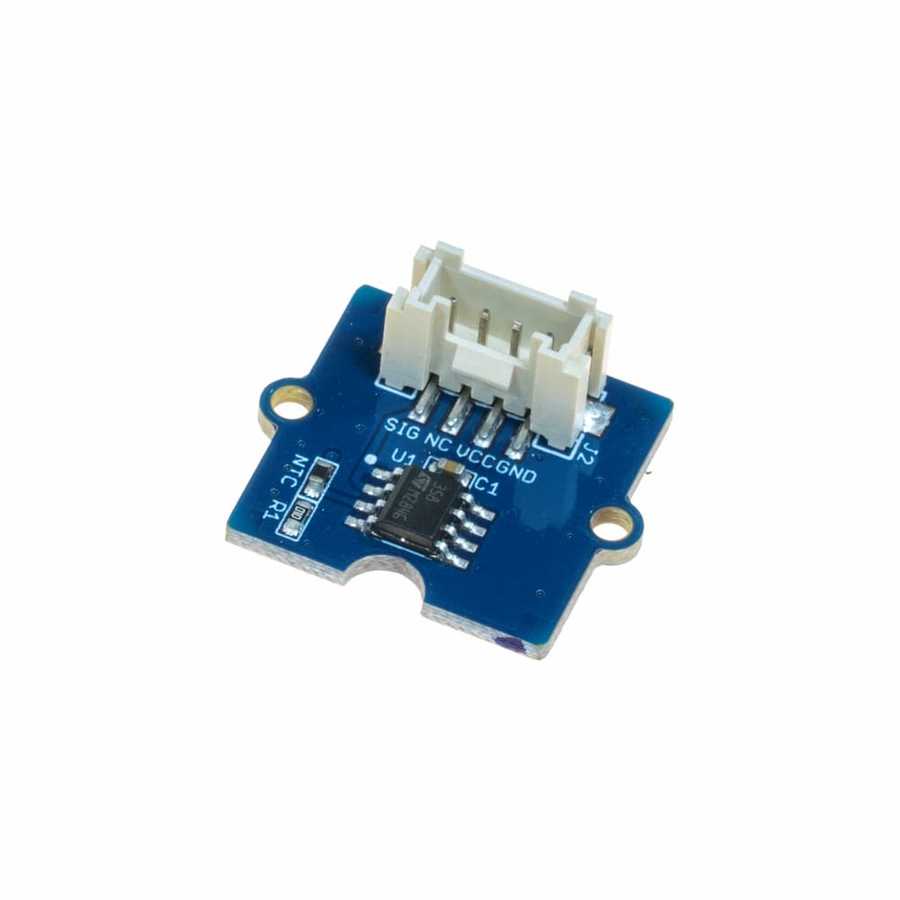

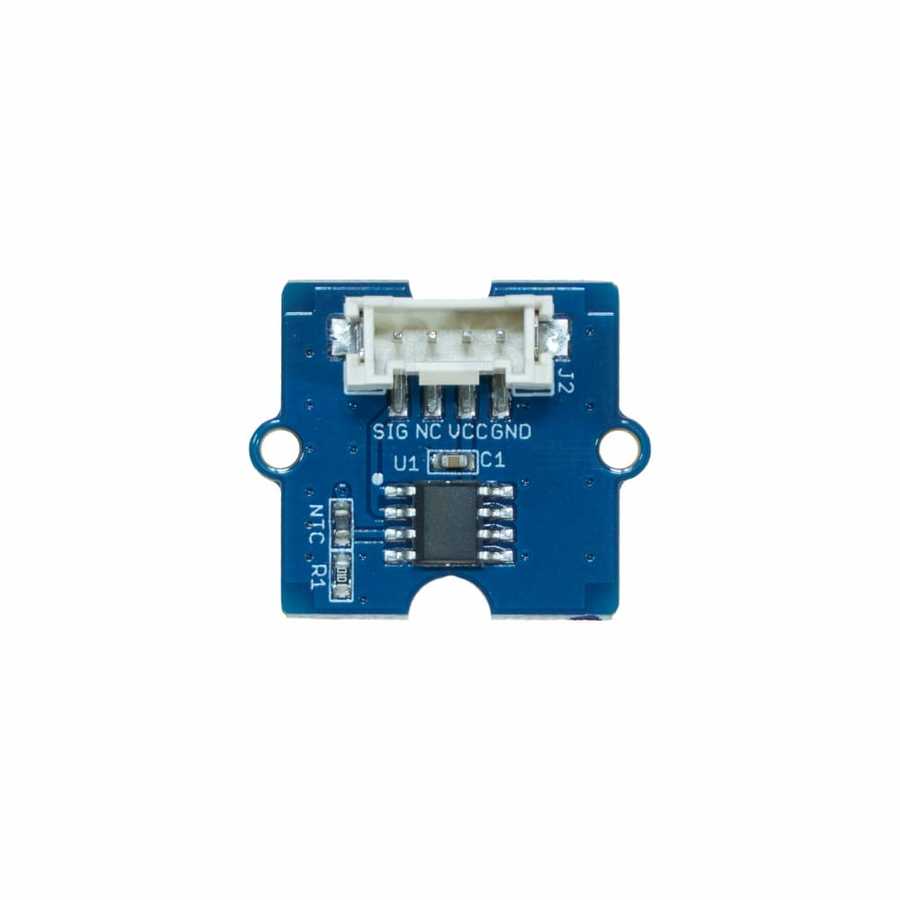

Grove - Temperature Sensor uses a thermistor to measure ambient temperature. The resistance of thermistor changes based on ambient temperature. This resistance value alters the output of a voltage divider which is measured by an analog input pin and converted to a temperature value. The operating range is -40 to 125°C , with an accuracy of 1.5°C .
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Technical details
| Dimensions | 24mm x20mm x9.8mm |
| Weight | G.W 8g |
| Battery | Exclude |
| Operating voltage | 3.3~5V |
| Thermistor Zero power resistance | 100 KΩ |
| Resistance Tolerance | ±1% |
| Thermistor | NCP18WF104F03RC (NTC) |
| Nominal B-Constant | 4250 ~ 4299K |
| Operating temperature range | -40°C to 125°C |
| Accuracy | ± 1.5°C |
Part List
| Grove - Temperature Sensor | 1 |
| Grove Cable | 1 |
