GY-906 MLX90614 BAA Contactless Infrared Temperature Sensor Module - Solderless

GY-906 MLX90614 BAA Contactless Infrared Temperature Sensor Module - Solderless

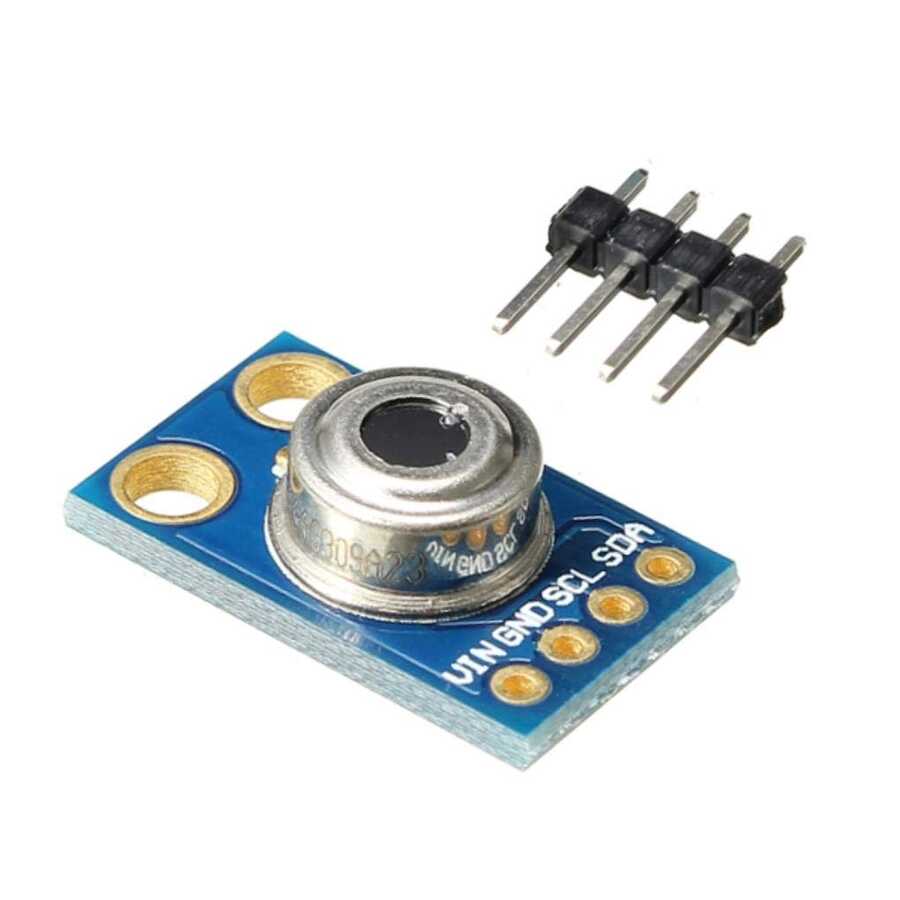

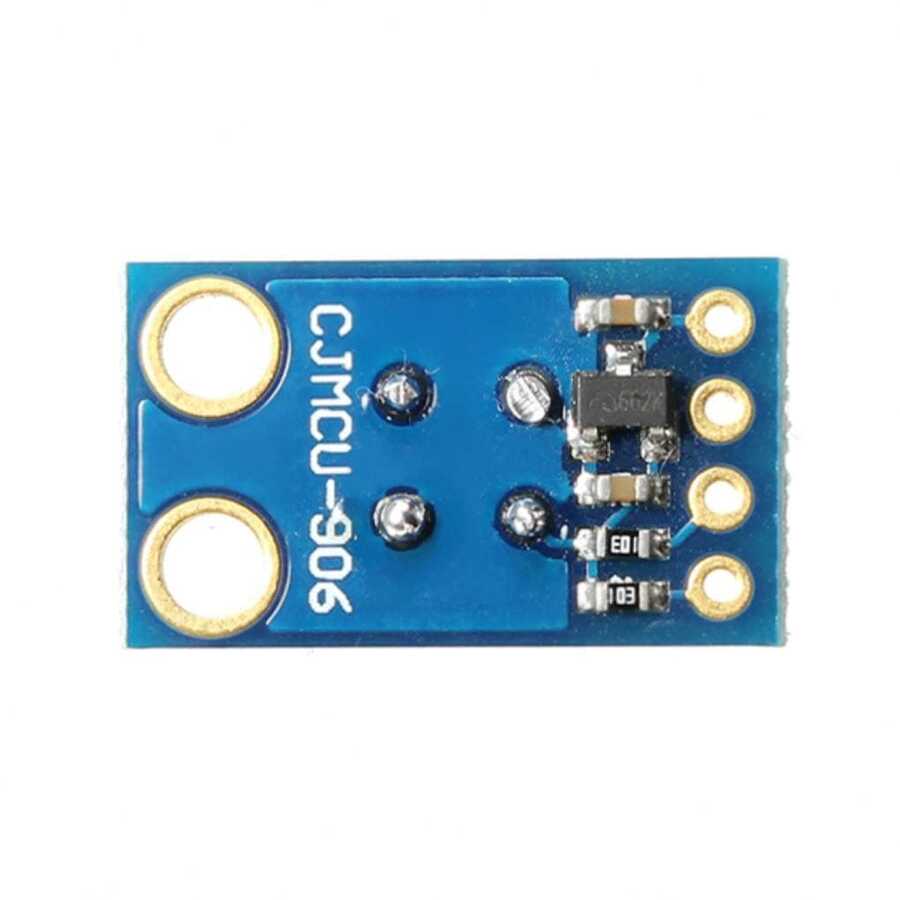

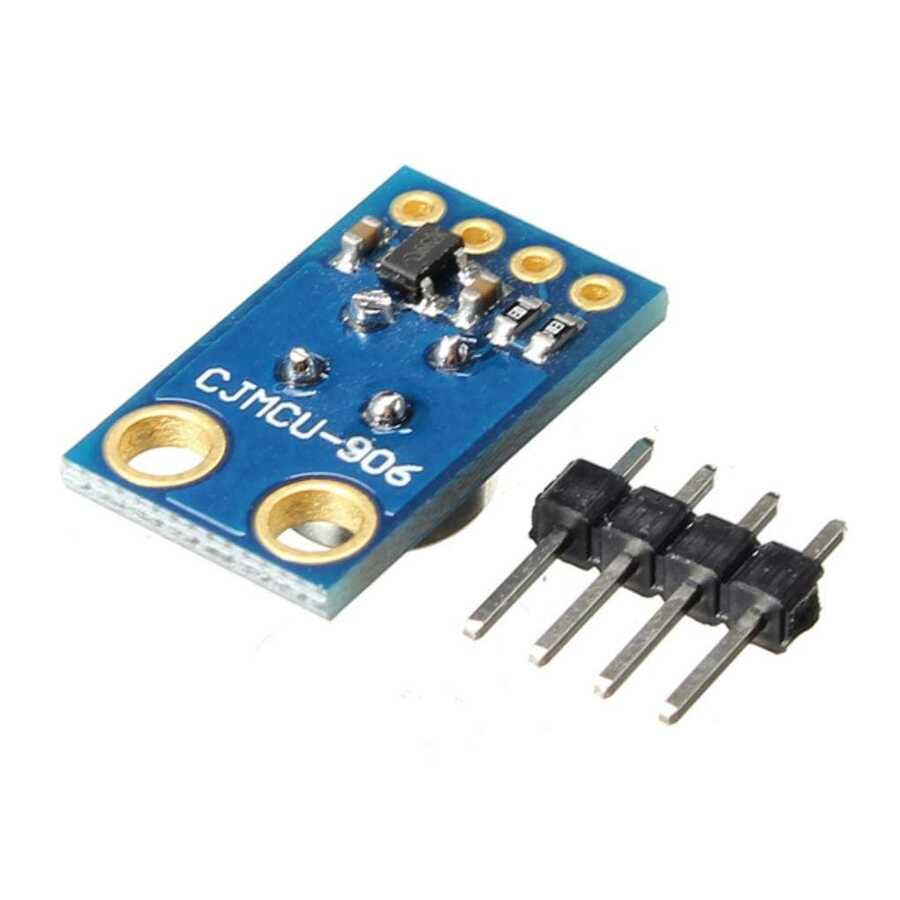

GY-906 MLX90614BAA is a non-contact infrared thermometer for Arduino or any microcontroller that can communicate with it via I2C interface. This sensor comes with a circuit board containing all the necessary components for its operation and two types of pins.

GY-906 MLX90614 BAA Contactless Infrared Temperature Sensor Features:

• Small size, low cost
• Easy integration
• Temperature range: -40 … + 125 °C for sensor temperature and -70 … + 380 °C fork
• object temperature.
• C High (medical) accuracy calibration for both Ta and To
• Measurement resolution of 0.02 °C
• Single and dual zone versions SMBus compatible digital interface
• Customizable PWM outputs for continuous reading
• Sleep mode for less power consumption

Similar Products:

• IR-Sensor Category

Products That Can Be Used Together:

• Arduino Category


Useful Links/Documents:

• Datasheet
