The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.

Features:

  • Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
  • Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
  • Onboard indicators: quick charge, warning, and power capacity

Specifications:

  • Output voltage: 5V
  • Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
  • Dimension: 65mm × 30mm
  • Mounting hole size: 3.0mm

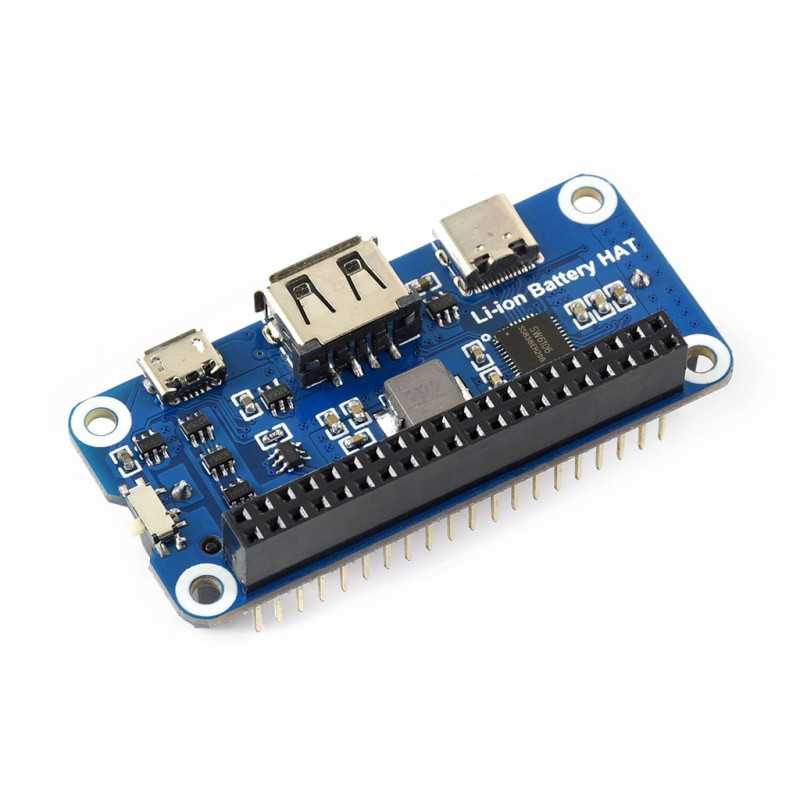

What's on Board:


1-Raspberry Pi GPIO connector: for connecting Raspberry Pi
2-SW6106 power management chip
3-USB Type-C connector: battery charge/power output
4-USB Type-A connector:power output
5-Micro USB connector:battery charge
6-Raspberry Pi power switch
7-Battery warning indicator: on when the battery is reverse
8-Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9-Quick charge indicator: on when quick charging

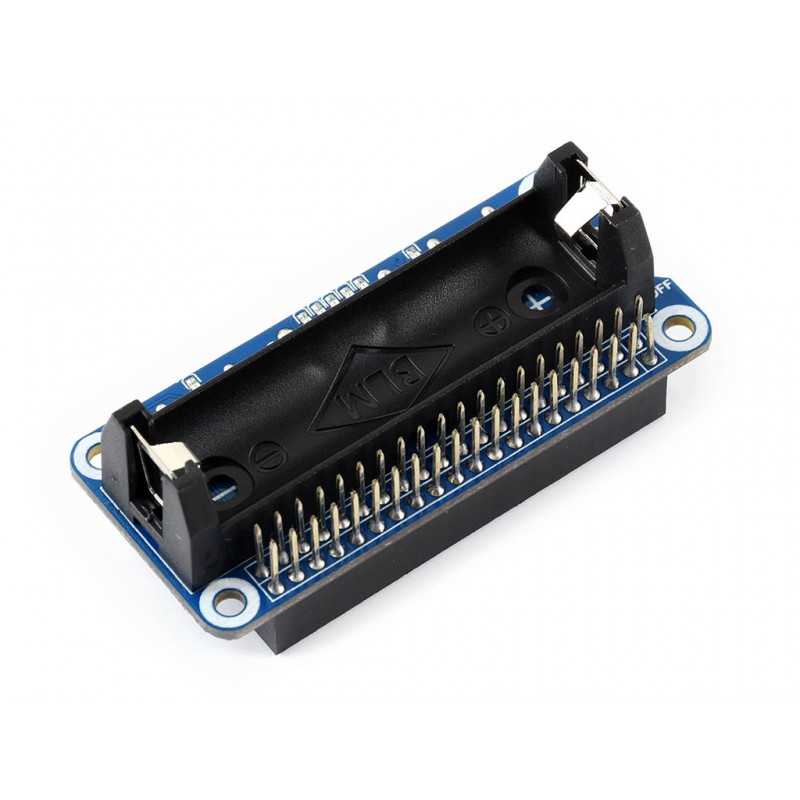

10-14500 battery holder

Dimension:

Documents:

Wiki


PACKAGE CONTENT:

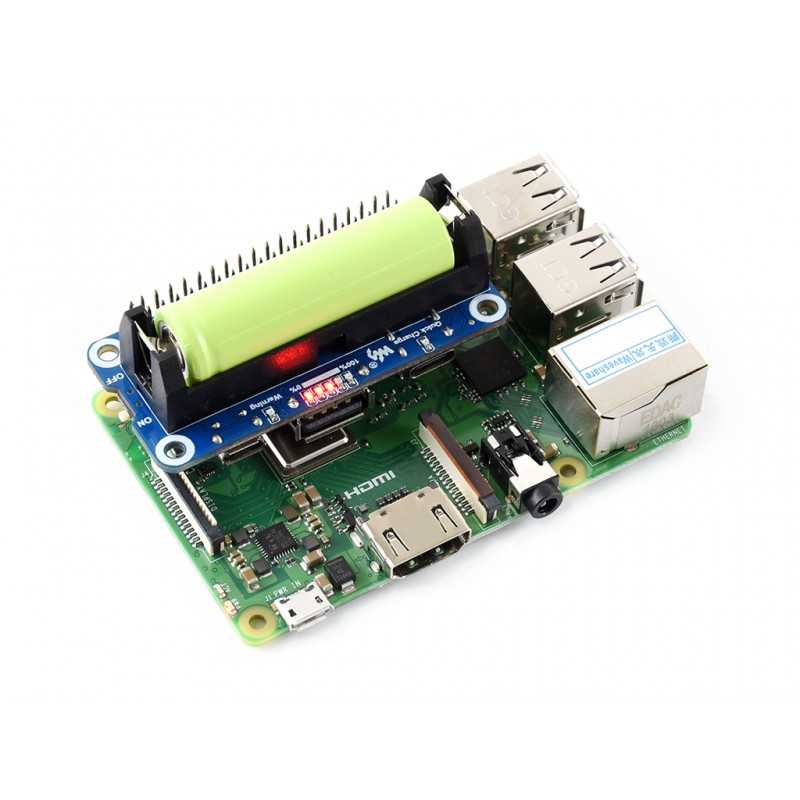

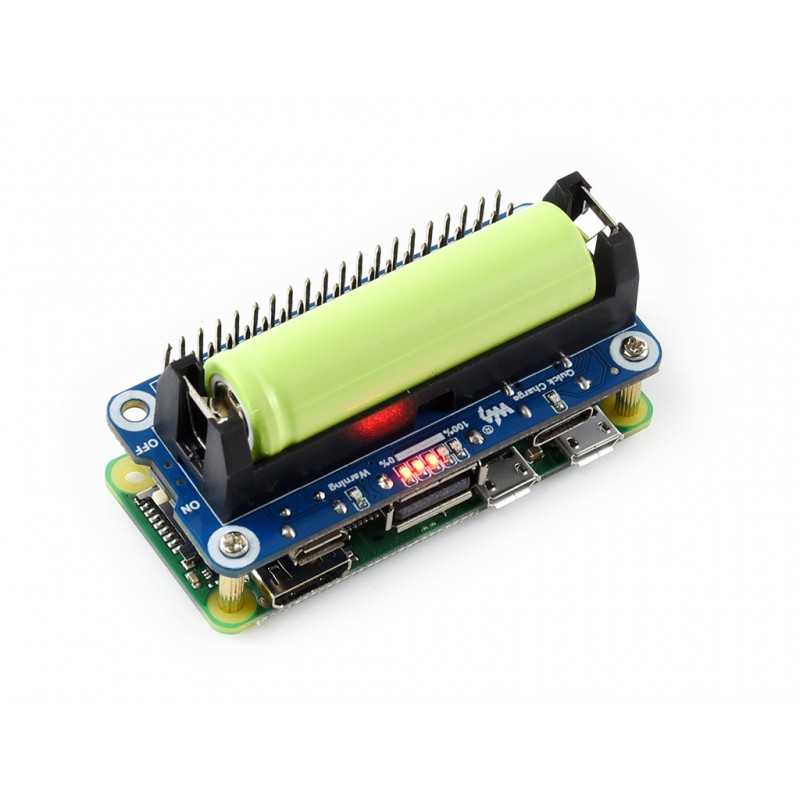

Note: the Raspberry Pi and 14500 battery in the photo are NOT included.

  1. Li-ion Battery HAT x1
  2. RPi screws pack (2pcs) x1
