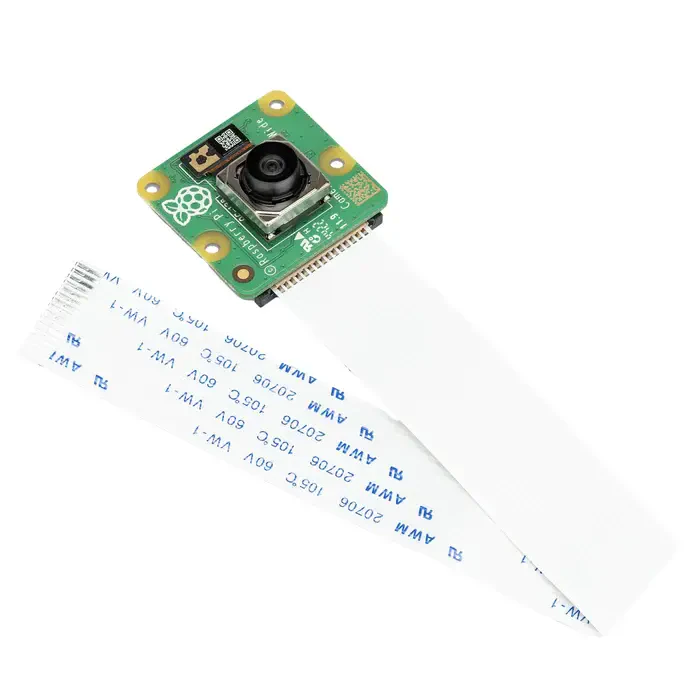

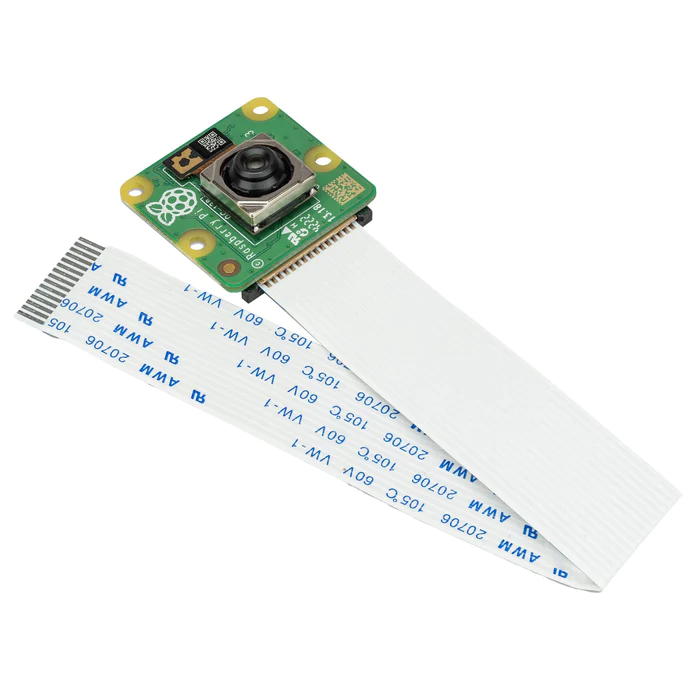

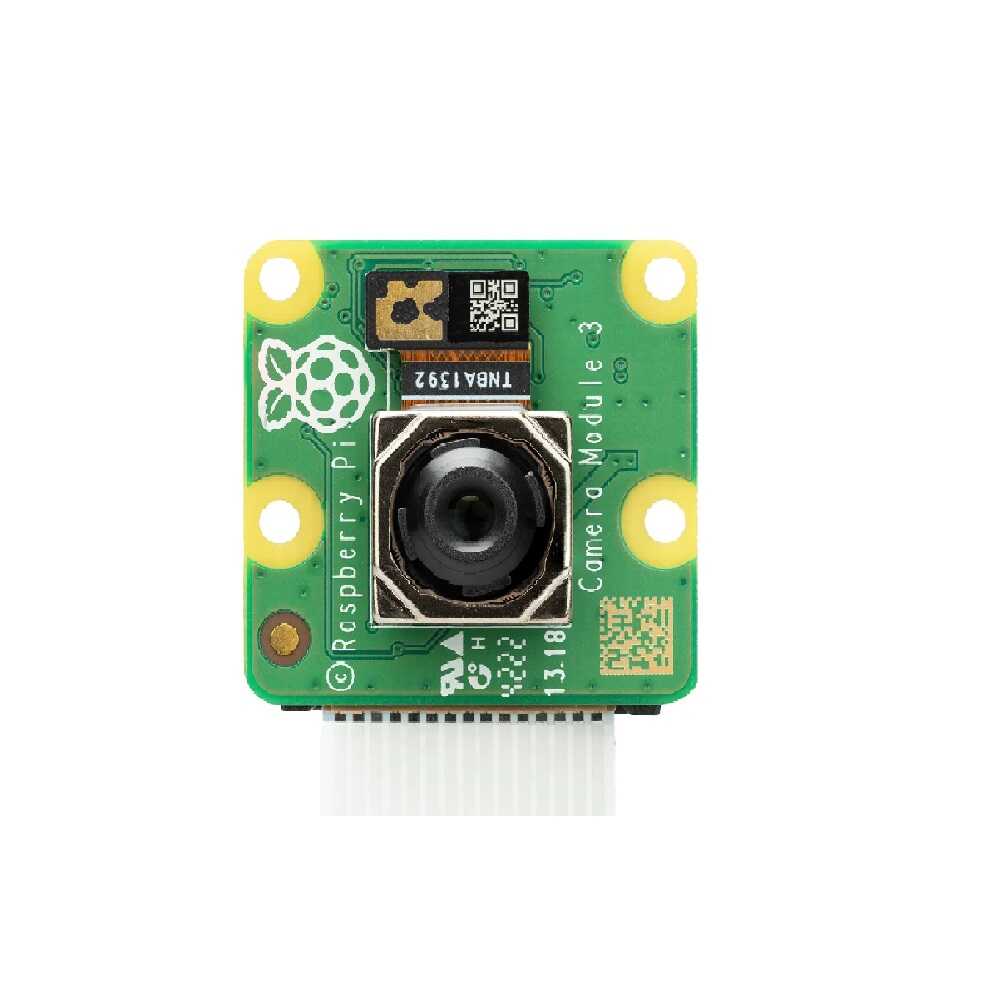

Raspberry Pi Camera Module 3

Raspberry Pi Camera Module 3

Raspberry Pi Camera Module 3 is the most popular and latest camera module in the mainstream Raspberry Pi camera class. Thanks to the improved low light intensity, it provides good photography and output in low light. In addition, this module, which makes it easy to get a sharp picture output, also has High Dynamic Range (HDR) support, which expands the color and contrast range in the output, as it also has an autofocus system. This version has a standard lens feature.

If you want to use it with Raspberry Pi 5, you can choose the Raspberry Pi Camera Cable Standard - Mini - 200mm product.

Raspberry Pi Camera Module 3 Technical Specifications:

• Image Sensor: Sony IMX 708
• High Signal to Noise Ratio (SNR)
• Built-in 2D Dynamic Fine Pixel Correction (DPC)HDR Mode

• CSI-2 Serial Data Output
• 2-Wire Serial Communication
• 2-Wire Series control for Focus Mechanism
• Phase Detection Autofocus (PDAF) for Fast Focusing
• Resolution: 11.9 Megapixels
• Video Modes: 1080p50 / 720p100 / 480p120
• Output: RAW10
• IR Cut Filter: Integrated
• Cable Connector: 15 x 1 mm FPC
• Ribbon Cable Length: 150 mm
• Horizontal / Vertical Dimension: 4608 x 2592 Pixels
• Pixel Size: 1.4μm × 1.4μm
• Sensor Size: 7.4mm
• Size: 25 x 24 x 11.5mm
• Compatibility: Compatible with all Raspberry Pi boards. (Except RPi 5)
