LilyPad is quite handy and versatile product. It has a large audience of products that can be sewed. You can use it on your dresses, bag or fabric, in short any fabric that can be sewed by sewing LilyPad.

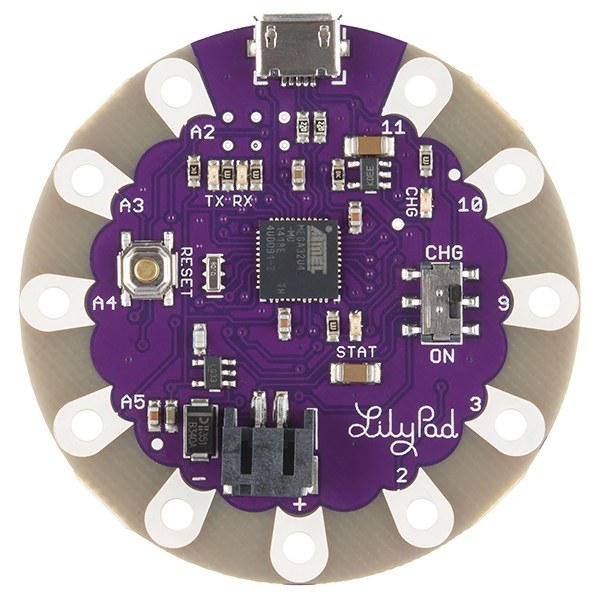

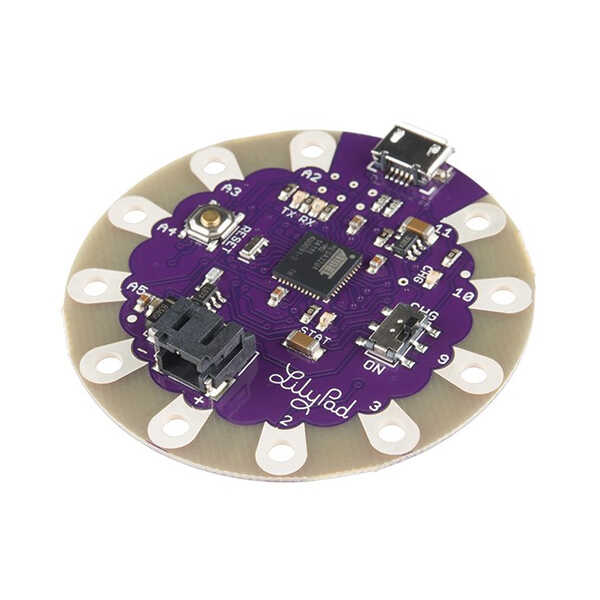

There is ATmega32u4 processor which is also on Arduino Leonardo and Micro boards on its own. Arduino bootloader is installed on it. In this way, it can be programmed through on connecting to computer directly via USB cable on the Arduino IDE. Also there is a JST socket on the board for 1S LiPo battery connection. LiPo battery can be charged through charging circuit which is on the board. (The switch that in on the board must be in CHG position.)
The board can be introduced as peripherals such as mouse or keyboard to a computer through to use ATmega32u4 processor. The output pins are sorted around the LilyPad. In this way, it can sewed to clothes or fabric eeasily. Using conductive thread for the sewing process will make the job quite easier.
There are available lots of modules which are used with LilyPad’s product. LED, switch, battery slot, button can be sewed. Click for reviewing those products.
Features:

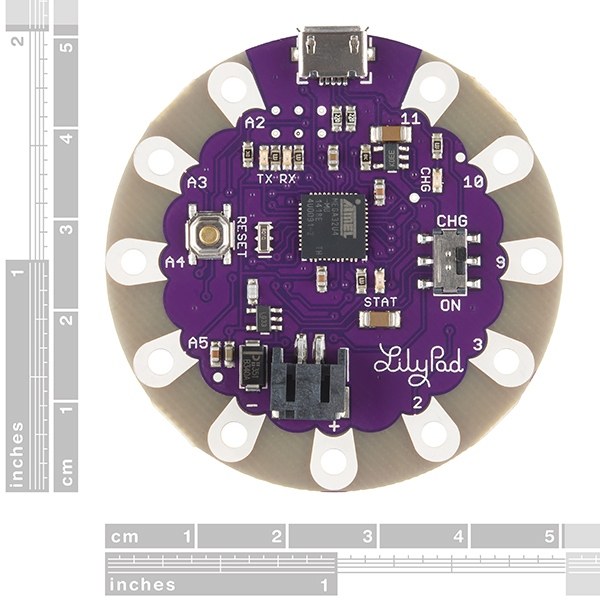

- 50mm outer diameter
- Thin 0.8mm PCB
Documents:
EN
