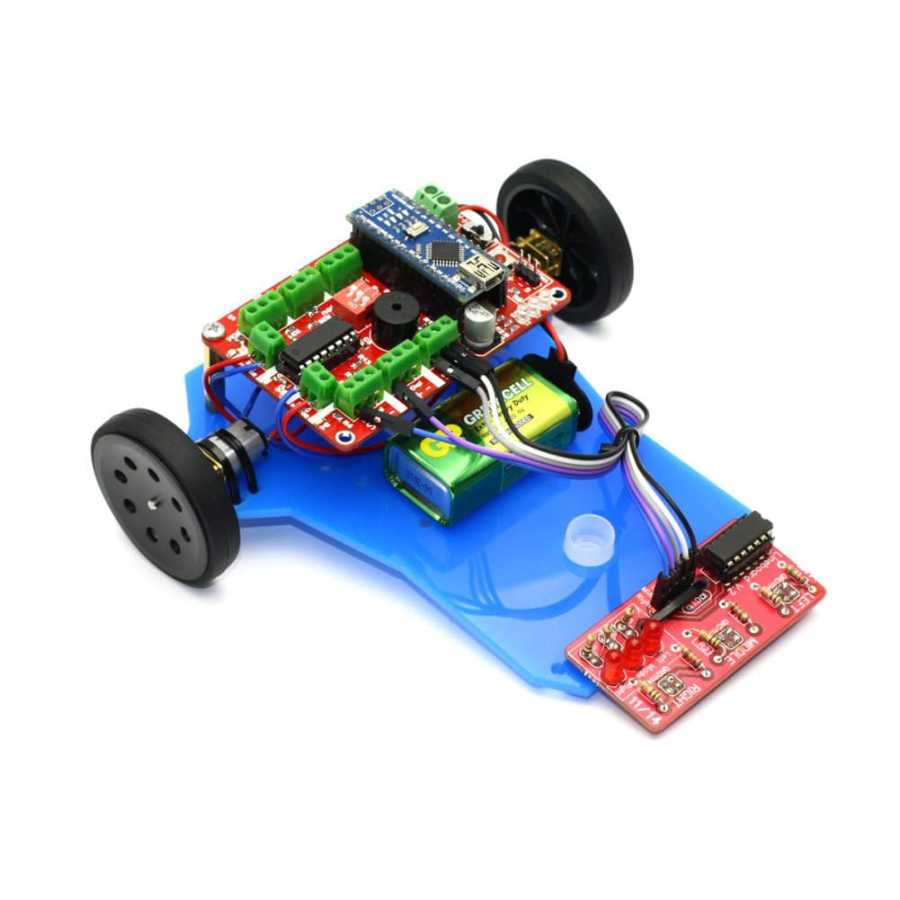

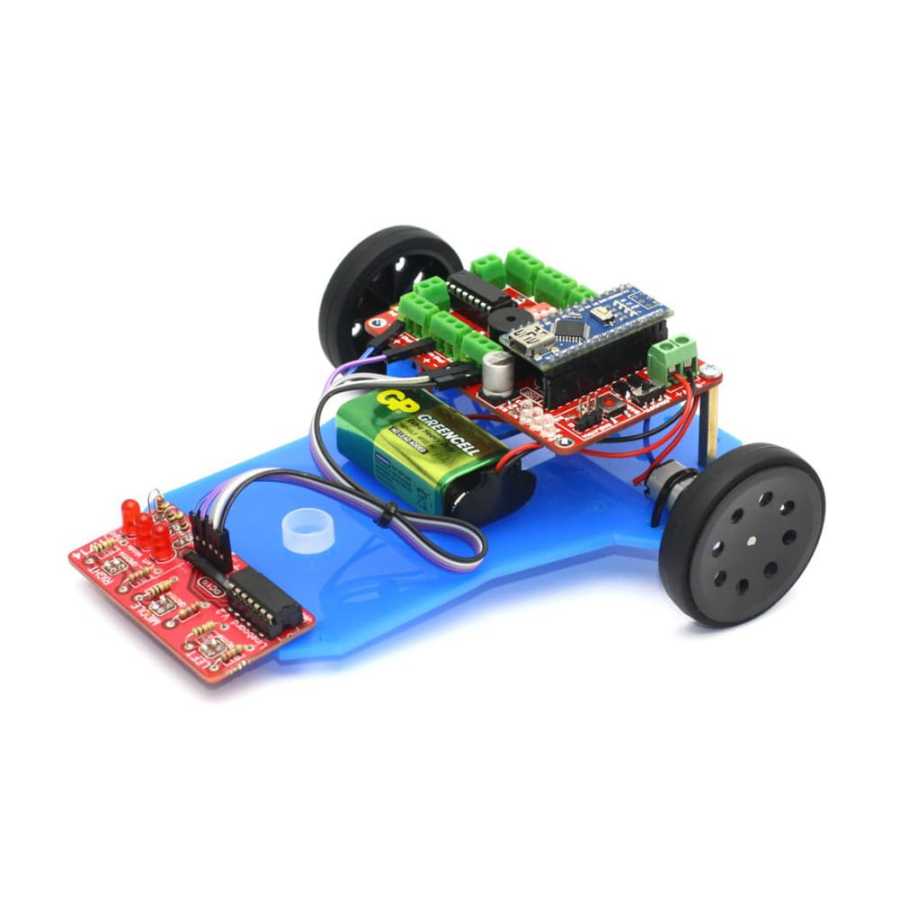

Line Follower Robot Kit - Çigor (Disassembled)

Çigor line follower robot kit provides control with Arduino Nano development card. The kit has a high sensitivity capability with a triple sensor board.

The Çigor robot's Arduino codes are shared for free and is an Arduino code that can be developed as open source.

Thanks to the integrated L293D motor drive on the rocart card, it supports 600mA current per channel. It supports 7V - 14V voltage and reverse voltage protection is available. On the card, there is one buzzer, three LED, triple dip switch. Klamens connections do not require any soldering during assembly.

The installation time is between 20 and 40 minutes.

Note: There is no battery in the set.

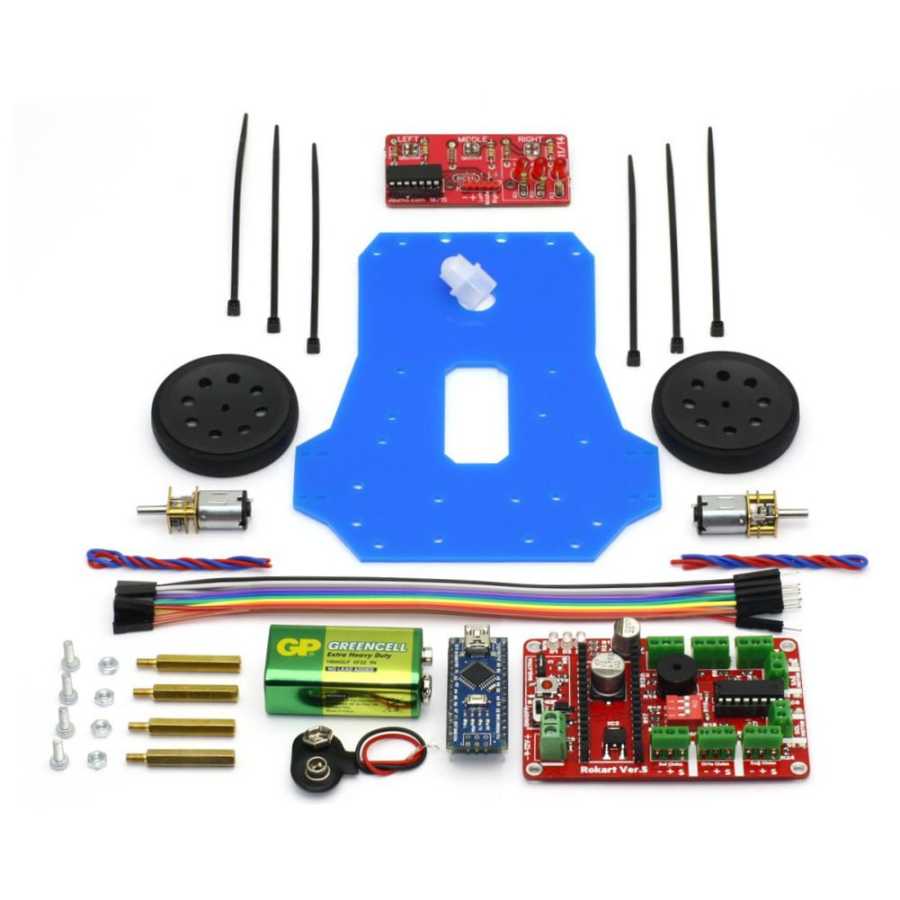

Package Included :

• 1 x Çigor Chase

• 2 x Five Female-Male Jumper Cable
• 2 x Triple Line Sensor Board

• 1 x Arduino Nano Rokart Shield

• 1 x Arduino Nano Clone - with USB Cable - (USB Chip CH340)

• 2 x 6V 180 Rpm Gearmotor Micro DC Motor

• 4 x Two Different Color Short Cable

• 2 x 32x7 pololu Wheel

• 1 x Micro Drunk Caster

• 5 x Plastic Clamp

• 1 x 9V Battery Header
