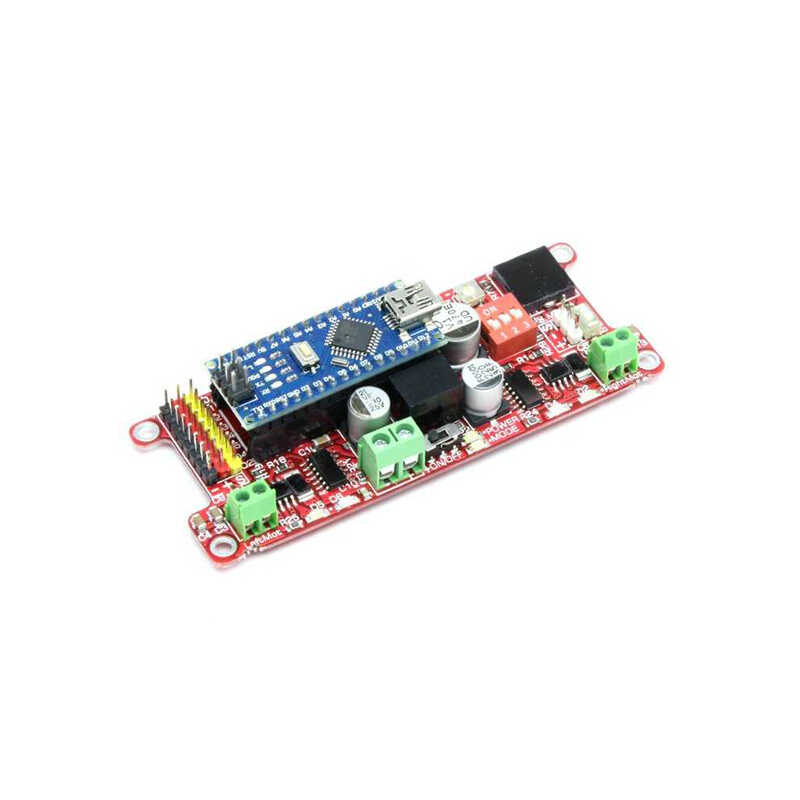

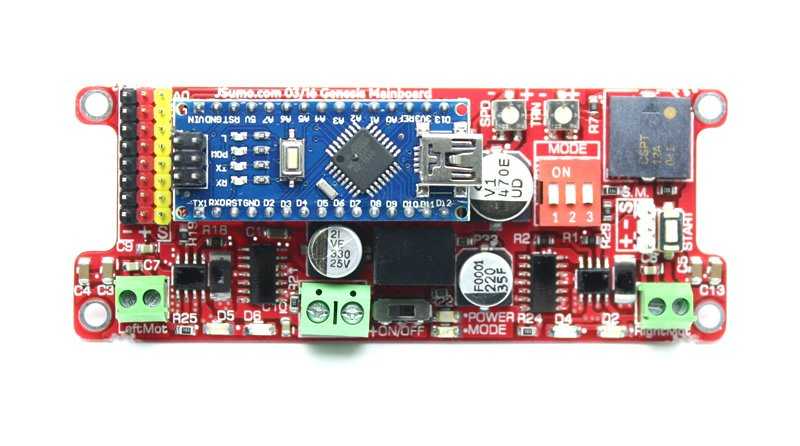

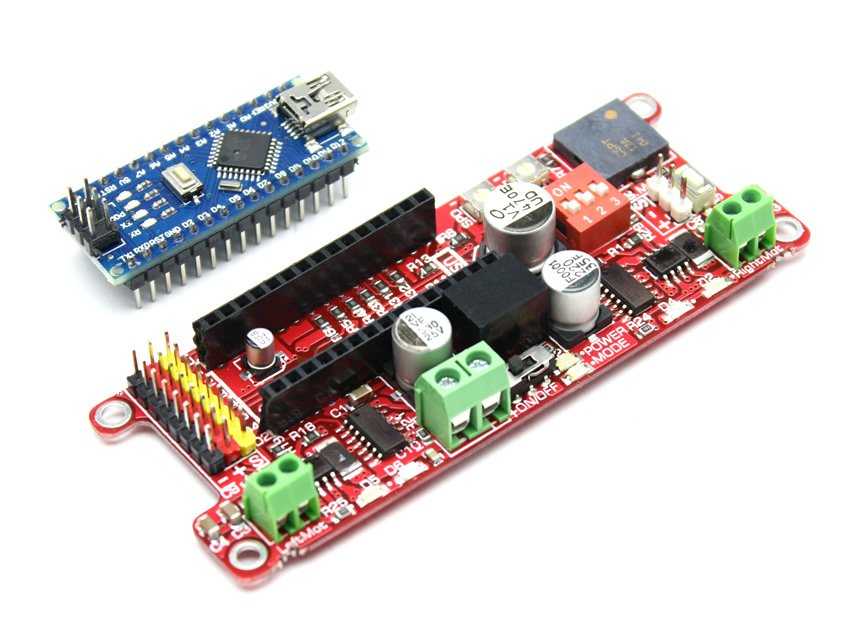

Notify me when its in stockGenesis Arduino Robot Card is a kind of Arduino Nano Shield. Thanks to the small-sized and highly usable Genesis Arduino Robot Card, you'll be able to easily perform mini-sumo robots, line-tracking robots, and small and medium-sized robots that can be flocked with this card.Below are the Arduino Nano and Genesis Arduino Robot Card pin layout table.
D0 | Empty | D11 | Right Motor PWM (Right Motor Speed Control) |
D1 | Empty | D12 | Left Motor Direction Control |
D2 | Empty | D13 | Right Engine Direction Control |
D3 | Left Motor PWM (Left Motor Speed Control) | A0 | Empty |
D4 | Empty | A1 | Empty |
D5 | Dipswitch 1 Girişi | A2 | Empty |
D6 | Dipswitch 2 Girişi | A3 | Empty |
D7 | Dipswitch 3 Girişi | A4 | Empty |
D8 | Mode LED (Blue Led) | A5 | Empty |
D9 | Speaker | A6 | A6 Trimpot |
D10 | Start Button & Module Input | A7 | A7 Trimpot |
You will be able to incorporate your sensors into your project without difficulty with 8 sensor inputs on the card and the GND, VCC, Signal pins positioned side by side.
You can define eight separate start commands to your sumo robots with the two-position Dipswitch on the product. Thanks to two internal trimpots, the engine speed settings will not need to be edited software.
