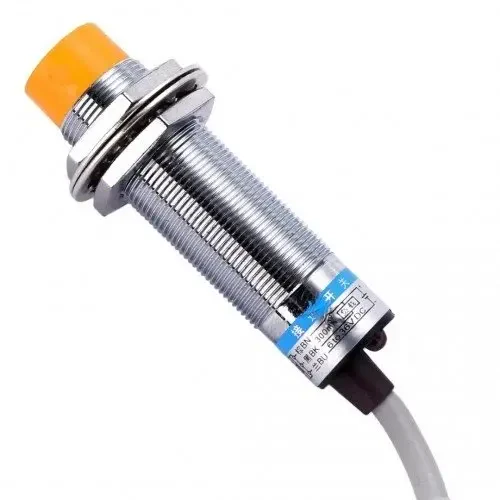

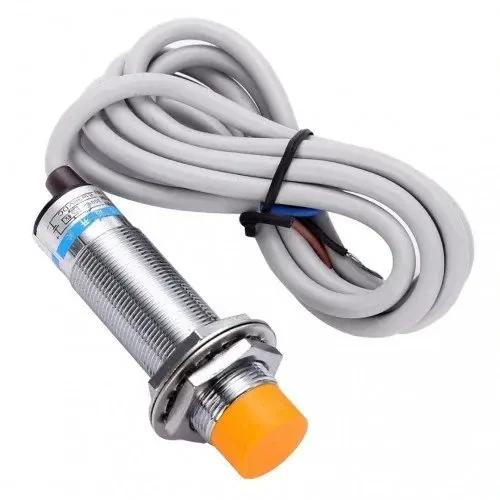

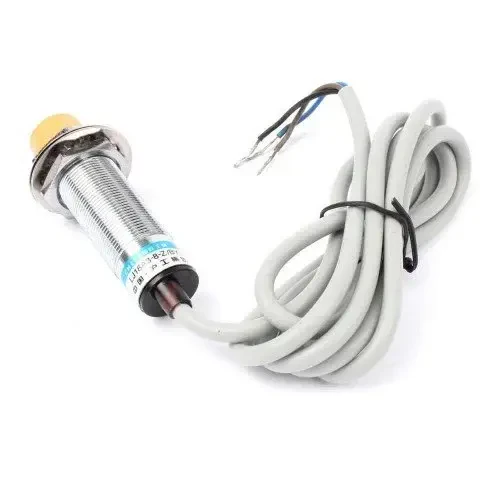

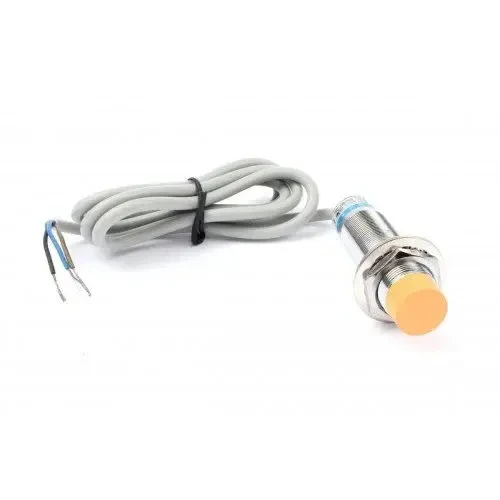

LJ18A3-8-Z/AX Inductive Distance Sensor

LJ18A3-8-Z/AX Inductive Distance Sensor

LJ18A3-8-Z/AX Inductive Distance Sensor, They are devices that can detect non-contact metal objects up to 8 mm. As their electrical feature, they work with DC 6-36V voltage, together with using capacitance, that is, energy storage features, depending on a change in the electric field around the active face of the sensor.

LJ18A3-8-Z/AX Inductive Distance Sensor Technical Specifications:

• Dimension: 6.5 x 3 mm
• Weight: 70g
• Sensor Diameter: 18mm
• Detection Distance: 8mm
• Supply Voltage: DC 6 / 36V
• Output Current: 300mA
• Cable Length: 105 cm
• Outer material: Metal / Alloy
• Output: NPN
