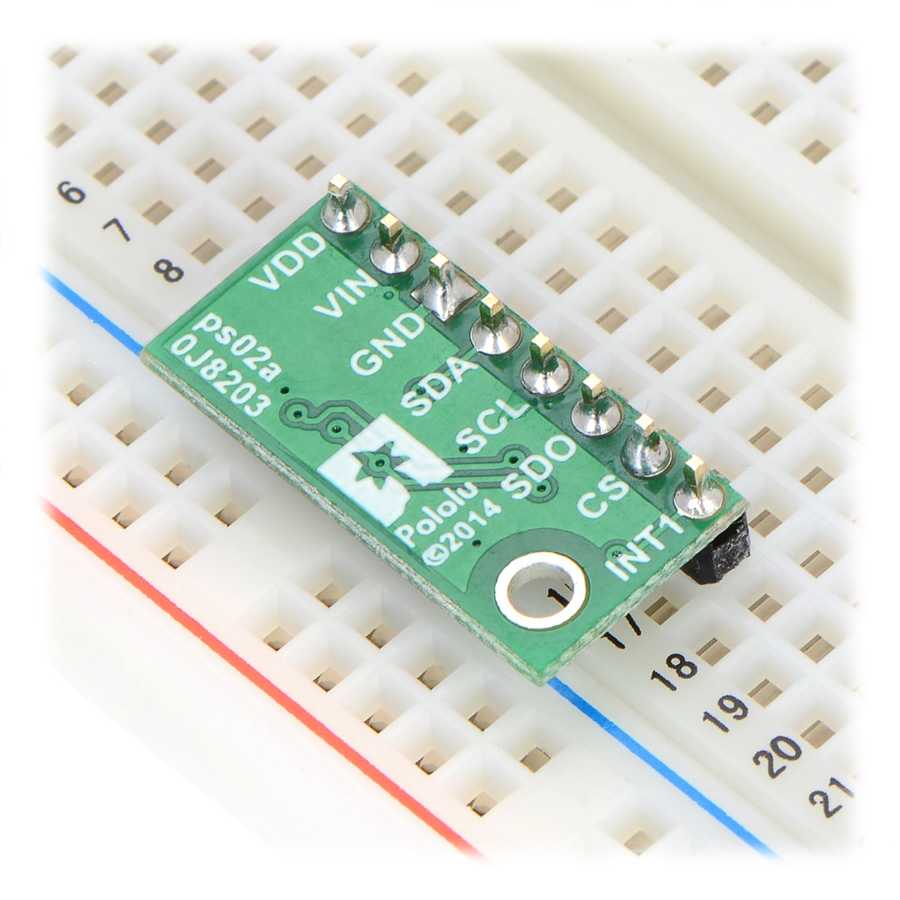

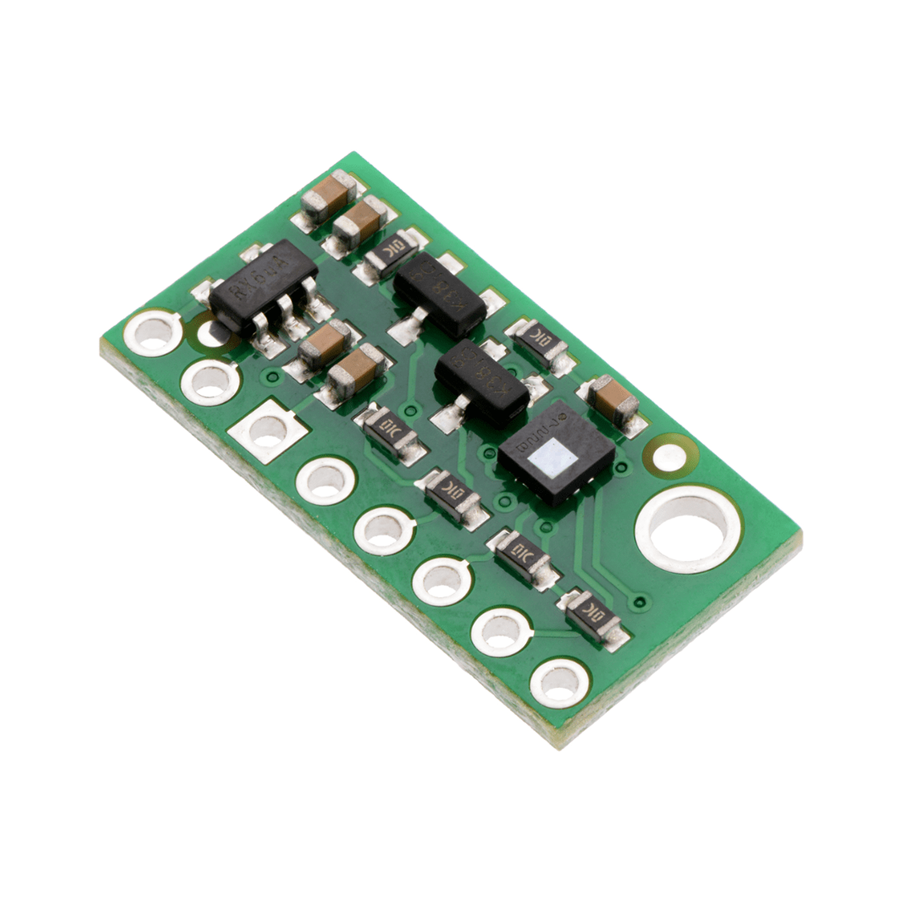

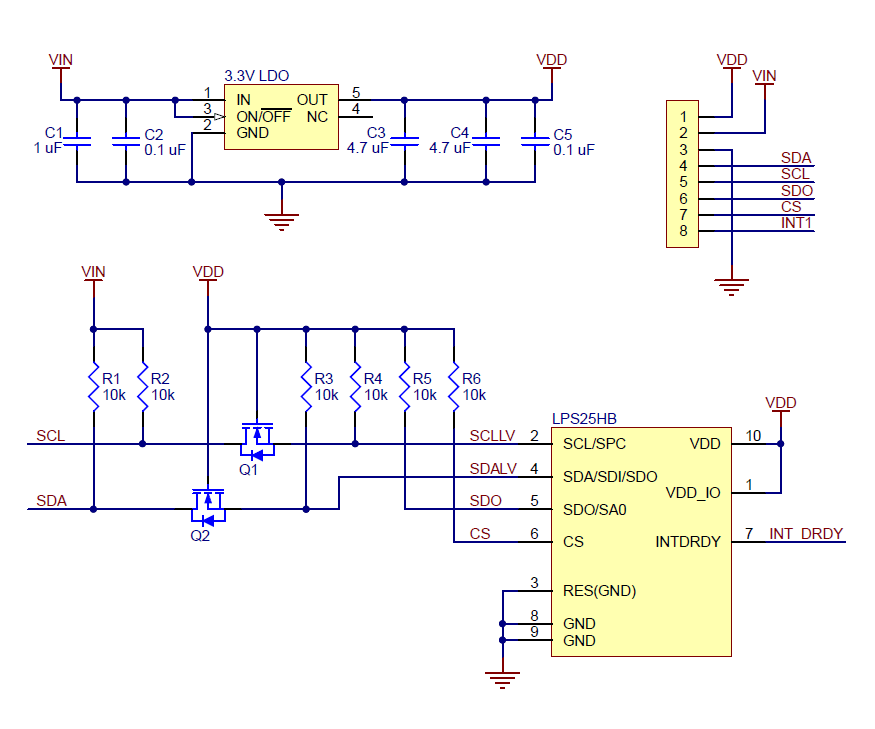

This carrier for ST’s LPS25HB digital barometer measures pressures from 260 mbar to 1260 mbar (26 kPa to 126 kPa) with absolute accuracy down to ±0.2 mbar (0.02 kPa) and typical RMS noise of 0.01 mbar (1 Pa) in high-resolution mode. These pressures can easily be converted to altitudes. The board has a 3.3 V linear regulator and integrated level shifters that allow it to work over an input voltage range of 2.5 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards. The sensor offers I²C and SPI interfaces.

Features:

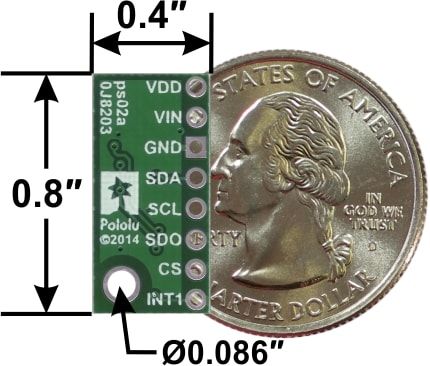

  • Dimensions: 10 x 20 x 3 mm
  • Weight (without header pins): 0.5g

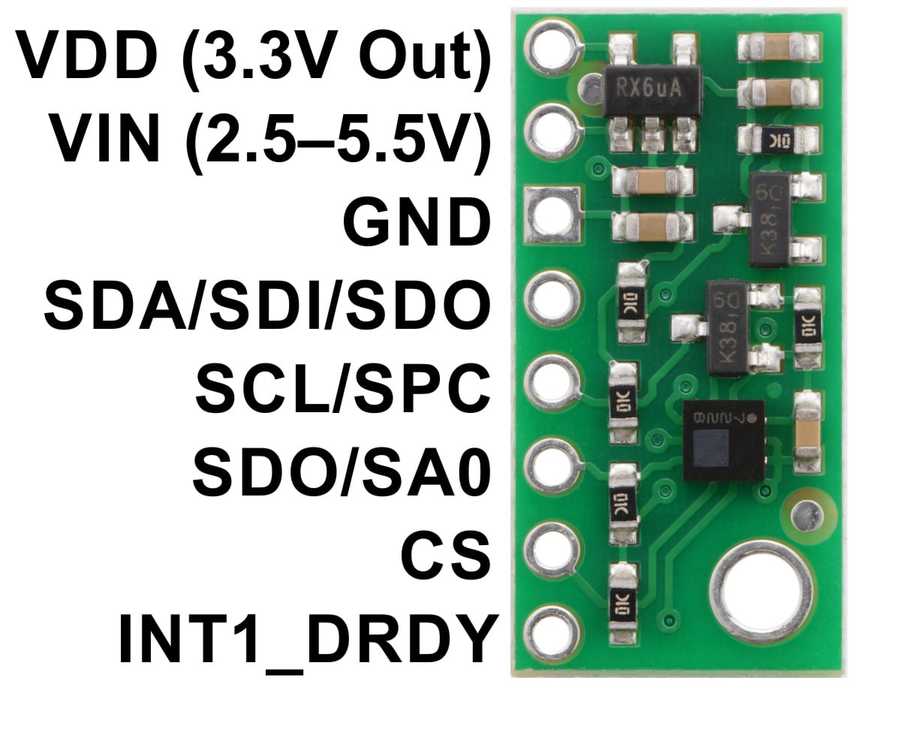

  • Operating Voltage: 2.5-5.5V
  • Supply Current: 2mA
  • Output Format (I2C/SPI): 24-bit pressure reading
  • Sensitivity Range: 260 - 1260 mbar

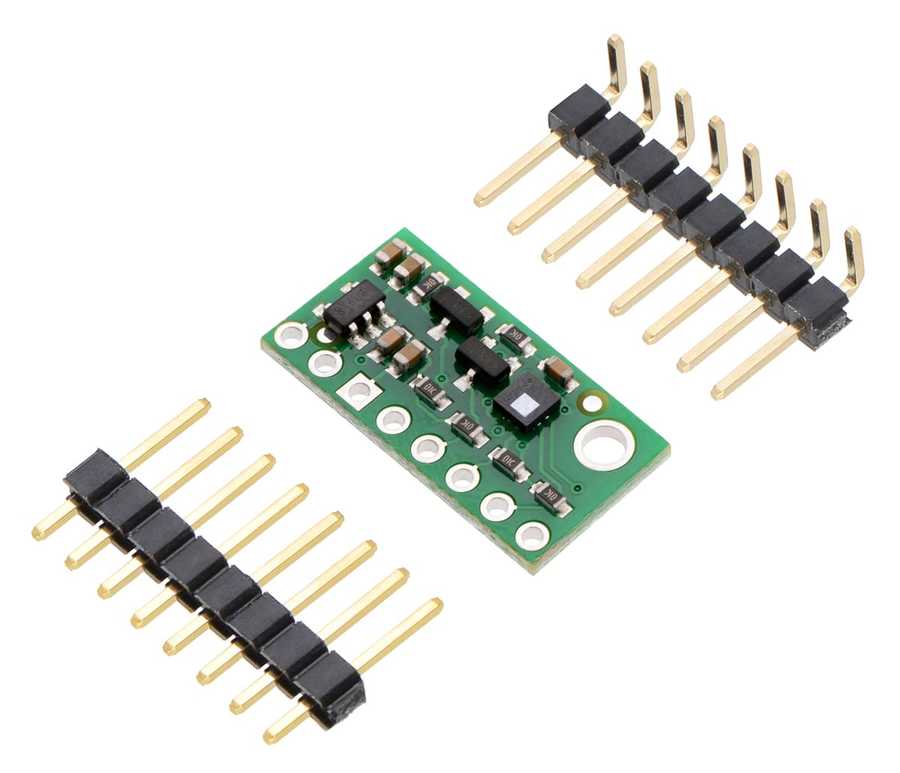

Package Contents: Carrier board, 1x8 strip of headers, 1x8 strip of 90° headers

14753
LPS25HB Pressure/Altitude Sensor
LPS25HB Pressure/Altitude Sensor
:
294.37 TL + VAT
:
