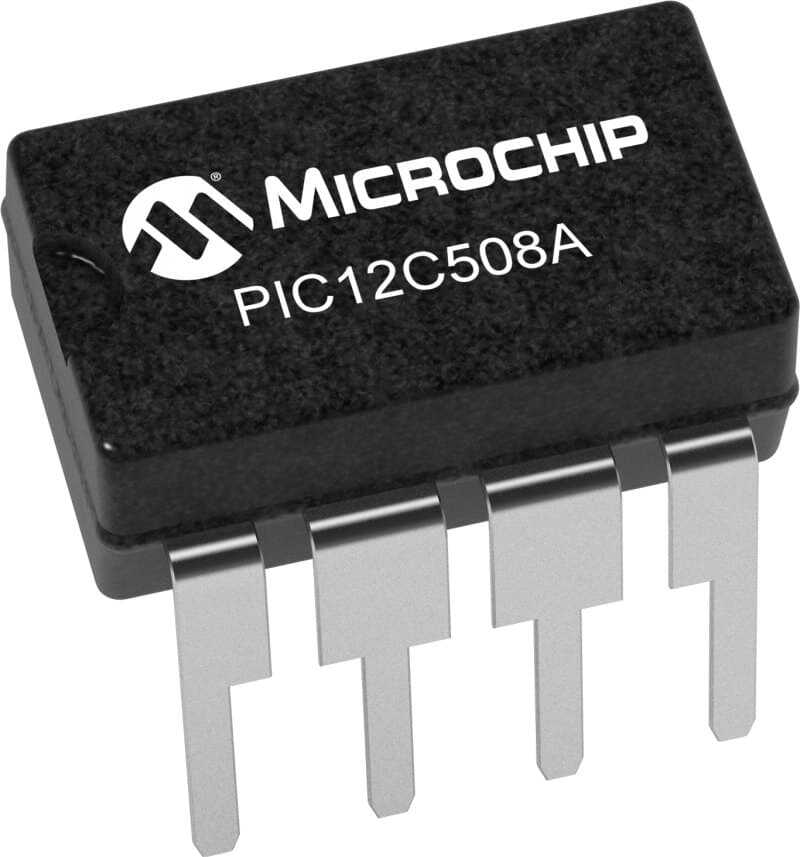

PIC12C508A 04/P 8-Bit 4MHz Microcontroller DIP8

PIC12C508A 04/P 8-Bit 4MHz Microcontroller DIP8

PIC12C508A Microcontroller, This PIC12 series microcontroller produced by Microchip company has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 4MHz and has a DIP8 sheath. This microcontroller with OTP memory type works in the input voltage range of 3V/DC to 5.5V/DC and temperature range from -40C to +125C.

PIC12C508A Microcontroller Technical Specifications:

• Series: 12F Series
• Model: PIC12C508A
• Input Voltage: 3V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +125C
• Memory Type: OTP
• Program Memory Size: 768Byte (512 x 12)
• Ram Size: 25Byte
• EEPROM Size: NO
• Number of Bits: 8-Bit
• Speed: 4MHz
• Total Number of Inputs-Outputs: 5
• Sheath Type: DIP8 - 7.62mm
• Mounting Type: THT
• Pin Spacing: 2.54mm
• Width: 6.35mm
• Length: 9.27mm
