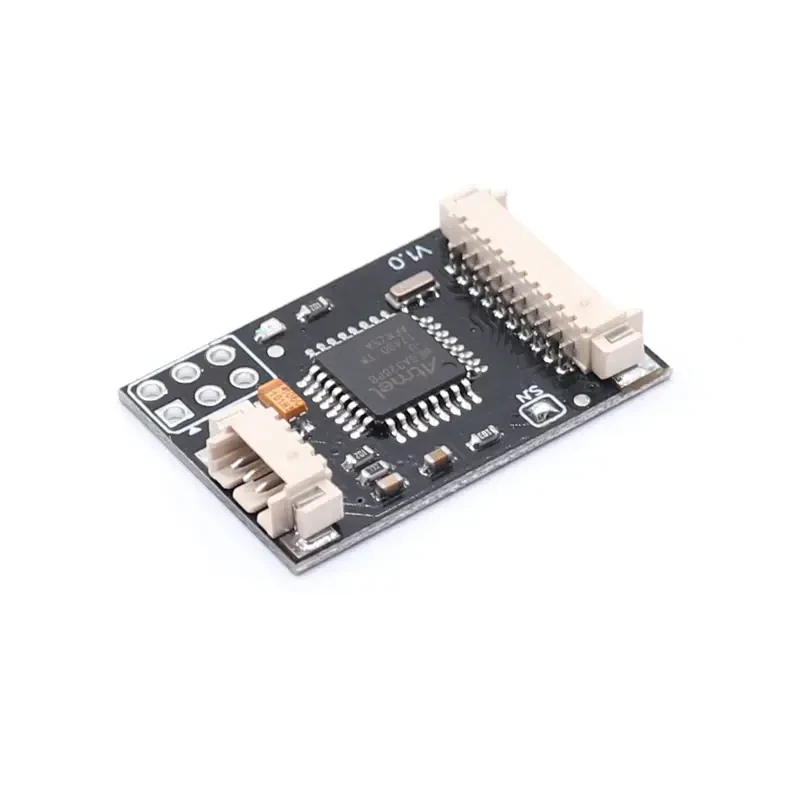

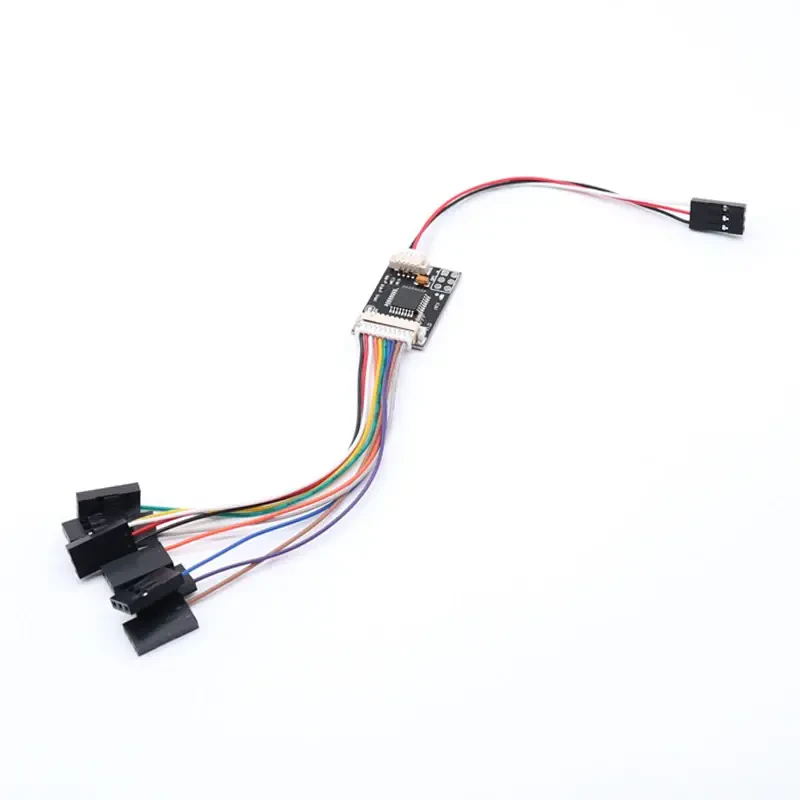

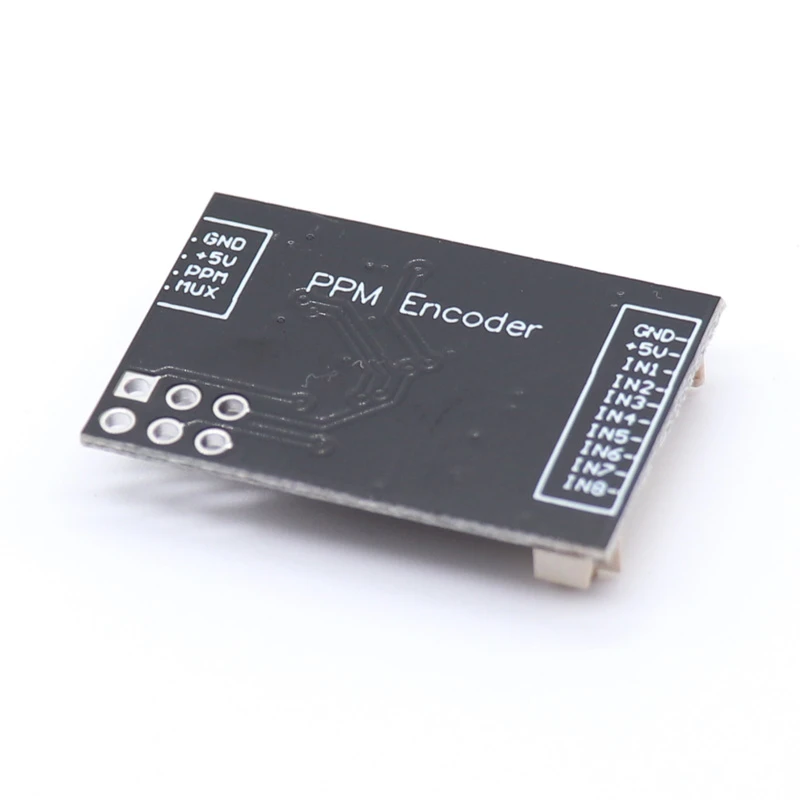

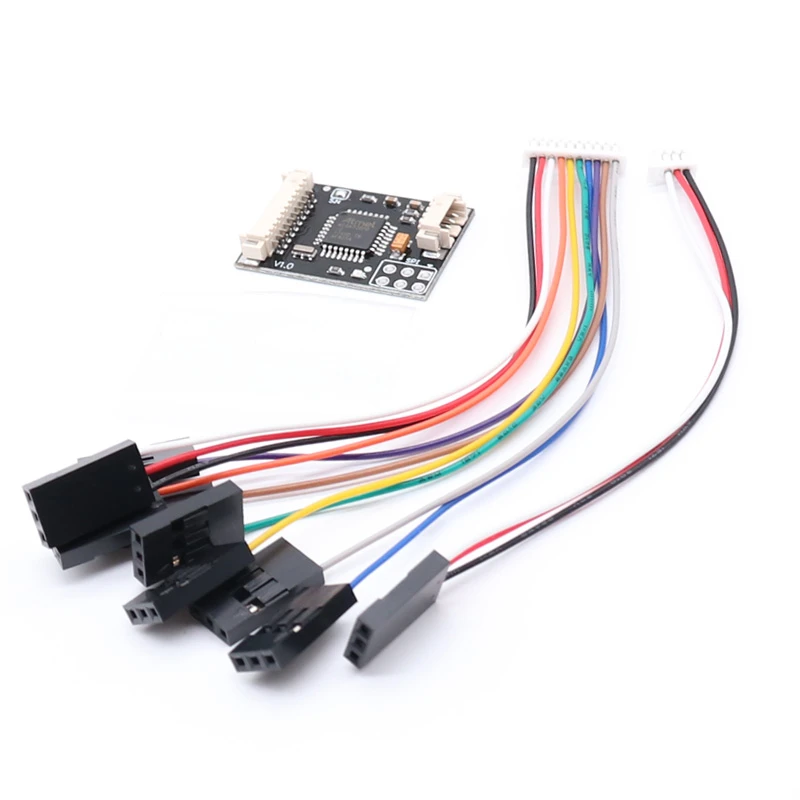

Pixhawk Flight Control Board PPM Encoder V1.0 - 8 Channels

PPM Encoder V1.0 for Pixhawk Flight Control Board - 8 Channels

The PPM Encoder plugs into the PWM servo output ports of any R/C receiver and encodes them into a PPM pulse suitable for many autopilots (e.g. Pixhawk). No modifications to the R/C receiver are necessary.

The entire project is based on the ATMEL ATMEGA328p AVR processor and all timing is done within interrupts, thus optimizing accuracy and stability.

The design of the PPM Encoder is based on the Paparazzi PPM Encoder.

PPM Encoder V1.0 - 8 Channel Technical Specifications for Pixhawk Flight Controller Board:

• Dimensions: 28 x 19 x 5 mm
• Net Weight: 8g
