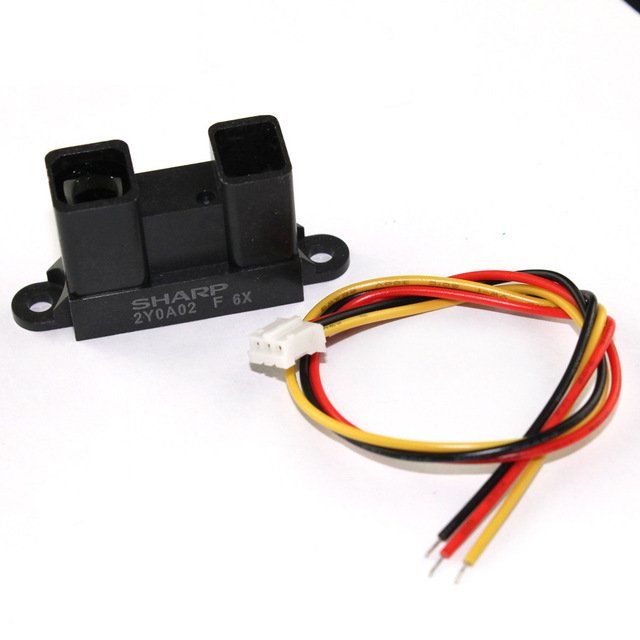

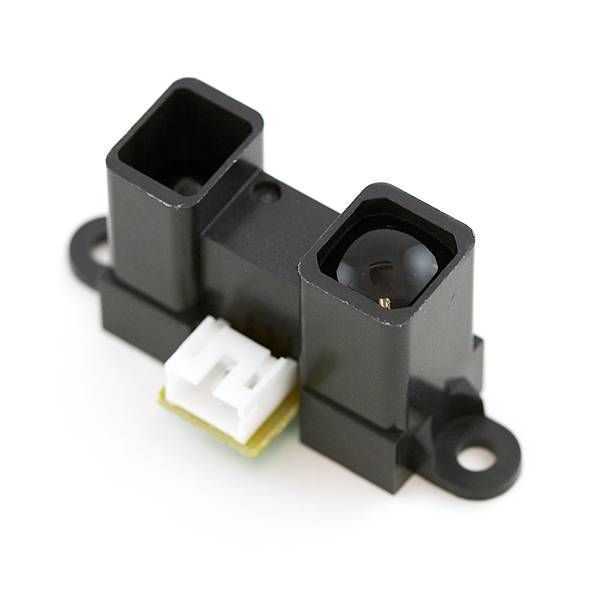

Sharp GP2Y0A02YK0F is an easy to use analog sensor that can detect the objects within the 20-150cm range. This is a long range sensor.

Sharp sensors are popular among the distance sensors. GP2Y0A02YK0F provides a better performance according to it's relevants.

You can use this sensor by connecting it to a microcontroller's analog pin. The sensor's voltage output according to distance is given below.

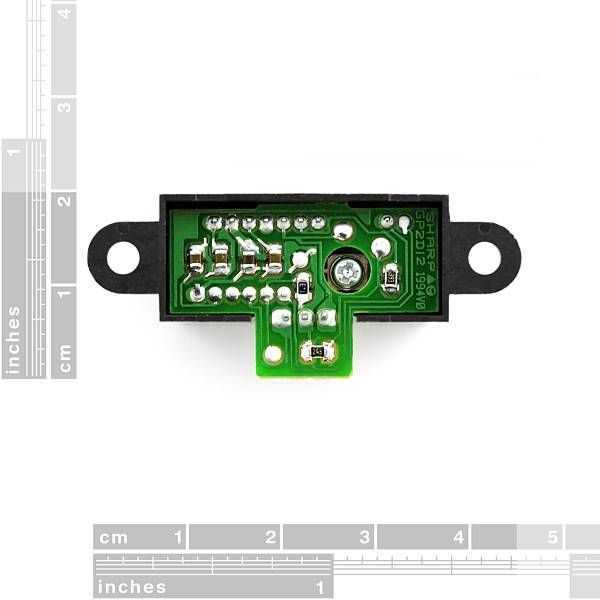

The sensor's pins shown below are, starting from left, +5V, GND and data out.

Features:
  • Operating Voltage: 4.5V to 5.5V
  • Average Current Consumption: 33mA
  • Distance Measuring Range: 20cm to 150cm
  • Output Type: Analog Voltage
  • Output Voltage Differencial Distance Owerflow Range: 2.0V
  • Response Time: 38±10ms

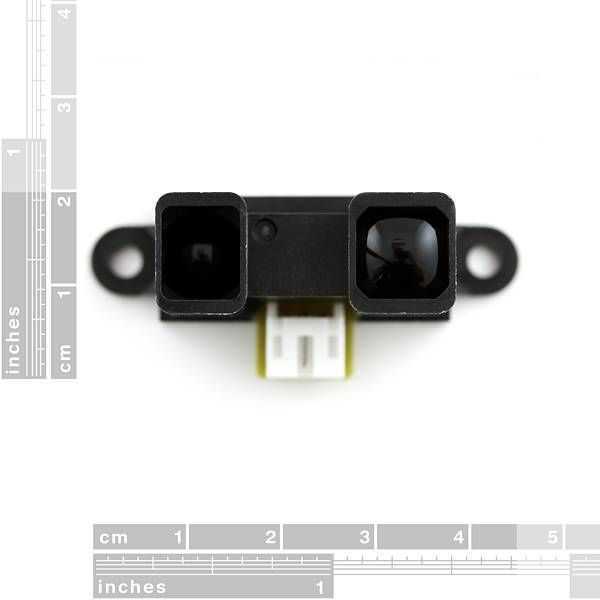

  • Dimensions: 29.5x13.0x21.5 mm
  • Weight: 4.8 g

* To get rid of the noises in power line you can connect a 10uF or higher capacitor between Vcc and GND and you wil get a more stable output.

Documents:

Warranty
0
13059
Sharp GP2Y0A02YK0F Infrared Distance Sensor 20-150cm
Sharp GP2Y0A02YK0F Infrared Distance Sensor 20-150cm
:
289.53 TL + VAT
:
347.44 TL
