VL53L0X Time-of-Flight Distance Sensor Carrier with Voltage Regulator, 200cm Max - PL2490

Name: VL53L0X Time-of-Flight Distance Sensor Carrier with Voltage Regulator, 200cm Max - PL2490
Brand: Pololu
SKU: 16586
Price: 680.67 TRY
Availability: OutOfStock

Brand

: Pololu

Product Code

: 16586

Ölçüm Parametresi

: Mesafe

Ölçüm Aralığı

: 2m

Çalışma Voltajı

: 2.6-5.5V/DC

Fiyat

: 567.22 TL + VAT

KDV Dahil Fiyat

: 680.67 TL

Out Of Stock

Notify me when its in stock

PURCHASED TOGETHER

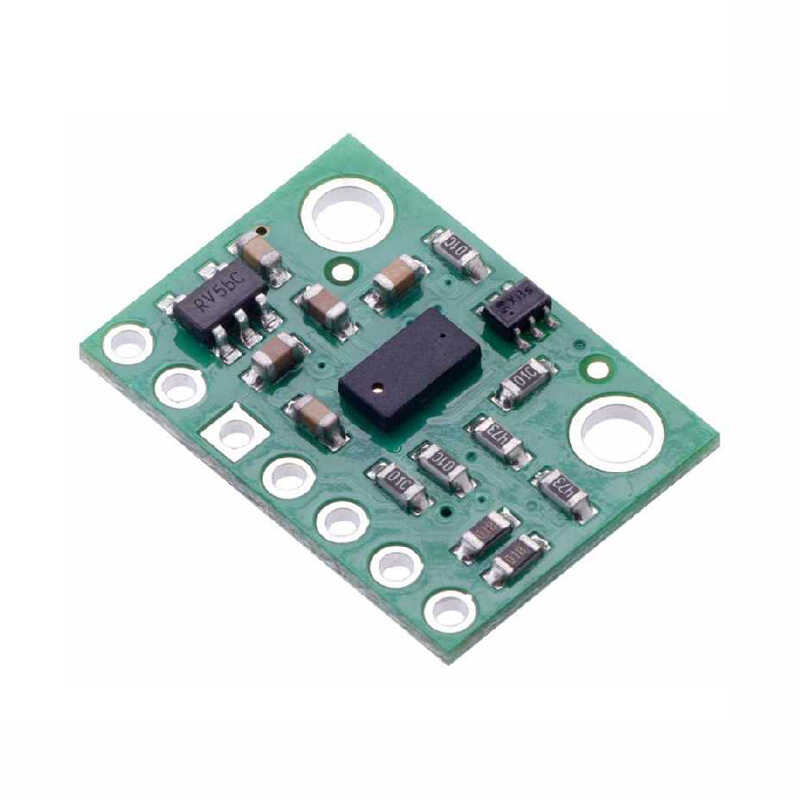

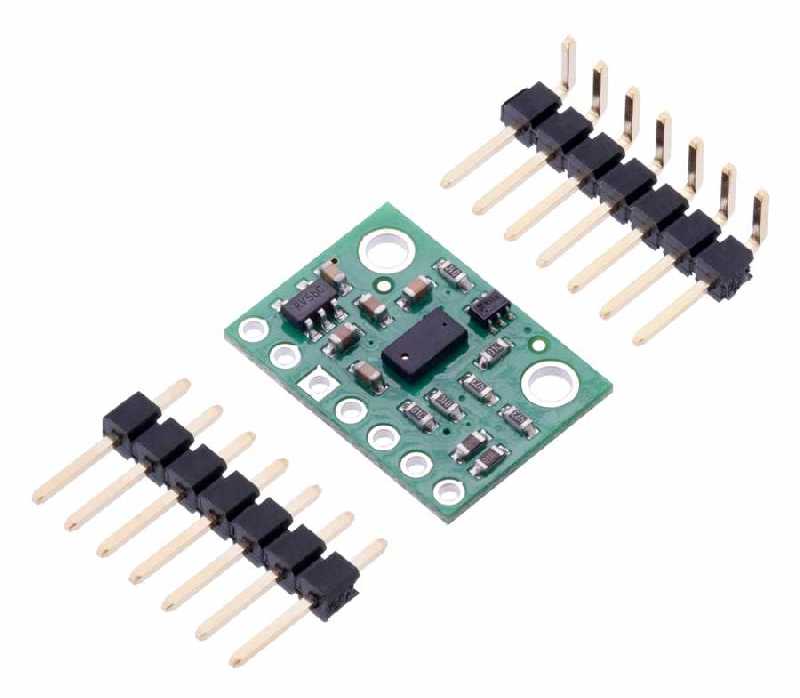

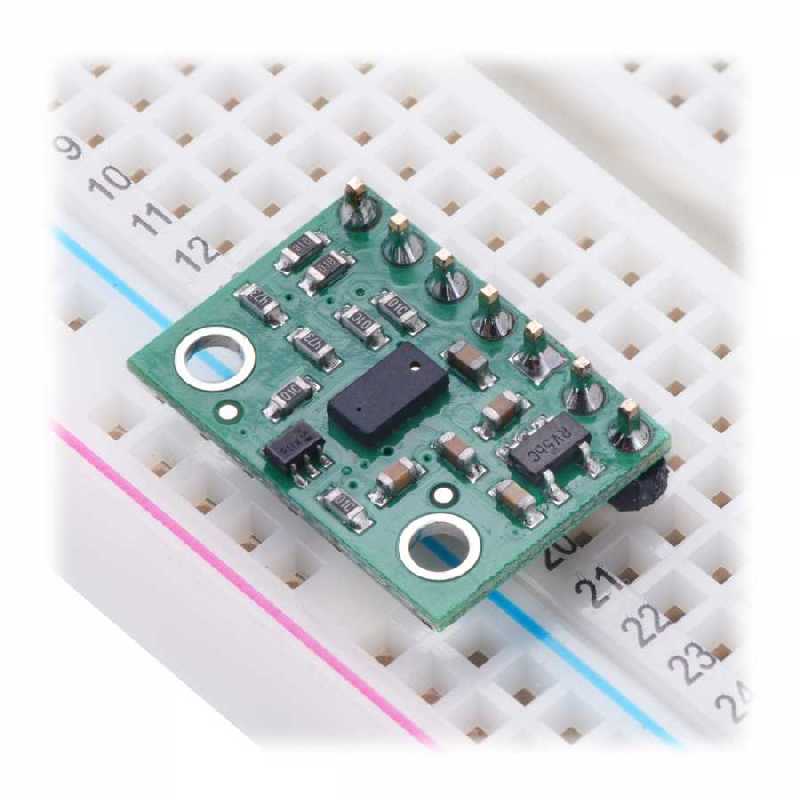

This sensor is a carrier/breakout board for ST’s VL53L0X laser-ranging sensor, which measures the range to a target object up to 2 m away. The VL53L0X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give accurate results independent of the target’s color and surface. Distance measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.6 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Specifications:

Dimensions: 13 mm x 18 mm x 2 mm
Weight (w/o headers): 0.5gr
Operating voltage: 2.6-5.5V
Operating current: 10mA (typical average, peak current can reach 40mA)
Output: Via I2C interface, 16-bit output in milimeters form
Measuring range: Up to 200cm (2m) (effective range may vary depending on configuration, target and environment)
Minimum measuring distance: ~3cm
