Sim868 GSM GPRS Module

Sim868 GSM GPRS Module

SIM868E is a GSM / GPRS module that combines GNSS (GPS / GLONASS / BDS) technologies for global positioning. This quad-band module supports interfaces such as UART, USB 2.0, GPIO. Thus, it provides a lot of integration possibilities in your projects.

Technicial Specifications:

• Frequency Bands: 850/900/1800/1900MHz
• GPRS multi-slot class: 11/10

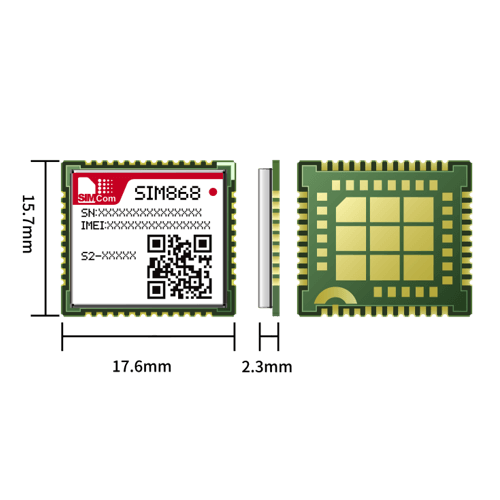

• Dimensions: 17.6*15.7*2.3mm
• Weight: 1.5±0.1g
• Supply voltage: 3.4 ~ 4.4V
• Operation temperature: -40℃ ~ +85℃
• Compliant GSM phase 2/2+:
• Class 4 (2W @ 850/900MHz)
• Class 1 (1W @ 1800/1900MHz)
• Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)
• Low Power consumption
• GPRS mobile station class B
