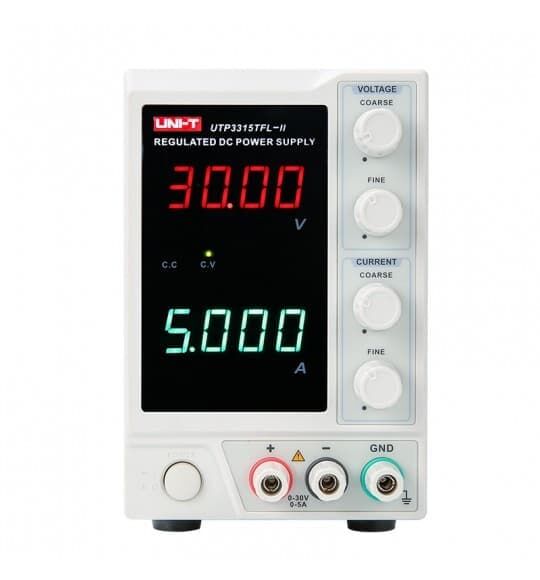

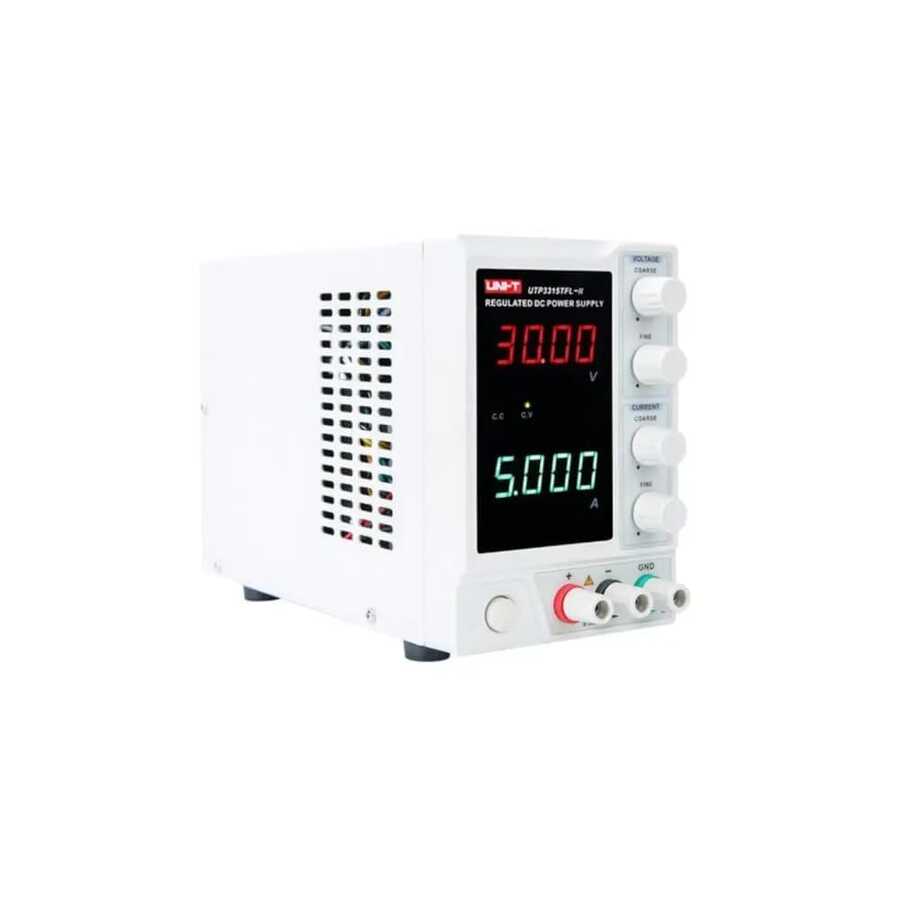

UNIT UTP3315TFL-II Portable DC Power Supply - 30V 5A (No Calibration)
The UNIT UTP3315TFL-II Portable DC Power Supply is designed to accurately test virtually any electronic circuit, system, these DC power supplies essential for testing. The UTP3315TFL-II is a single channel linear power supply. It is exactly what you need for your DIY electronics hobbies, productions, testing and other applications.
UNIT UTP3315TFL-II Portable DC Power Supply Technical Specifications:
- Input Voltage: 110-220V/AC
- Input Frequency Value: 50-60Hz
- Output Voltage: 30V/DC
- Output Current: 5A
- Output Power: 150W
- Load Regulation: CV≤0.01% + 5mV, CC≤0.1% + 10mA
- Voltage Accuracy= (25 ℃ ± 5 ℃) < 0.5% + 20mV
- Current Accuracy: (25℃±5℃)<0.5%+10mA
- Ripple And Noise: ≤2mVrms
- Output Editing Resolution: CV: 10mV (typical), CC: 1mA (typical)
- Reliability: MTBF (e): 0002000 hours
- Display Mode: LED Voltage and Current Dual Display
- Overload Protection: Yes
- Color: White and Gray
- Size: 105 x 165 x 249
- Weight:4kg
- Accessory: Power Cord, Output Cables
Where are DC Voltage and Direct Current Used?
It is used to charge suitable types of batteries, devices such as laptops and mobile phones and for instant operation needs.
