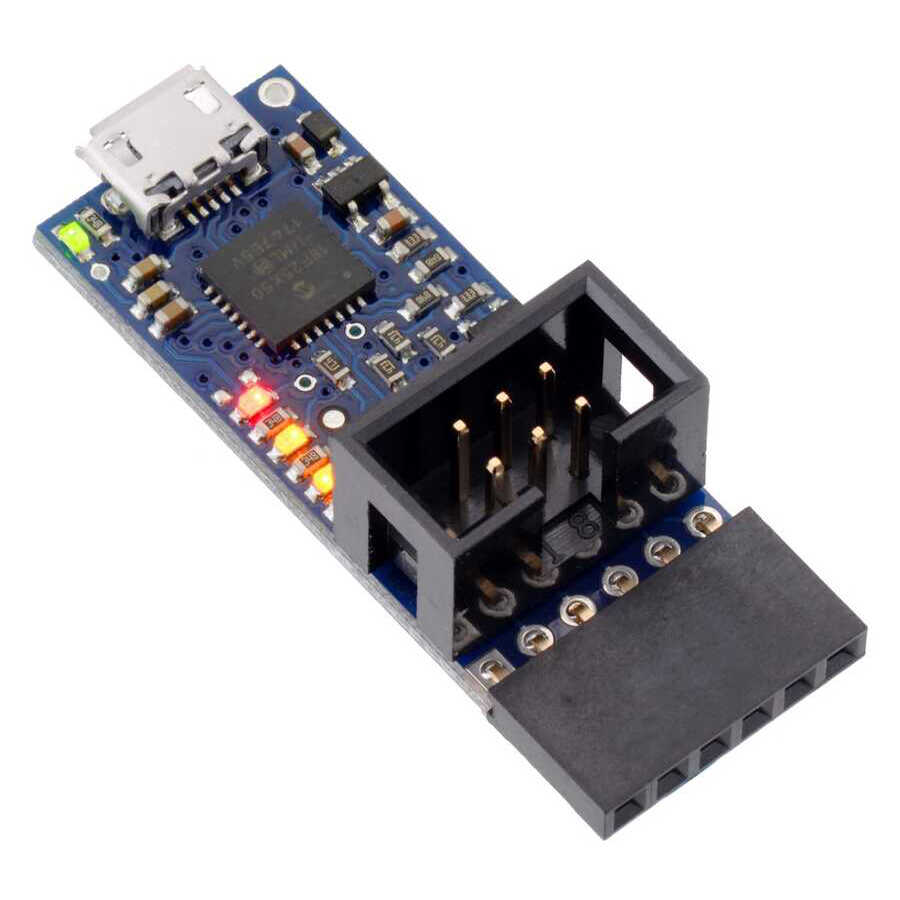

This in-system programmer can be used to program AVR microcontrollers and AVR-based controller boards, such as our Orangutan robot controllers and the 3pi robot. The programmer emulates an STK500 on a virtual serial port, making it compatible with standard AVR programming software, and it supports devices running at either 3.3 V or 5 V. The programmer also features a TTL-level serial port, enabling general-purpose serial communication for debugging or programming microcontrollers with a serial bootloader. An ISP cable and a 1×6 double-sided male header are included with the fully-assembled programmer.

Features and specifications

  • Connects to a computer through USB via aUSB A to Micro-B cable (not included)
  • Emulates an STK500 programmer through virtual COM port interface
  • Works with standard AVR programming software, including Atmel Studio, AVRDUDE, and the Arduino IDE
  • Configuration software available for Windows, Mac OS X, and Linux
  • Supports both 3.3 V and 5 V devices; can automatically switch operating voltage based on detected target VCC
  • Can optionally power the target at 3.3 V or 5 V in low-power systems
  • USB-to-TTL serial adapter functionality for general-purpose serial communication
  • Provides a 100 kHz clock output, which can be useful for reviving misconfigured AVRs
  • All I/O pins are protected with 470 Ω resistors

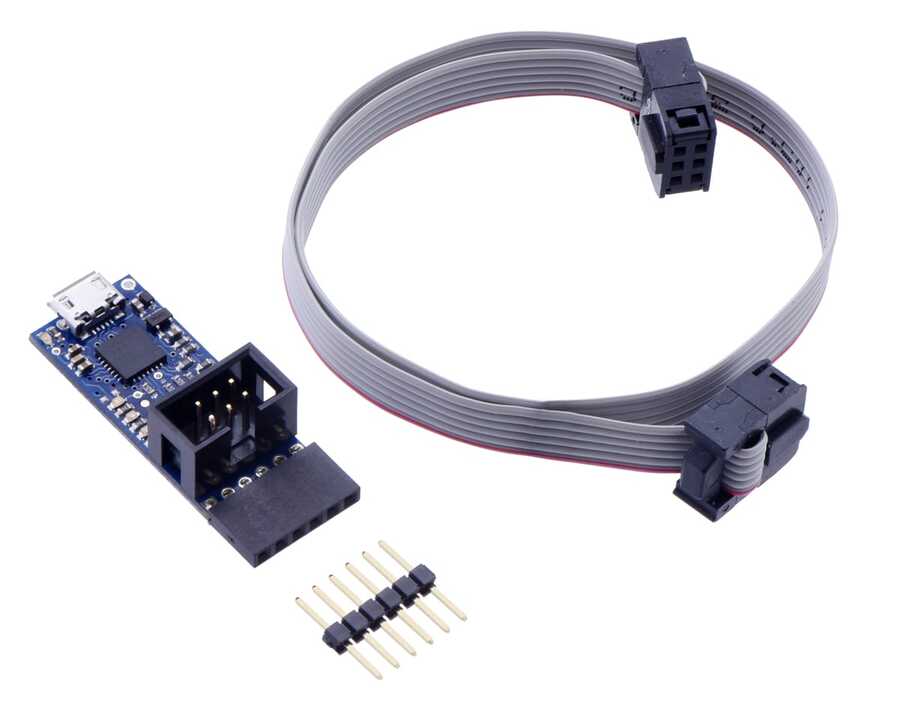

  • 6-pin ISP cableand a 1×6 double-sided male header included
