VL6180X Time-of-Flight Distance Sensor

Time-of-Flight Distance Sensor emits pulses of infrared laser light and precisely times how long they take to reach the nearest object and reflect back to the sensor.

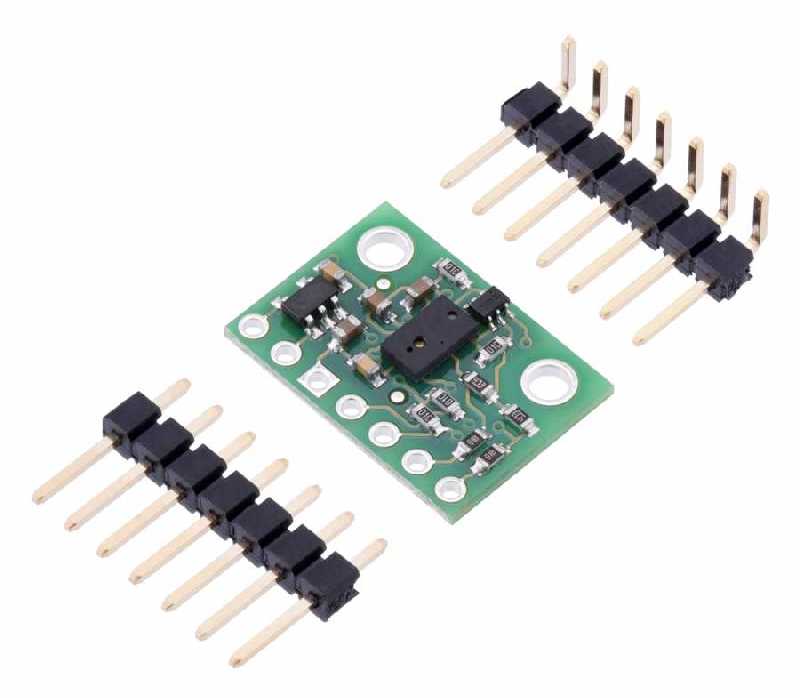

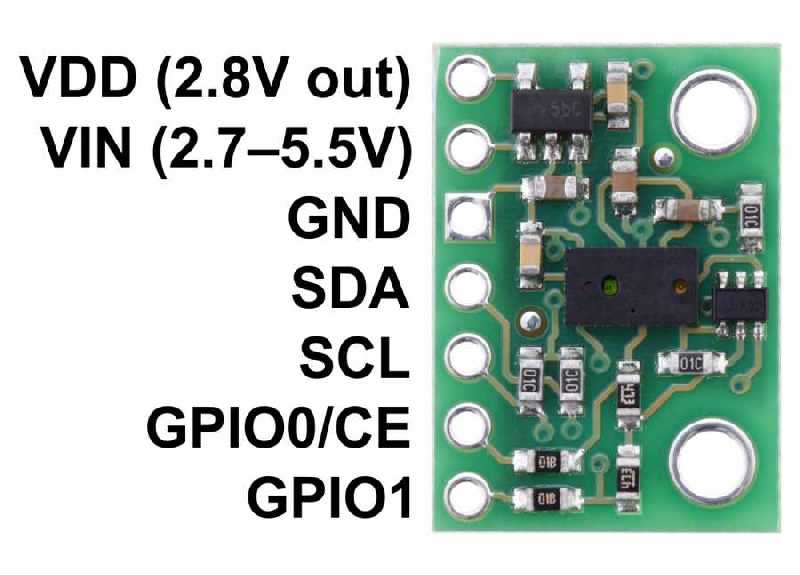

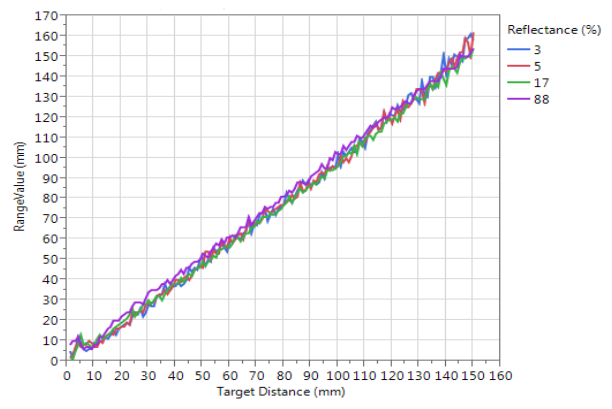

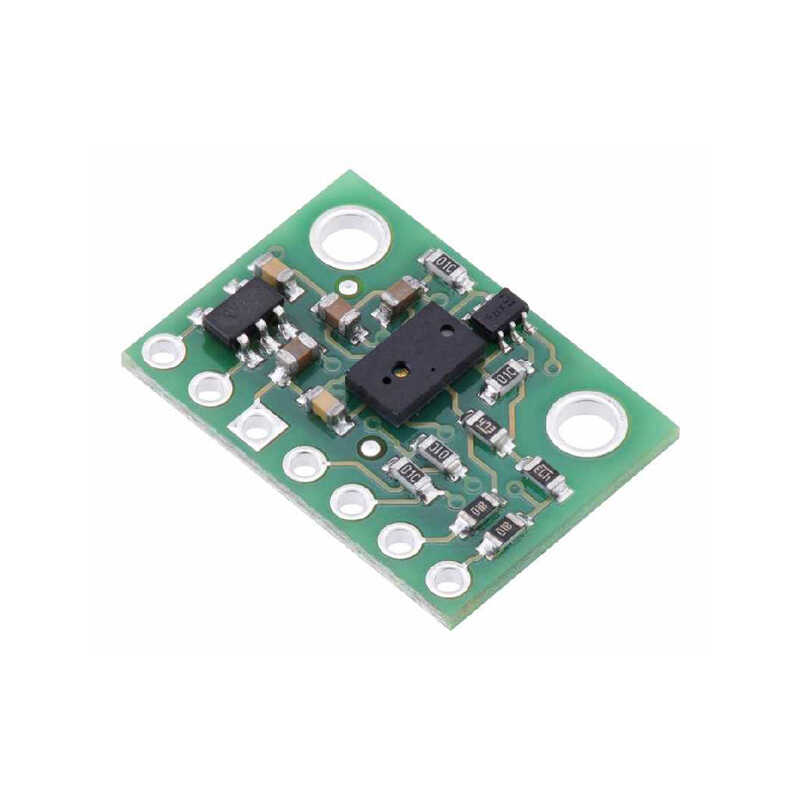

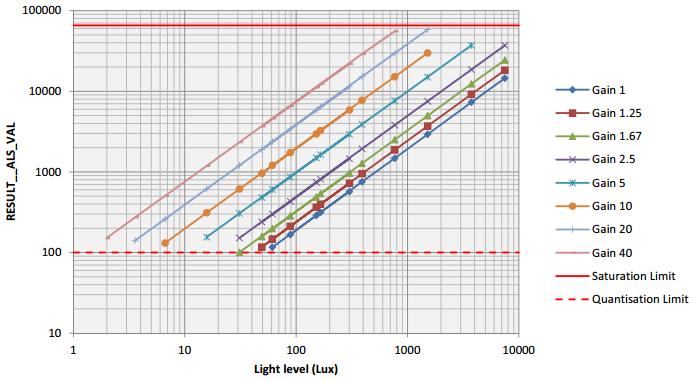

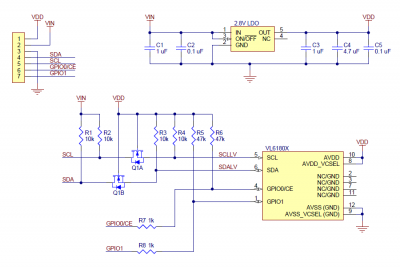

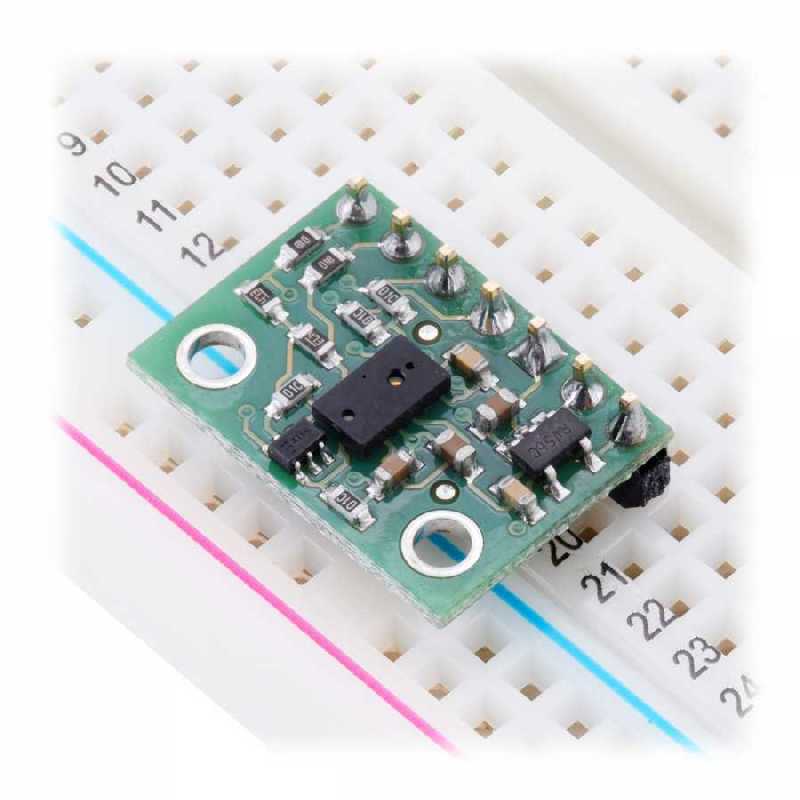

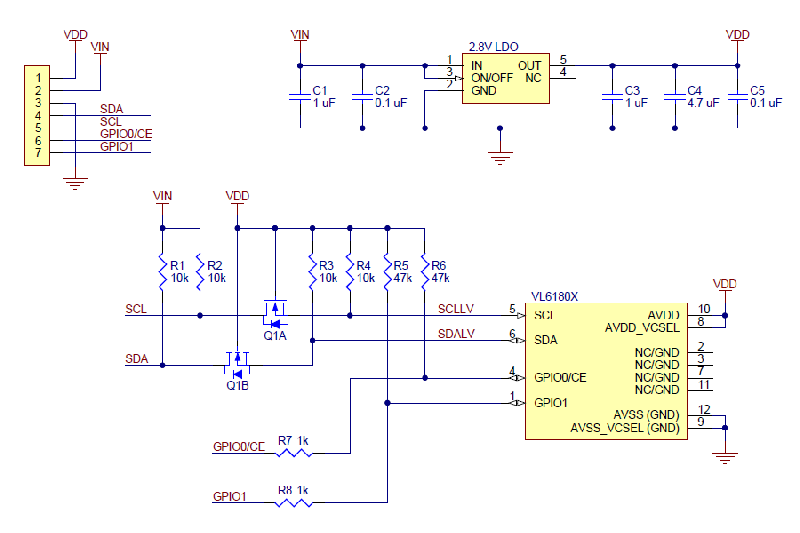

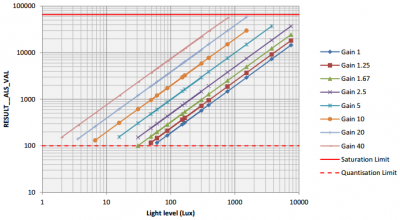

This sensor is a carrier/breakout board for ST’s VL6180X proximity and ambient light sensor, which measures distance with 1 mm resolution over a detection range of 0 cm to 10 cm or greater. The VL6180X uses time-of-flight measurements of infrared pulses to determine the range to a target object, allowing it to give accurate results independent of the target’s color and surface. Distance and ambient light level measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.7 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.
