XL4005 DC-DC Adjustable Step-Down Regulator Module

Brand
Robotistan
Product Code
20052
Kart İşlevi
Voltaj Regülatör Kartı
Bağlantı Noktası
Pin
Çalışma Gerilimi
1.25-32V/DC
Çalışma Akımı
5A
Fiyat
: 45.19 TL + VAT
KDV Dahil Fiyat
: 54.23 TL

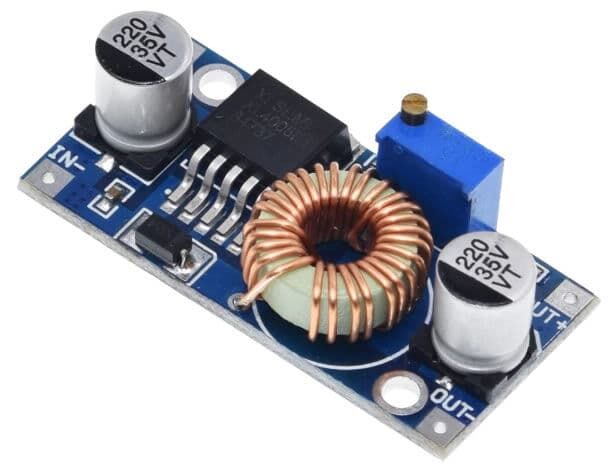

XL4005 DC-DC Adjustable Step-Down Regulator Module

The XL4005 DC-DC Adjustable Step-Down Regulator Module is a step-down module with high efficiency and low ripple. It is a module that can gradually adjust the input voltage and output voltage. The input voltage is 5-32V/DC and the output voltage is obtained by reducing the voltage between 1.25-32V/DC thanks to the trimpot on the board. Also, this product has overheat protection and short circuit protection feature.

Click to View All Voltage Reducer Models.

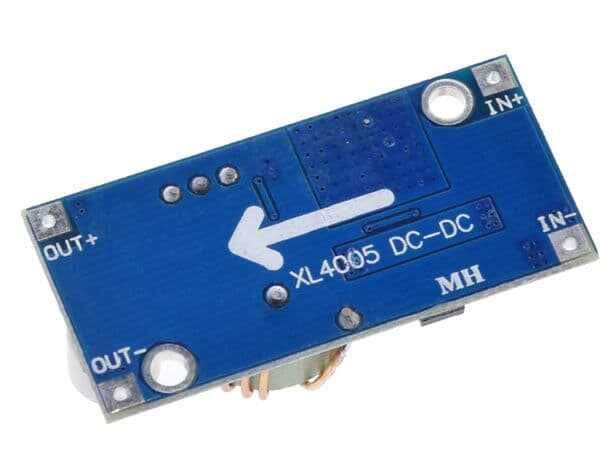

In applications to be made with this product, the input voltage must always be higher than the output voltage. “IN+” and “IN-” are voltage input pins while “OUT+” and “OUT-” are voltage output pins. “IN+” means positive supply input, “IN-” means ground, “OUT+” means positive output voltage and “OUT-” means ground output on the board. There is a blue trimpot on the module. You can adjust the voltage value with this trimpot.



XL4005 DC-DC Adjustable Step-Down Regulator Technical Specifications:

  • Model: XL4005
  • Input Voltage: 5-32V/DC
  • Output Voltage: 1.25-32V/DC
  • Current: 5A (Max.)
  • Output Power: 75W
  • Working Frequency: 180KHz
  • Conversion Efficiency: Up to 96%
  • Width: 44mm
  • Length: 21mm
  • Height: 12mm

XL4005 DC-DC Adjustable Step-Down Regulator Package Contents:

  • 1 x XL4005 DC-DC Adjustable Step-Down Regulator
