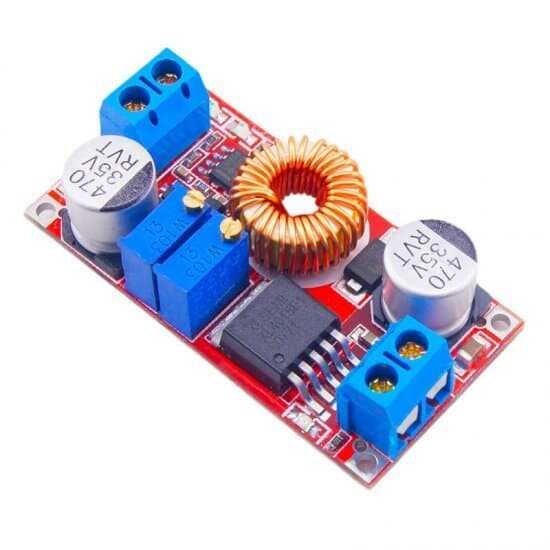

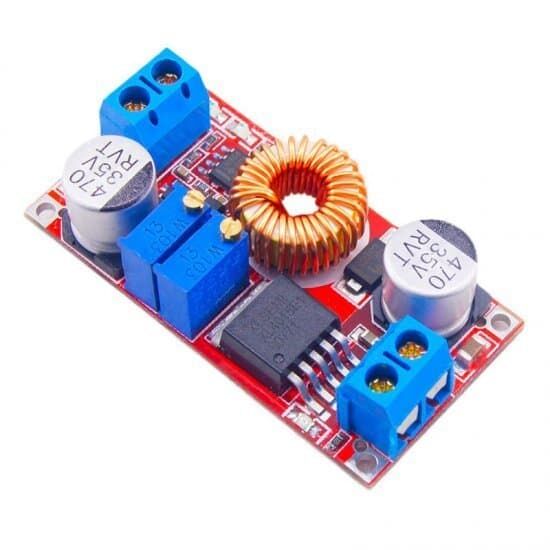

XL4015 Current and Voltage Regulated Lipo Charge Module

XL4015 Current and Voltage Regulated Lipo Charger Module is a charge module designed for you to charge Lithium battery types (Nickel-Cadmium, Metal) with different voltage values, energies produced from solar panels and wind turbines. This module, which you can use as a DC-DC converter, has the advantage of minimum ripple while having high power and maximum efficiency. Thanks to the potentiometers on it, you can adjust the output voltage to the levels you want. It has over-current, short-circuit and over-temperature protection. You can use this module as a constant current led driver in high power power leds. With the indicator LEDs on it, it shows which mode the module is in and its charging status.

GND terminals on input and output are not common. Never short circuit !


2 (47).jpg (34 KB)

XL4015 Current and Voltage Regulated Lipo Charger Module Technical Specifications:

  • Input Voltage: 4-38V/DC
  • Output Voltage: 1.25-36V/DC (Adjustable)
  • Output Current: 5A (Adjustable)
  • Output Power: 75W (Max.)
  • Operating Frequency: 180kHz
  • Operating Temperature: -40C - +85C
  • Overcurrent Protection: YES
  • Short Circuit Protection: YES
  • Over Temperature Protection: YES
  • Width: 52mm
  • Length: 26mm
  • Height: 14mm
  • Screw Hole Diameter: 2mm
