C-MOD C2

Important Note: This product is sold for academic use. Before purchasing the product, you must fill out theEUI_form_for_Digilent form and send it to info@robotistan.com

• All C-MOD boards are compatible with free Xilinx WebPack tools.
• It can be designed easily as it is connected with C-MODs by using different CPLD devices.
• Once programmed CPLD designs are permanent.
• All avaible user's input/output signals reveals DIP pins.
• Only requires 3.3V supply voltage.
• Sufficient bypass capacitance in all CPLD voltage supply pins.

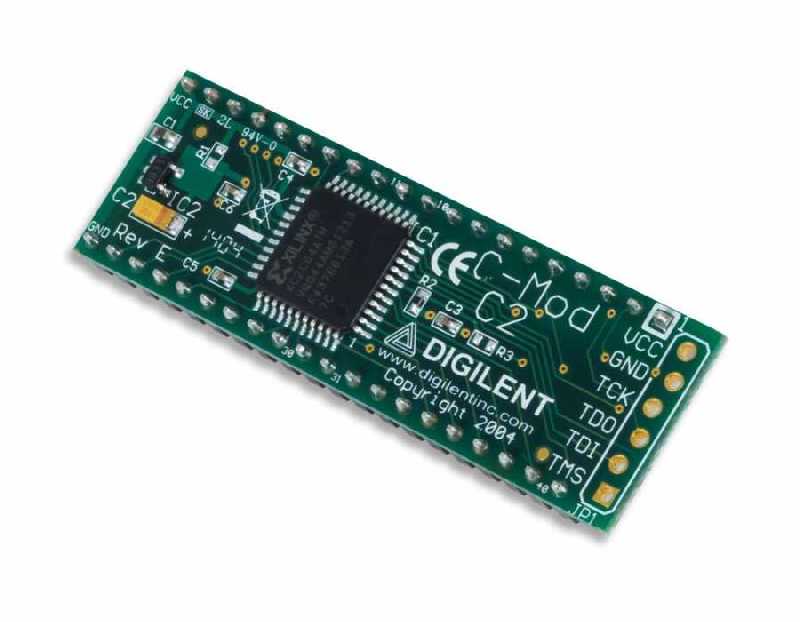

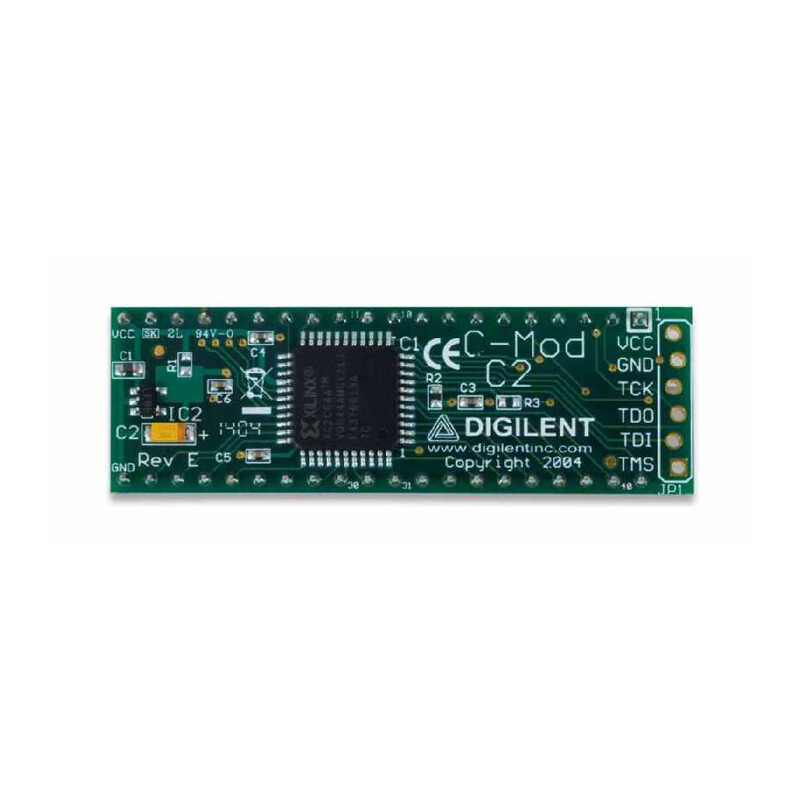

C-Mod boards combine one Xilinx CPLD in proper 600-mile, 40-pin DIP package, one JTAG programming port and power source circuits.
C-Mod boards are ideal compatible with breadboard and other prototype circuit designs.

Documents:

• User's Book
• Circuit Schematic
