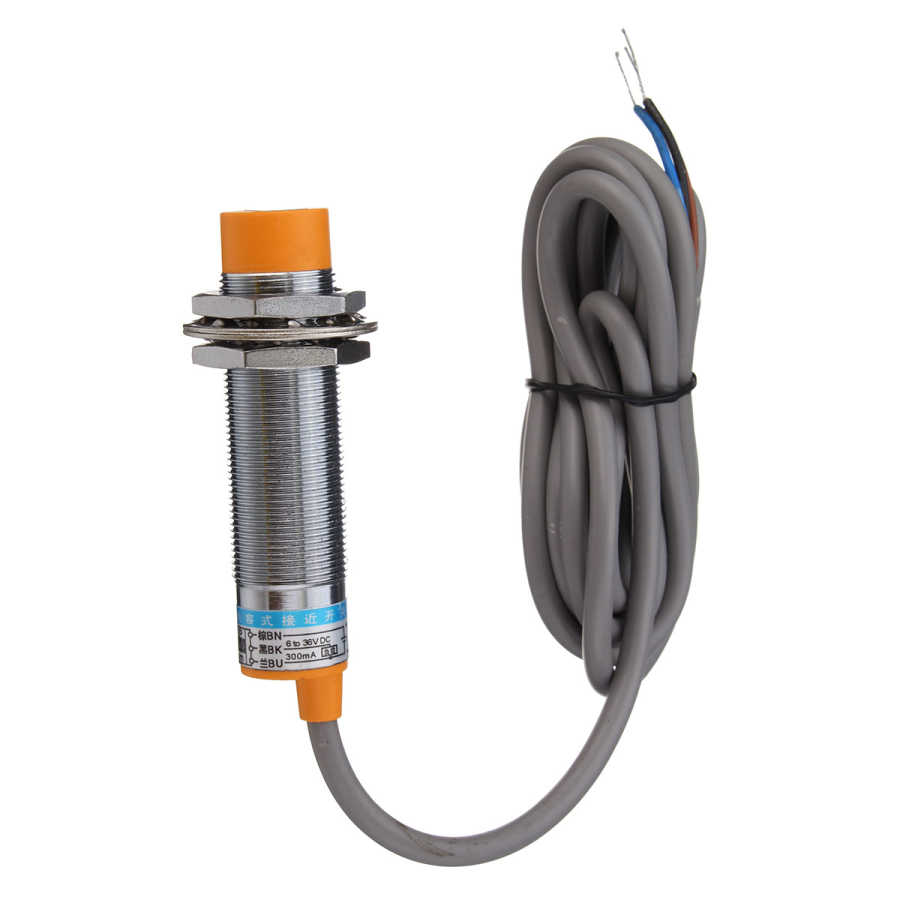

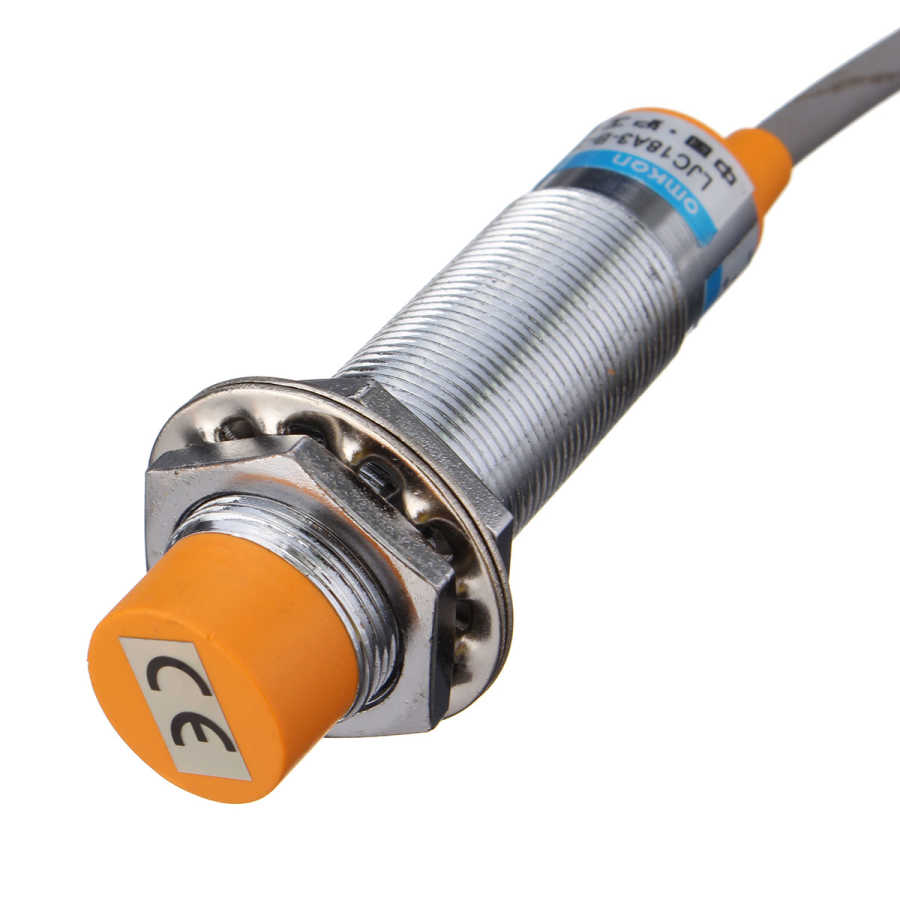

Capacitive PNP Proximity Sensor - LJC18A3-B-Z/BY

Capacitive PNP Proximity Sensör - LJC18A3-B-Z/BY

You can use capacitive sensors to detect metal and non-metal objects from 1-10mm distances. This industrial type sensor is M18 size.

LJC18A3-B-Z/BY Capacitive Sensor Specs:

• Body: Metal
• Model number: LJC18A3-B-Z/BY
• Sensor type: Capacitive proximity sensor
• Detectable materials: Metal and non-metal
• Operating voltage: DC 6-36V
• Operating current: 300mA
• Detecting distance: 1 - 10mm
• Response frequency: 100Hz
• Output type: PNP, normally open (NO)
• Operating temperature: -25°C ile +65°C arası
• Dimensions: 7.5 x 4cm (length x diameter)
• Cable length: 120cm
• Weight: 85gr

Connections:
