Waterproof DS12B20 Digital Heat Sensor

This sensor is the waterproof version of DS12B20 sensor. As it is a digital sensor, it is possible to collect data from deep levels in the water up to 1 meter with no lost of data. It is possible to take measurements from 9 bits to 12 bits via one wire interface. It is possible to use this sensor in various applications like, in-building, equipment, machine and liquid pool temperature measurings.

Features:

• Operating Voltage: 3 V to 5 V
• Measuring precision: +/- 0.5º C
• Measuring range: -10º C to 80º C
• 9 bits to 12 bits adjustable resolution
• Just 1 digital pin for one wire interface
• Temperature limit warning system
• Reaction time: shorter than 750 ms

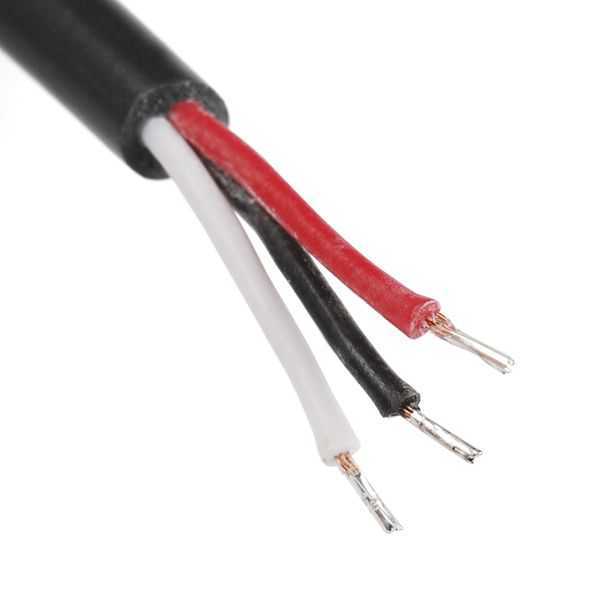

• 3 wire comm. interface:

-Red cable - VCC
-Black calbe - GND
-White cable - DATA

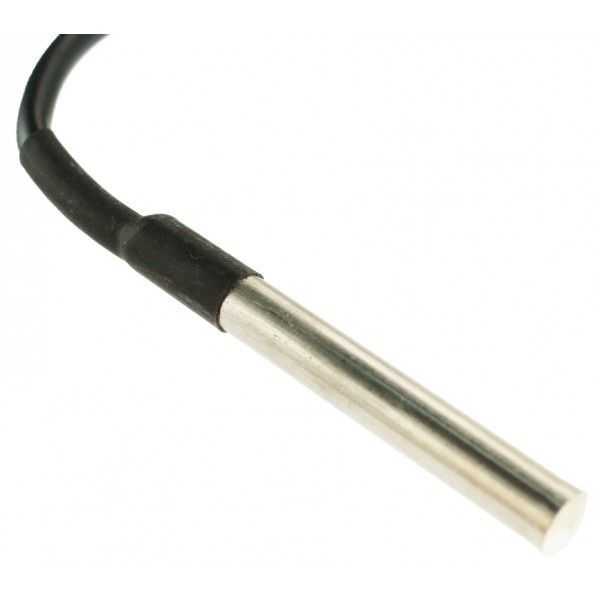

• 6mm diameter, 30 mm lenght stainless stell package

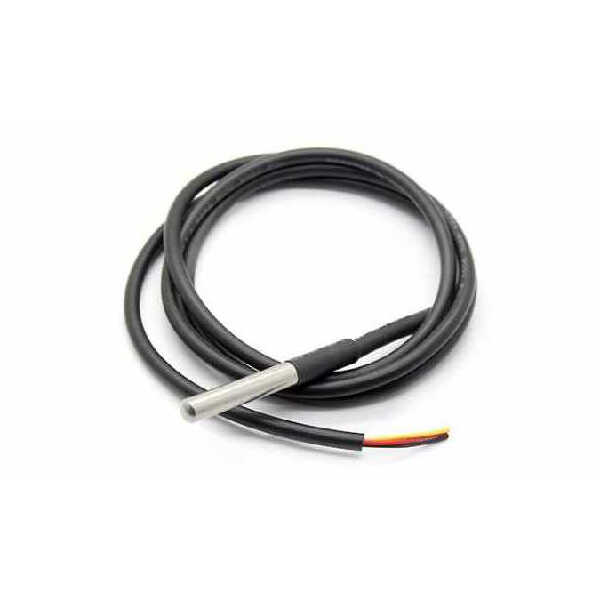

• 1 meter data cable
• Waterproof

Documents:

• Click here to see the example application on Arduino.
• Click here to see the datasheet of DS18B20 sensor.
