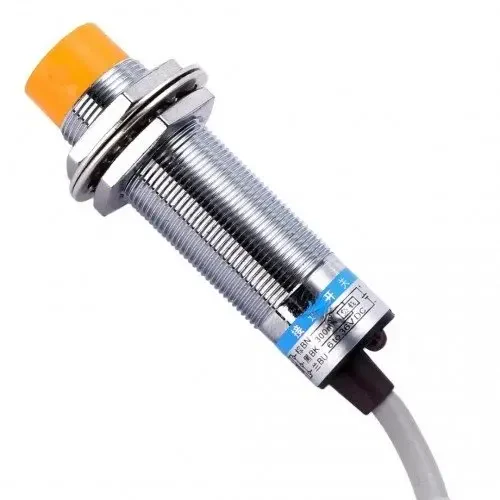

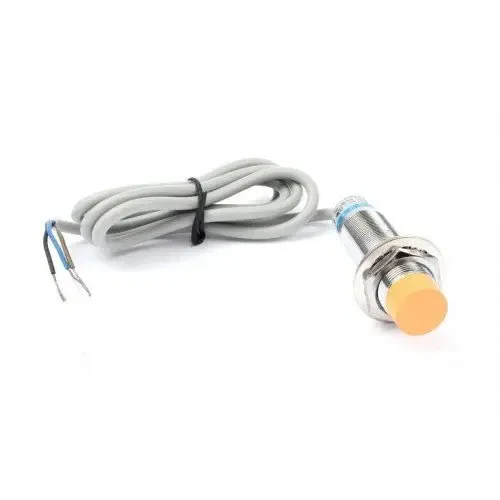

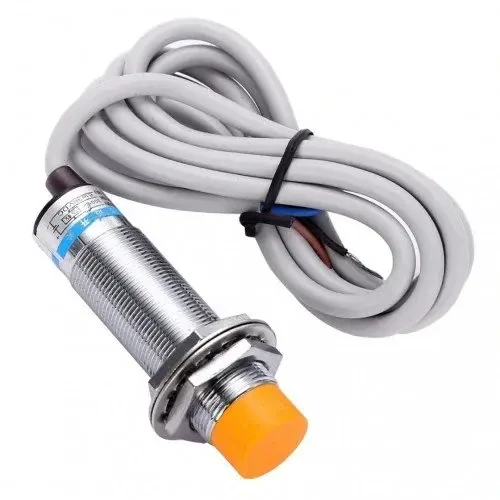

LJ8A3-2-Z/BY Inductive Distance Sensor

LJ8A3-2-Z/BY Inductive Distance Sensor

LJ8A3-2-Z/BY Inductive Distance Sensor, It is a sensor used in automation technologies for detection or contactless switching. It is a product that can detect metal or iron objects from 0 to 4 mm and gives a control signal output when it detects. There is a LED behind the sensor, so when a metal or iron object is detected, the LED starts to light up. It is used for various applications such as speed monitoring, limit operations, machines and 3D printers. In addition, since it is a PNP type sensor, the blue wire must be connected to the negative charge.

LJ8A3-2-Z/BY Inductive Distance Sensor Technical Specifications:

• Dimension: 6.1 x 2.0 cm
• Weight: 46g
• Sensor Diameter: 8mm
• Detection Distance: 4mm
• NO (Normally Open) Output
• Supply Voltage: DC 6 / 36V
• Output Current: 300mA
• Cable Length: 105 cm
• Response Frequency: 0.5 kHz
• Detected Object: Metal / Iron
• Output: PNP
• Cable: DC 3 Wire
• It has a detection LED and a detection indicator.
• Nickel Brass Housing
• Operating Temperature: - 25°C / 50°C
