D.I.Y Charger Module - 134N3P

D.I.Y Charger Module - 134N3P

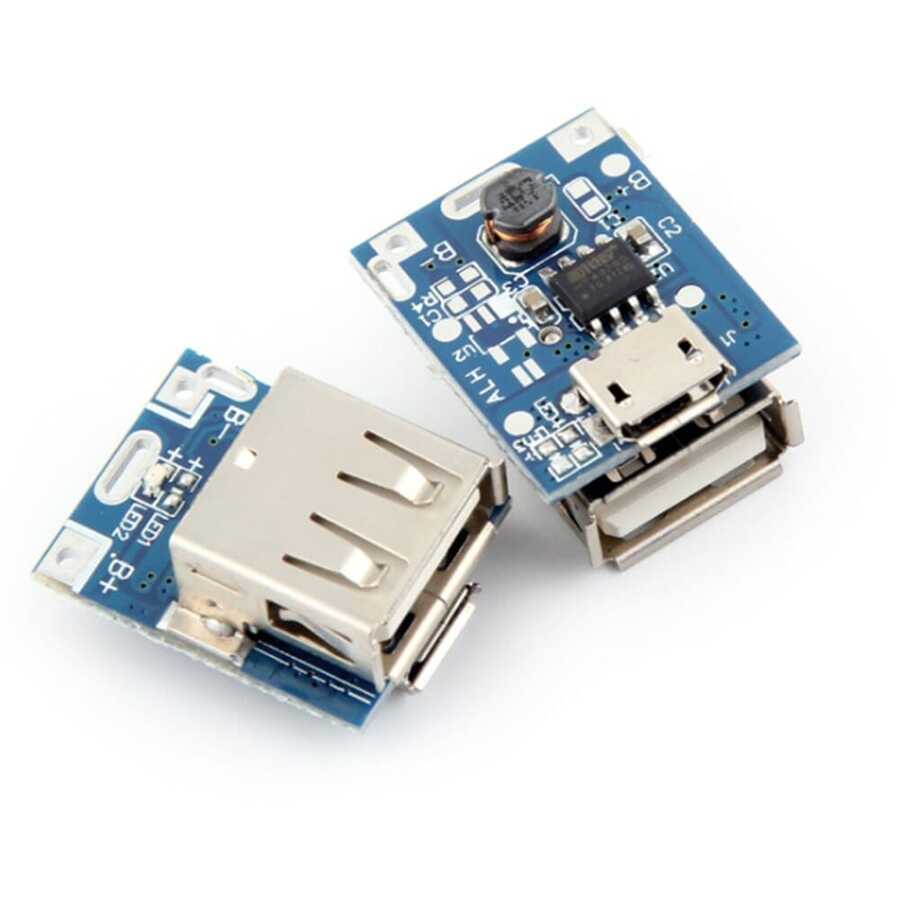

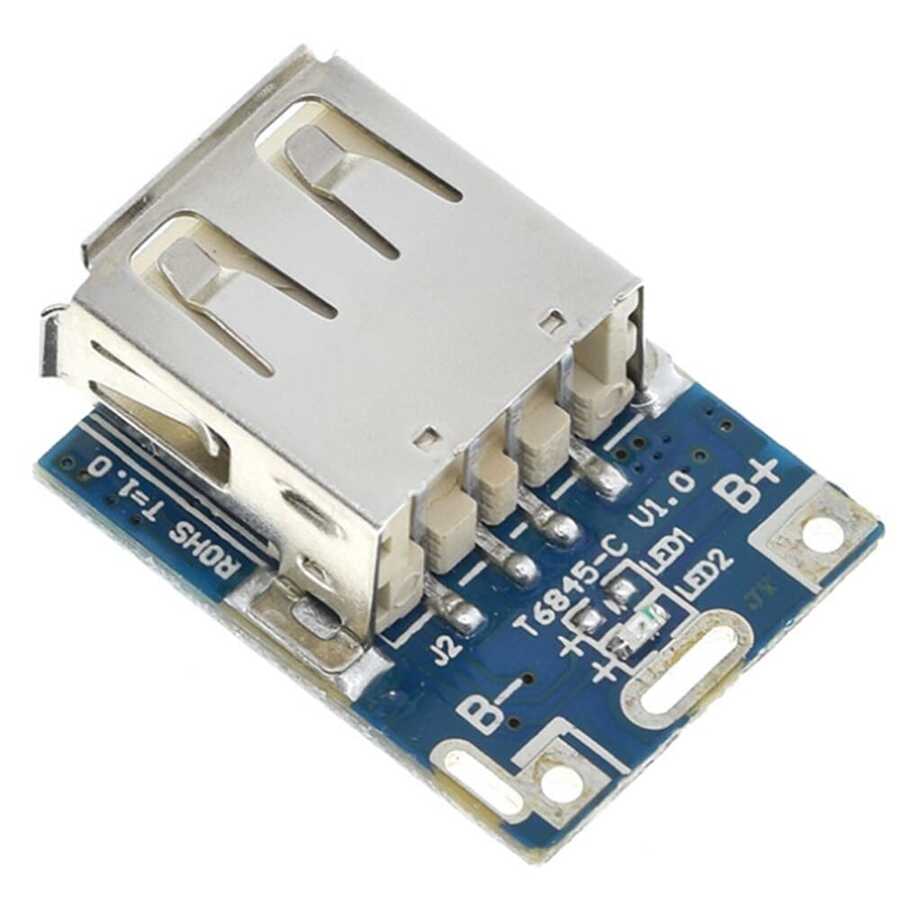

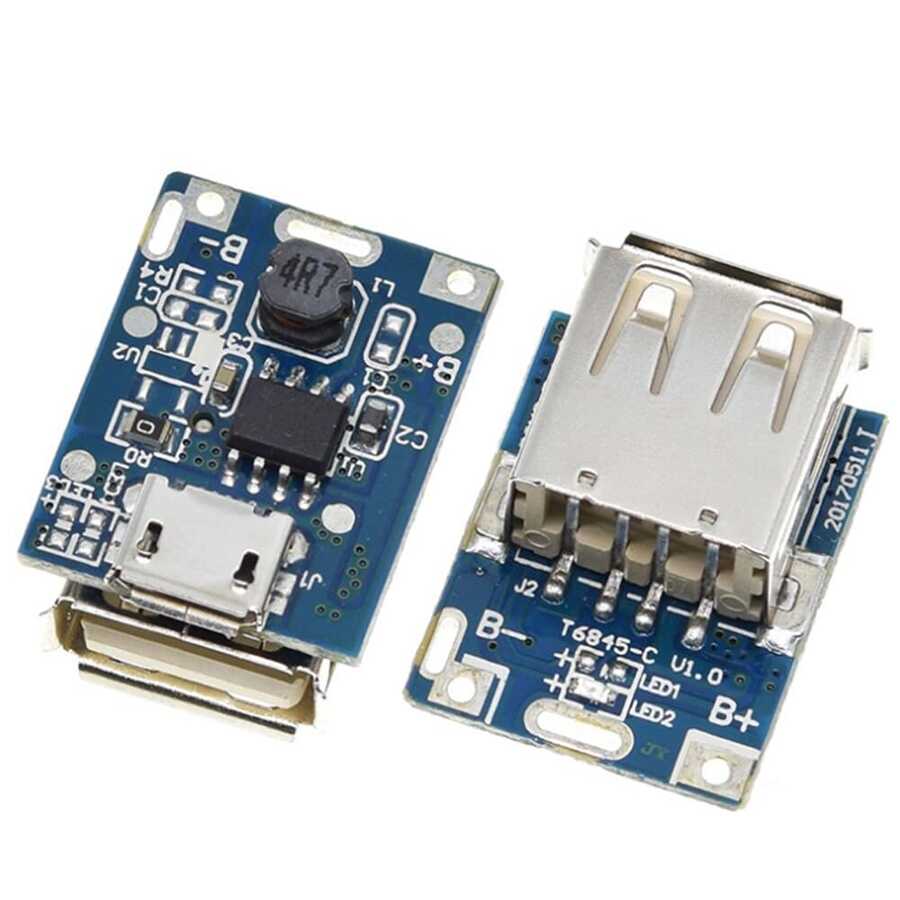

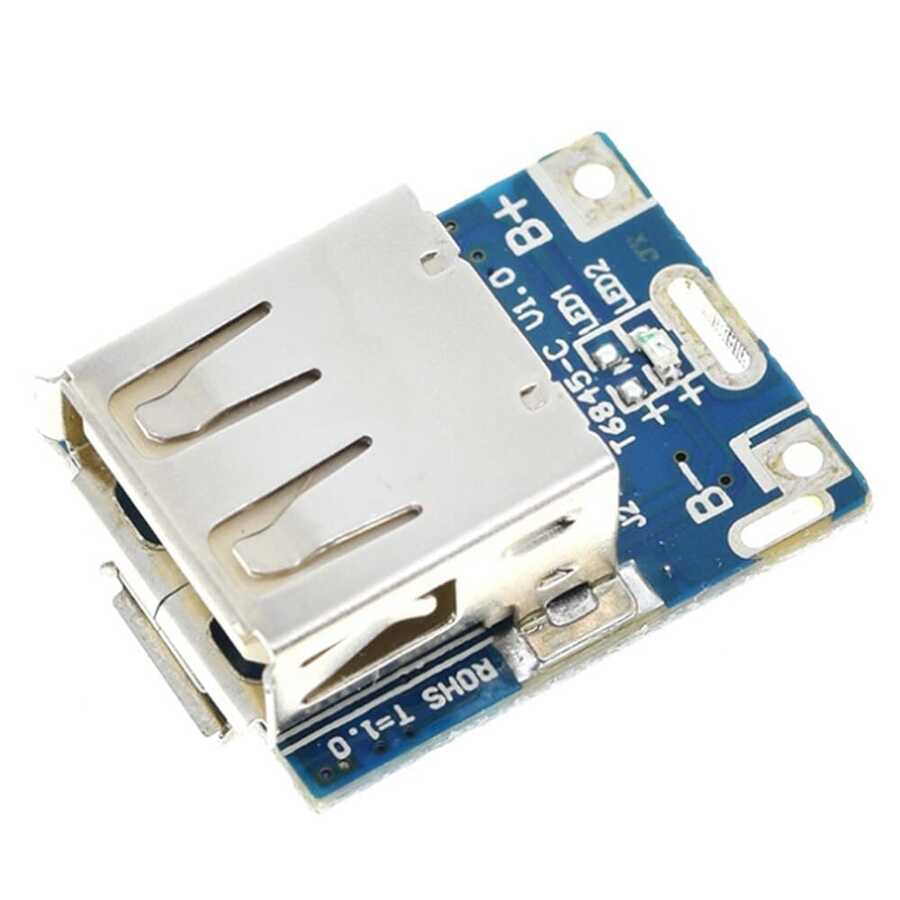

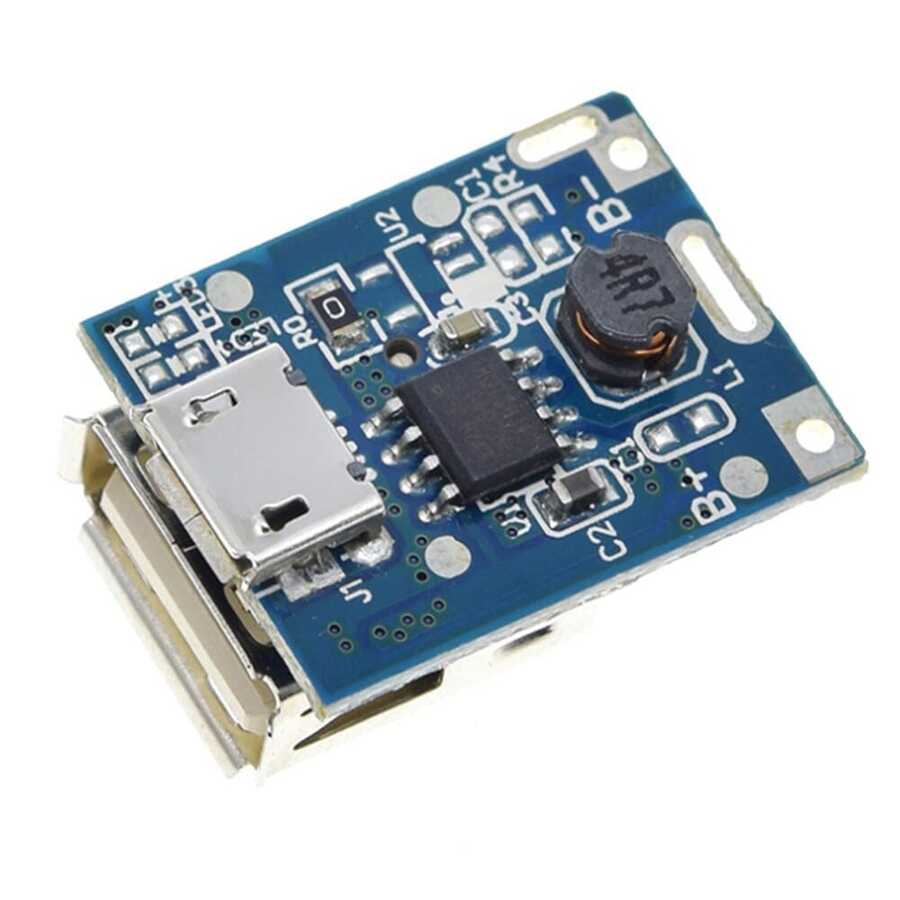

DIY Charger Module - 134N3P is a regulator board that is frequently used in do-it-yourself charger models. This board, which is very reliable and easy to use, has a lithium battery charge protection feature and intelligent over-temperature protection features. At the same time, this board has over-voltage, over-current, overload and short-circuit protections. While the connected battery is charging, the red warning LED on it flashes regularly, and when fully charged, the red warning LED lights up continuously.

You can click here to read our blog post about making your own portable charger.

DIY Charger Module Technical Specifications:

• Input Voltage: 3.7-5.5V/DC
• Output Voltage: 5V
• Charging Current: 1A (Max.)
• Output Current: 1A (Max.)
• Refill Efficiency: 85%
• Surge Protection: Yes
• Overcurrent Protection: Yes
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Width: 17mm
• Length:23mm
• Height: 12mm
