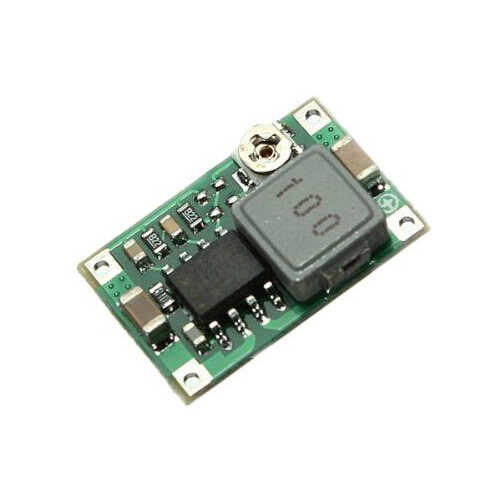

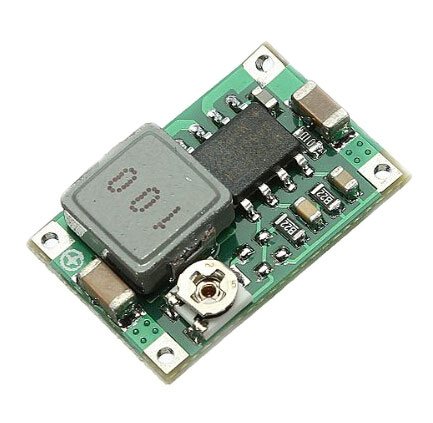

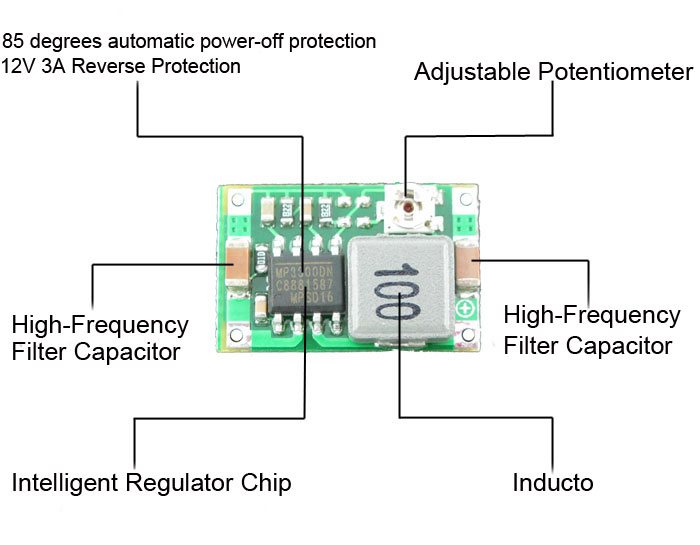

This DC-DC step-down voltage regulator board has a step-down switching regulator on it. The regulator can pass through current up to 2A on itself. It's input voltage range is 4.75-23V and you can get an output voltage adjustable between 1-17V via the mini potentiometer on the board. You can use this voltage regulator board in hobby and robotic projects.

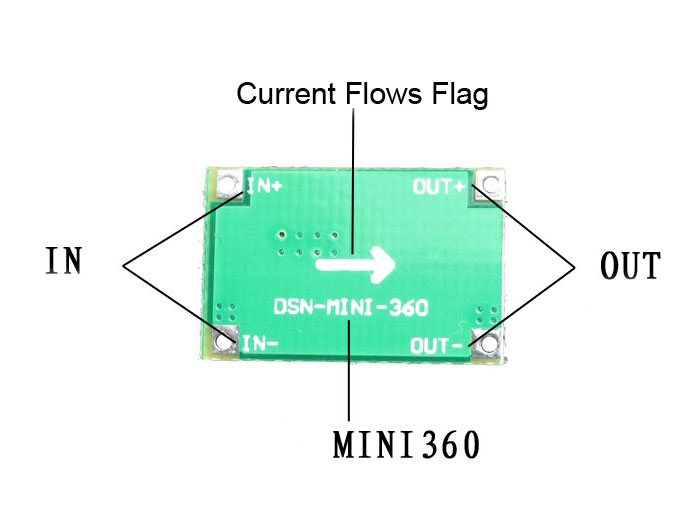

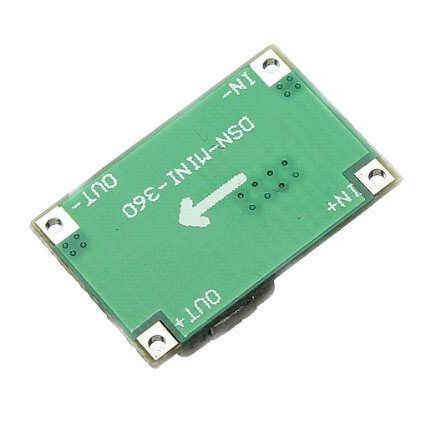

When using this board, the input voltage always must be higher than output voltage. IN+ is positive voltage input, IN- is GND input, OUT+ is positive voltage output, OUT- is GND output.
Features:
- Input Voltage: 4.75-23V
- Output Voltage: 1-17V
- Output Current: 2A
- PCB Size: 17x11x3.8mm
