128×32, 2.23 inch OLED Display LINE for Raspberry Pi

128×32, 2.23 inch OLED Display LINE for Raspberry Pi

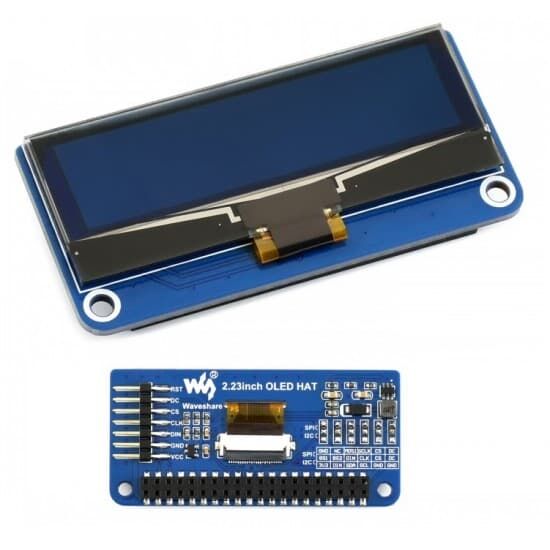

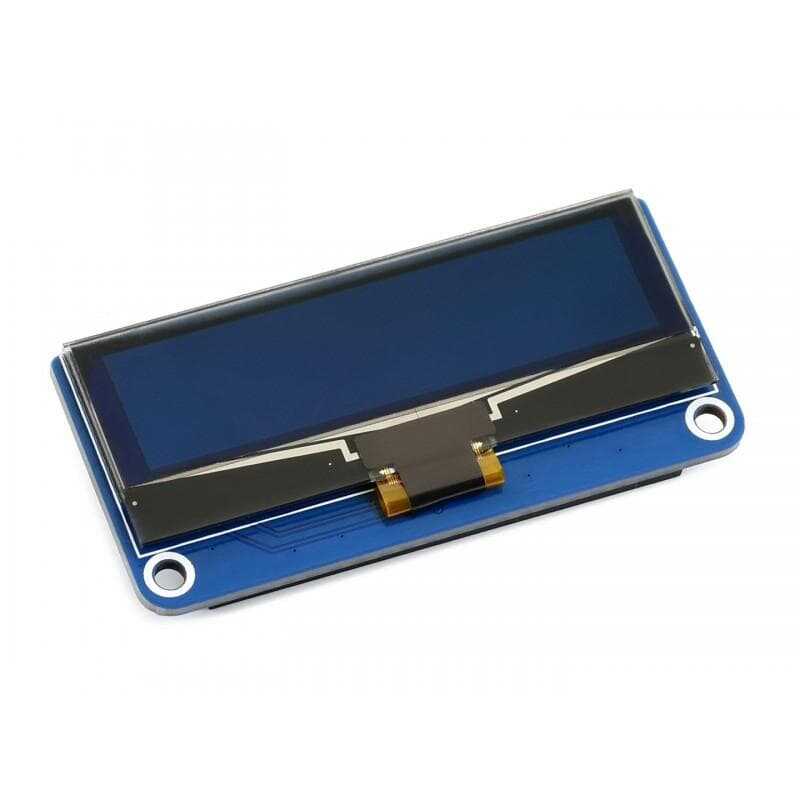

128×32, 2.23 inch OLED Display HAT for Raspberry Pi is an OLED Display Line for Raspberry Pi, 2.23 inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. If you are trying to add a control interface for your Raspberry Pi, the compact display will be the ideal choice.

OLED Display Technical Specifications:

• Standard Raspberry Pi 40PIN GPIO extension header,

• Raspberry Pi series cards support Jetson Nano.

• Control pins are available for motherboards such as Arduino/STM32.

• Optional interfaces: configured via SPI (default) or built-in resistor

• I2C. Interface: SPI / I2C

• Screen size: 2.23 inch diagonal

• Display color: white

• Resolution: 128×32

• Angle of view: >160°

• Power supply voltage: 3.3V/5V

• Drive: SSD1305

• Logic level: 3.3V

• Comes with development resources and manual (examples for Raspberry
• Pi/Jetson Nano/Arduino/STM32).

• Weight : 0.019kg
