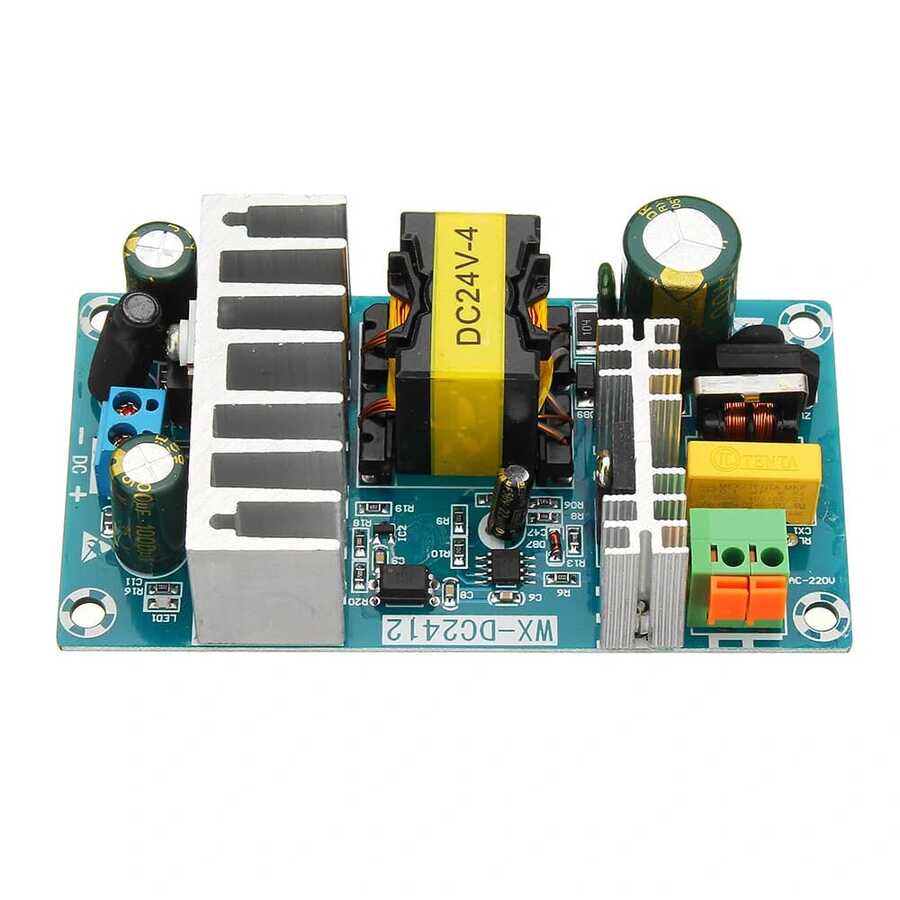

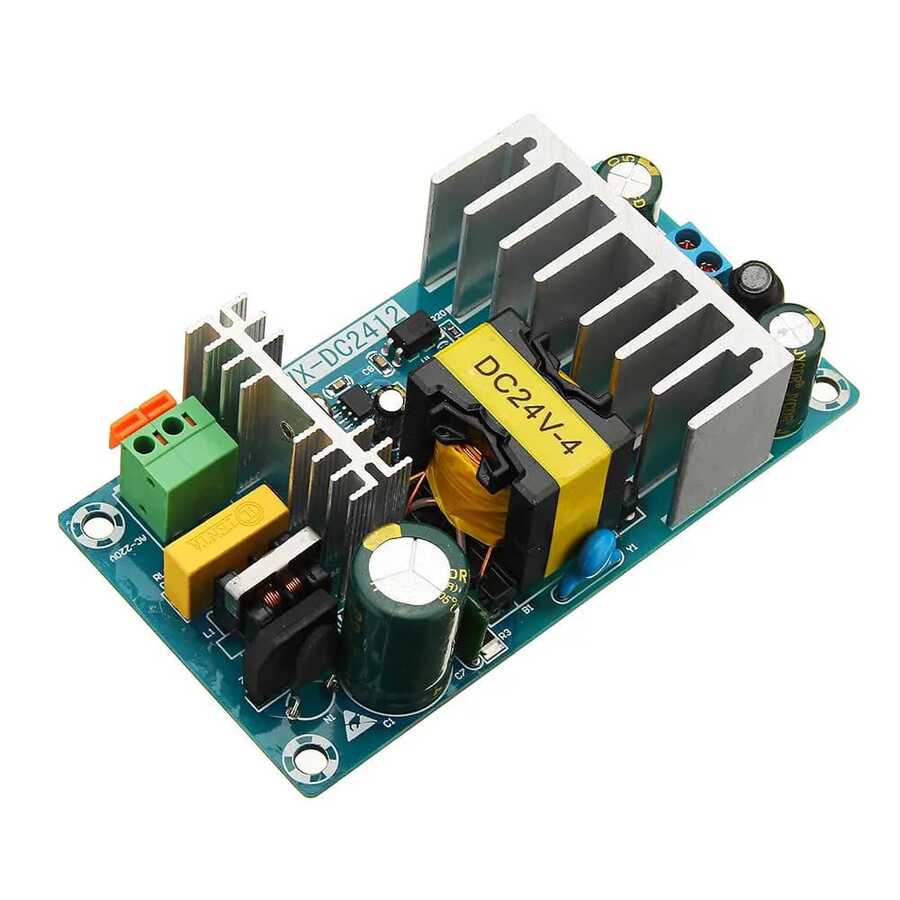

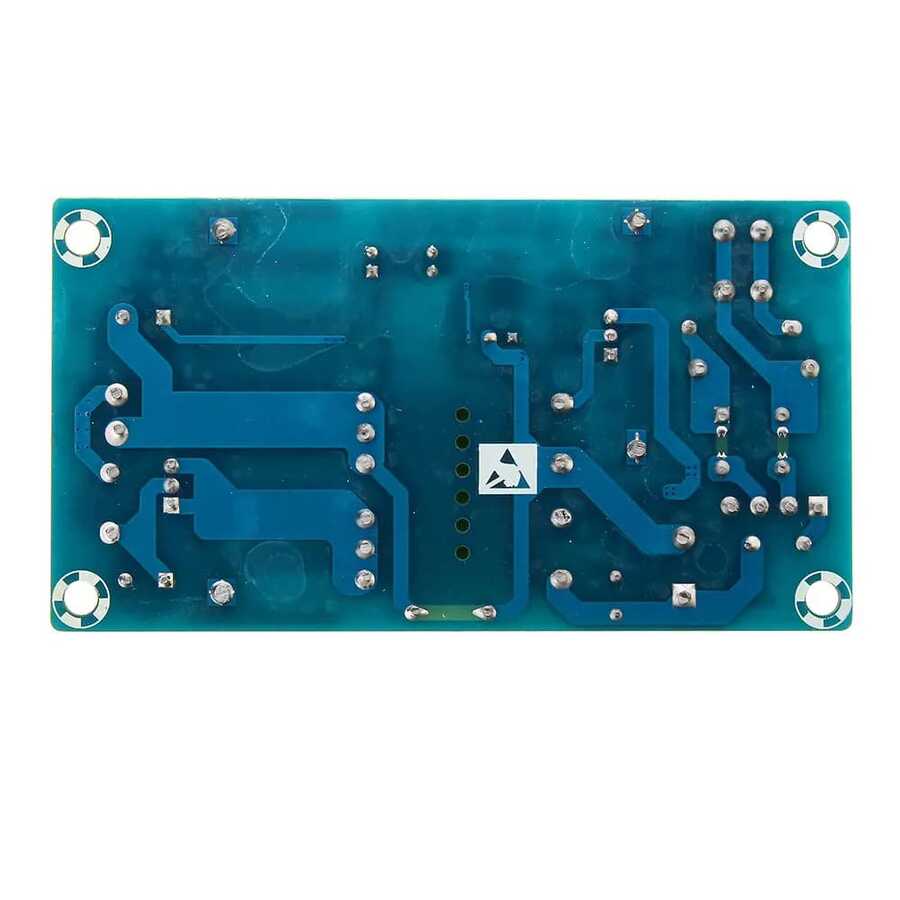

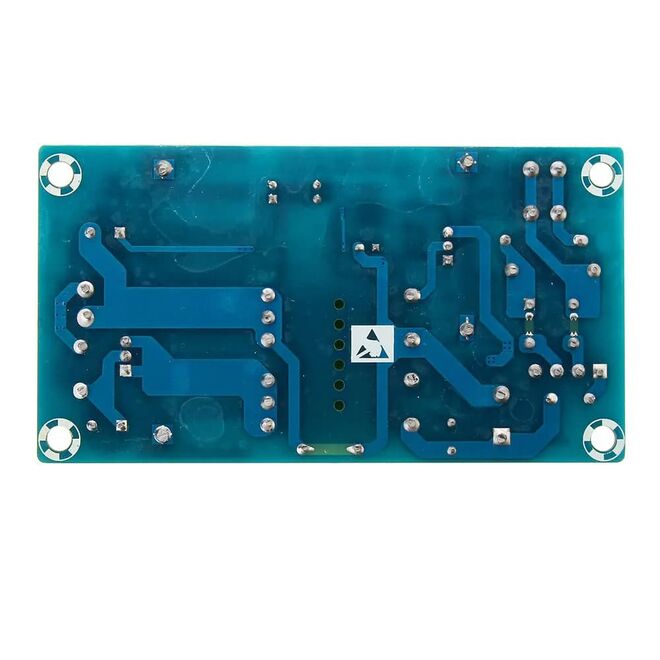

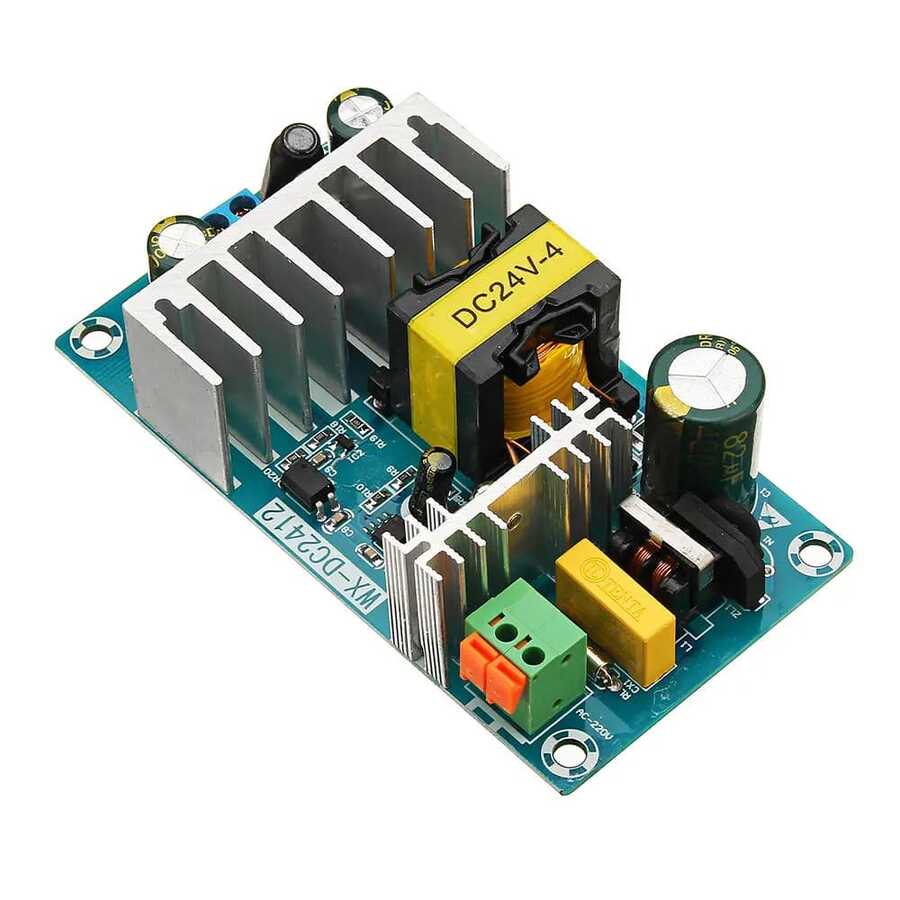

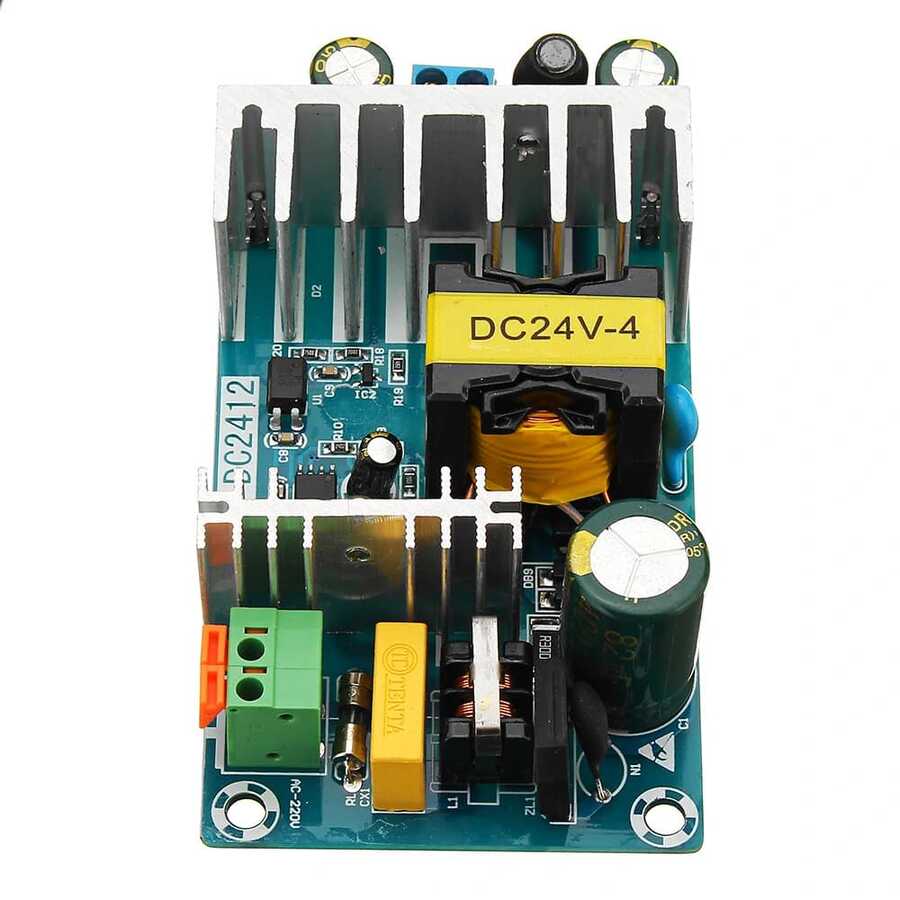

220V/AC to 24V/DC Switching Power Supply Board

220V/AC to 24V/DC Switching Power Supply Board

220V/AC to 24V/DC Power Supply Board is an electronic board that reduces the 220V/AC voltage applied to its input to 24V/DC voltage. Consisting of durable elements arranged on a solid and thick PCB, this board has easy use and a long service life. A continuous output of 24V/DC-6A can be obtained from the output of this board. In addition, this card has over-current, overload and short-circuit protections for user and environmental safety.

220V/AC to 24V/DC Switching Power Supply Board Technical Specifications:

• Model: WX-DC2412
• Input Voltage: 220V/AC
• Input Frequency: 50Hz
• Output Voltage: 24V/DC
• Output Current: 4-6A
• Output Power: 100W
• Overcurrent Protection: YES
• Overload Protection: YES
• Short Circuit Protection: YES
• Width: 170mm
• Length: 57mm
• Height: 28mm
