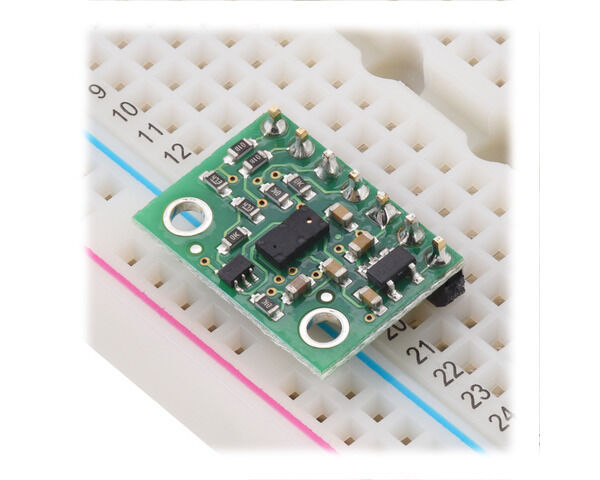

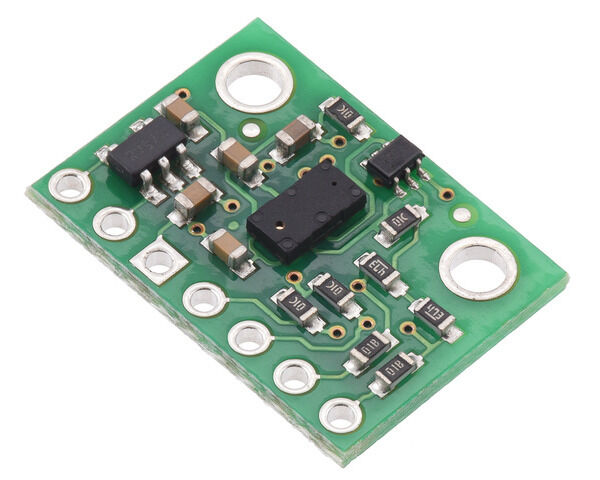

VL53L3CX Time-of-Flight Multi-Target Distance Sensor Carrier with Voltage Regulator, 500cm Max

VL53L3CX Time-of-Flight Multi-Target Distance Sensor Carrier with Voltage Regulator, 500cm Max

The VL53L3CX Module is a distance sensor for precise measurements up to 5 meters. Unlike ultrasonic sensors, 940nm laser VCSEL is used for measurement. In addition, this laser cannot be detected by the human eye. Measurement time and sensitivity may vary depending on the measurement mode to be used. Do not forget to consult the sensor manual and the datasheet files of the VL53L3CX sensor for detailed usage information.

Technical Specifications:

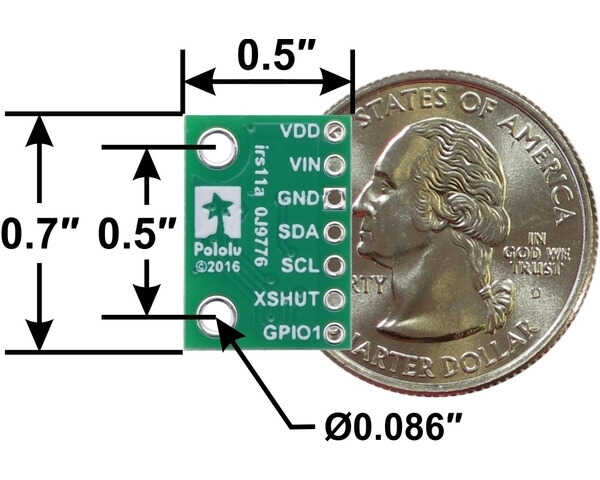

• Dimensions: 0.5″ × 0.7″ × 0.085″ (13 mm × 18 mm × 2 mm)

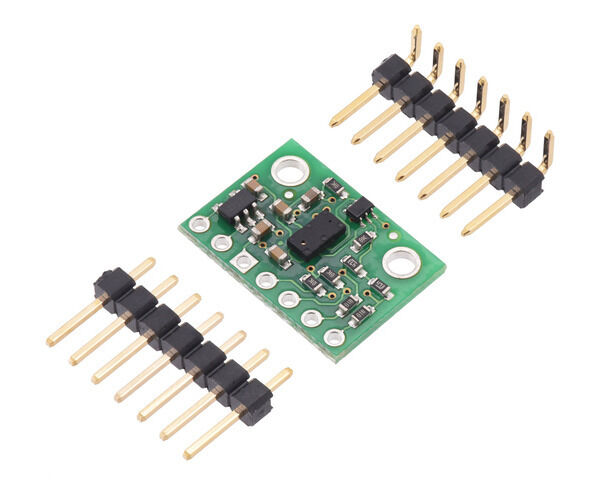

• Weight without header pins: 0.5 g (0.02 oz)
• Operating voltage: 2.6 V to 5.5 V
• Supply current: ~15 mA (typical average during active ranging with default settings)
• Peak current can reach 40 mA
• Maximum range: 5 m (16 ft)
• Resolution: 1 mm
• Minimum range: 10 mm (0.4 in)
• Emitter: 940 nm invisible Class 1 VCSEL (vertical cavity surface-emitting laser) – eye-safe
• Detector: SPAD (single photon avalanche diode) receiving array
• Typical full field of view (FoV): 25°
• Output format (I²C): histogram
